Note: If the speed and/or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the letters "iFIT" appear in the left dis-
play and that the time is not flashing in the dis-
play. In addition, make sure that the audio
cable is properly connected.
Follow your progress with the displays.
8
See step 5 on page 12.
When you are finished exercising, remove the
9
key from the console.
See step 8 on page 13.

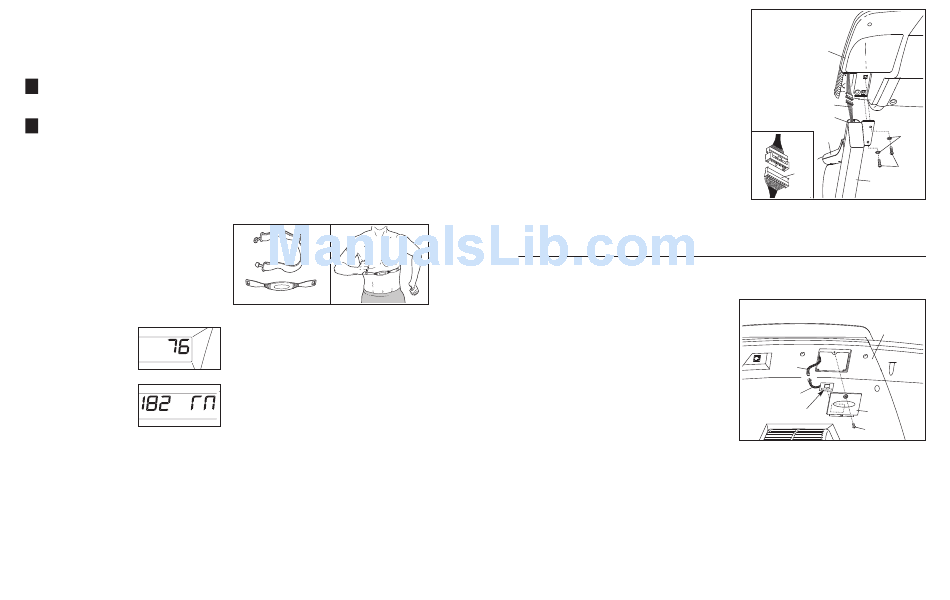

THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of kilometres that
the walking belt has moved. The information mode
also allows you to select kilometres or miles as the unit
of measurement and to turn on and turn off the demo
mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. Next,
release the Stop button. When the information mode is
selected, the following information will be shown in the
displays:
The left display will show the
total number of hours that
the treadmill has been used.
The right display will show
the total number of kilome-
tres or miles that the walking
belt has moved. In addition,
an "M" for metric kilometres
or an "E" for English miles
will appear in the right display. Press the Speed in-
crease button to change the unit of measurement if de-
sired.
IMPORTANT: If a "d" appears in the right display, the
console is in the "demo" mode. This mode is intended
to be used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the indicators in the displays will automati-
cally appear in a preset sequence, although the but-
tons on the console will not operate. If a "d" appears
when the information mode is selected, press the
Speed decrease button so "d" disappears.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper-
ation as it monitors your heart rate during your work-
outs. To purchase the optional chest pulse sensor,
call the telephone number on the front cover of
this manual.
20
8. With the help of another person, hold the console as-
sembly near the right Upright (96) and the left Upright
(not shown).
Connect the Wire Harness (118) to the wire harness in
the console assembly. Make sure to connect the con-
nectors properly (see the inset drawing); the con-
nectors should slide together easily and snap into
place. If the connectors do not slide together easily and
snap into place, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED PROP-
ERLY, THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON. Insert the excess wire
harness back into the right Handrail (108).
Set the console assembly on the right Upright (96) and the
left Upright (not shown). Thread two 1/4" x 1" Bolts (88)
with 1/4" Star Washers (87) into each side of the console
assembly. After you have started all four Bolts,
tighten them.
9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place. The large hex key is used to adjust the walking
belt (see page 24). To protect the floor or carpet, place a mat under the treadmill. If there is a sheet of clear
plastic on a decal, remove the plastic.
If you purchase the optional chest pulse sensor (see page 20), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
Remove the 3/4" Screw (33) and the Access Door
(105) from the Console Back (104).
2. Connect the wire on the receiver (A) to the indicated
wire extending from the Console Back (104). Remove
the paper from the adhesive pad on the back of the
receiver. Hold the receiver so the small cylinder is
near the lower edge of the receiver and is facing
the Console Back as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door
(105). Note: If there are two screws included with the
chest pulse sensor and two plastic posts on the inside
of the Access Door, attach the receiver to the plastic
posts on the Access Door with the two screws.
3. Make sure that no wires are pinched. Reattach the Access Door (105) with the 3/4" Screw (33). The other
wires included with the receiver may be discarded.
8
Console
Assembly
118
Right Handrail
108
88
118
96
104
Wire
A
Cylinder 105
33
