Locate the Reed Switch (47) and the Magnet (35) on the
left side of the Pulley (36). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure that
the gap between the Magnet and the Reed Switch is
about 3 mm (1/8 in.). If necessary, loosen the Screw
(52), move the Reed Switch slightly, and then retighten
the Screw. Next, reattach the Hood, making sure that the
Screws are in the same holes from which they were re-
moved (see step A). Then, run on the treadmill for a few
minutes to check for a correct speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 1mm
than 1.5 m (5 ft.).
b. If the walking belt is overtightened, treadmill performance
may decrease and the walking belt may be permanently
damaged. Remove the key and UNPLUG THE POWER
CORD. Using the included hex key, turn both rear roller
bolts counterclockwise 1/4 of a turn. When the walking
belt is properly tightened, you should be able to lift each
edge of the walking belt 7 to 10 cm (3 to 4 in.) off the
walking platform. Be careful to keep the walking belt cen-
tred. Then, plug in the power cord, insert the key, and run
the treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
c. If the walking belt still slows when walked on, see the front
cover of this manual.
PROBLEM: The walking belt is off-centre or slips when walked on
SOLUTION: a. If the walking belt is off-centre, first remove the key and
UNPLUG THE POWER CORD. If the walking belt has
shifted to the left, use the hex key to turn the left rear
roller bolt clockwise 1/2 of a turn; if the walking belt has
shifted to the right, turn the bolt counterclockwise 1/2 of
a turn. Be careful not to overtighten the walking belt.
Then, plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking belt
is centred.
b. If the walking belt slips when walked on, first remove the
key and UNPLUG THE POWER CORD. Using the hex
key, turn both rear roller bolts clockwise 1/4 of a turn.
When the walking belt is correctly tightened, you should
be able to lift each edge of the walking belt 7 to 10 cm (3
to 4 in.) off the walking platform. Be careful to keep the
walking belt centred. Then, plug in the power cord, insert
the key, and walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. Whilst the incline is changing, re-
move the key. After a few seconds, reinsert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
3mm
52
47
Top
View
2 (14-gauge) cord that is no longer
b
7–10 cm
Rear Roller Bolts
a
b
24

BEFORE YOU BEGIN

36
Thank you for selecting the revolutionary PROFORM
35
470 CX treadmill. The 470 CX treadmill offers an im-
pressive array of features to help you achieve your fit-
ness goals in the convenience and privacy of your
home. And when you're not exercising, the unique 470
CX treadmill can be folded up, requiring less than half
the floor space of conventional treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions, please call
Book Holder
Accessory Tray
Handrail
Handgrip Pulse Sensor
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
® the telephone number on the front cover of this man-
ual. To help us assist you, please note the product
model number and serial number before calling. The
model number of the treadmill is PETL49905.1. The
serial number can be found on a decal attached to the
treadmill (see the front cover of this manual for the lo-
cation).

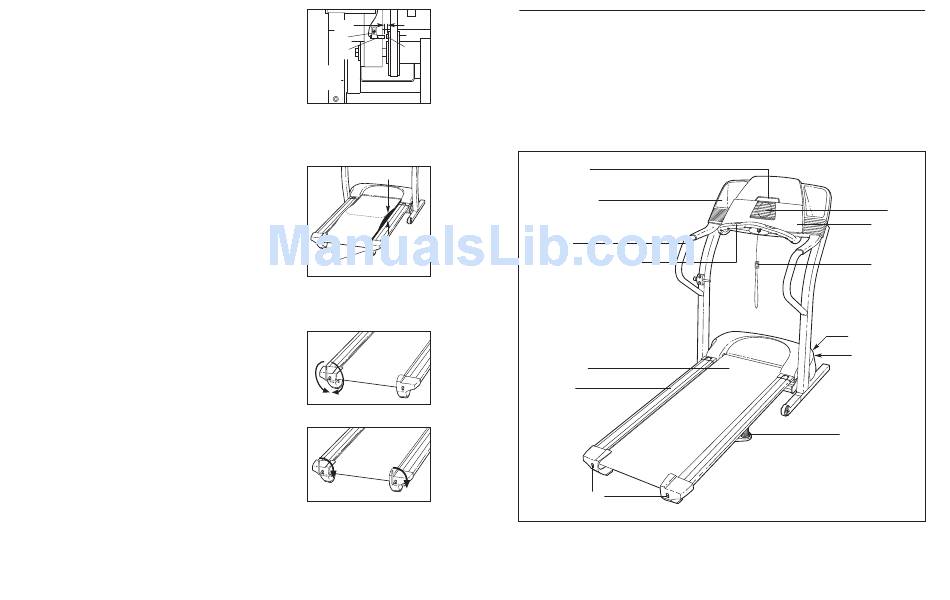

Before reading further, please review the drawing
below and familiarise yourself with the labelled parts.
