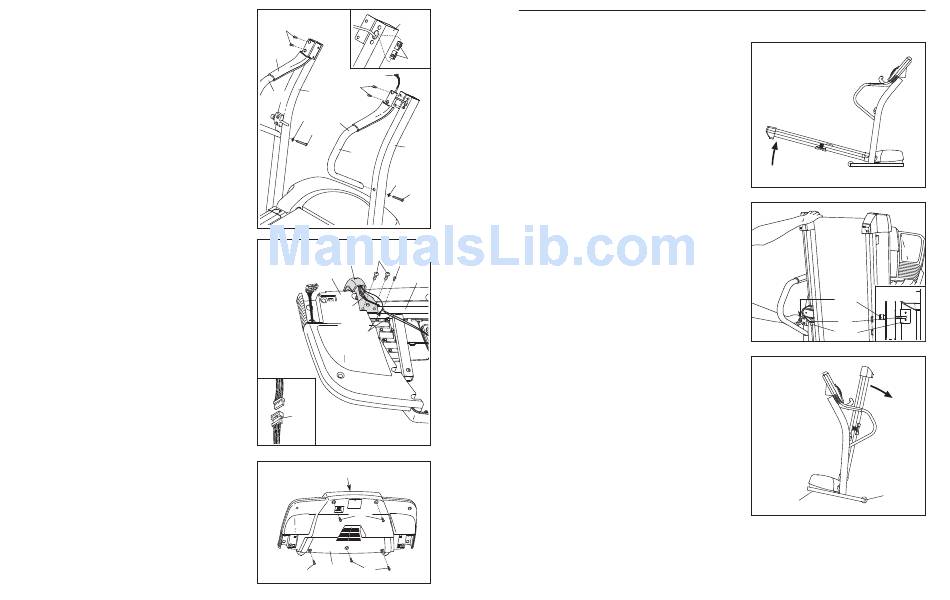

5. See the inset drawing. Make sure that there are two U-
nuts (112) in the upper end of each Upright (96). Note:
Extra U-nuts may be included.
Identify the right and left Handrails (108) (there is an
identification sticker on each Handrail). Hold the right
Handrail near the right Upright (96), and insert the Wire
Harness (118) into the large hole in the right Handrail
and out of the upper end as shown.
Next, hold the right Handrail (108) against the right Upright
(96). Tighten a 5/16" x 3 1/2" Bolt (121), with a 5/16"
Washer (128), three to four turns into the right Upright
and the lower end of the right Handrail. Then, tighten two
5/16" x 1" Bolts (113) into the upper end of the right
Handrail and the right Upright. Be careful not to drop
the Bolts into the Handrail. If necessary, raise or lower
the Handrail to thread the 5/16" x 1" Bolts into the
Upright. Firmly tighten all three Bolts.
Attach the left Handrail (108) to the left Upright (96) as
described above. Note: There is not a wire harness in the
left Upright.
6. Turn the Console (101) upside-down; be careful not to
scratch the Console. Remove the bands and the
Console Back (104) (see drawing 7) from the Console. If
the four Pulse Bar Screws (76) (only two are shown) are
in the Console Frame (80), remove them.
Hold the ends of the Pulse Bar (77) against the Console
Frame (80) as shown. Connect the pulse wire in the
Console (101) to the pulse wire in the Pulse Bar (see the
inset drawing). The connectors should slide together
easily and snap into place. If the connectors do not
slide together easily and snap into place, turn one con-
nector and try again to connect them. Attach the Pulse
Bar to the Console Frame with the four Pulse Bar Screws
(76). Firmly tighten the Pulse Bar Screws. Be careful
not to damage the wires.
Attach the end of each ground wire to the Console Frame
(80) with a 1/2" Ground Screw (52). Note: There are no
wires on the other side of the Pulse Bar (77).
7. Attach the Console Back (104) to the console assembly
with five 3/4" Screws (33). Be careful not to damage
any wires.
5
119
113
Left
118
113
96
108
128
108
121
Right
128
6
76
77
52
101
Pulse
Wire
Ground
Wires
Pulse
Wire
7
Console Assembly
33
104
33
33
8

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE
112
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
CAUTION: You must be able to safely lift 20 kg (45 lbs.)
to raise, lower, or move the treadmill.
1. Hold the treadmill in the locations shown by the arrow at
the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
96
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
121
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob
to the left and hold it. Raise the treadmill until the catch is
past the latch pin. Slowly release the latch knob. Make
sure that the catch is securely held by the latch pin.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
80
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 30° C (85° F).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
catch is securely held by the latch pin.
1. Hold the treadmill and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on a wheel, and carefully lower the tread-
mill until the base is resting in the storage position.
Closed
Latch
Knob
Pin
Catch
Wheels
Base
21
