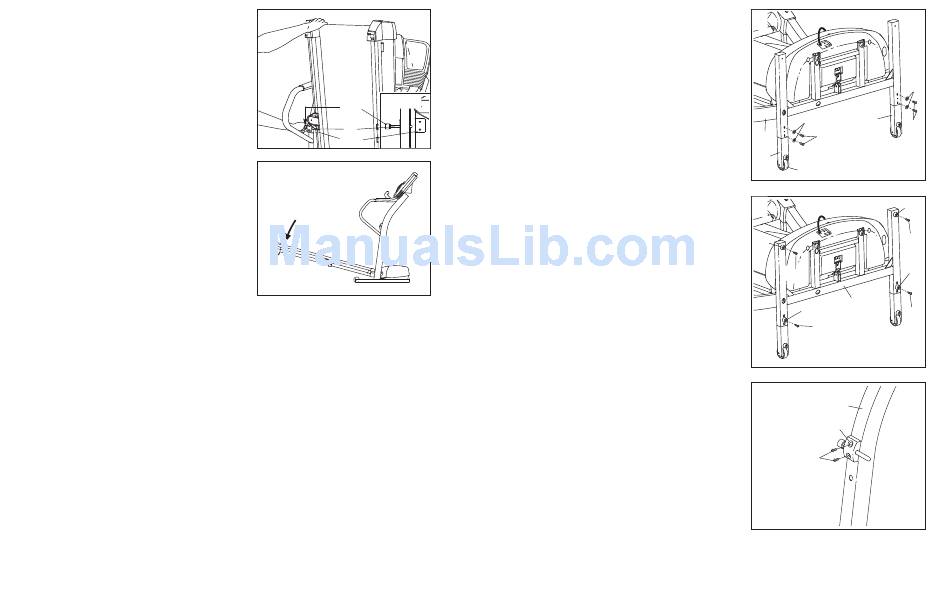

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left hand, pull the latch knob to the
left and hold it. Pivot the treadmill down until the frame is
past the latch pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
Open
Latch
Knob
Pin
Catch
22
2. With the help of a second person, carefully lower the
Uprights (96) as shown. Note: It may be helpful to place
your foot on one of the Wheels (94) as you tip the
Uprights. Make sure that the Extension Legs (86) re-
main in the Uprights.
Attach each Extension Leg (86) with two 1/4" x 1" Bolts
(88) and 1/4" Star Washers (87) as shown.
3. Attach the four Base Pads (125) with the four 1" Tek
Screws (123) to the bottom of the Upright (96) in the lo-
cations shown.
Note: One replacement Base Pad (125) may be in-
cluded. If a Base Pad becomes worn and needs to be re-
placed, use the replacement Base Pad.
4. With the help of a second person, carefully raise the
Upright (96) to the vertical position.
Remove the two Latch Screws (109) from the Left
Upright (96). Attach the Latch Assembly (110) to the Left
Upright with the two Latch Screws. Be careful not to
overtighten the Screws.
2
86
87
96
88
86
94
3
125
123
96
125
123
4
96
110
109
