Pro-Form Crosswalk 425 PFTL39707.0 User Manual

Hide thumbs

Table Of Contents

Model No. PFTL39707.0

Serial No.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–5 p.m. MST

ON THE WEB:

www.proformservice.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Table of Contents

Summary of Contents for Pro-Form Crosswalk 425 PFTL39707.0

Page 1 Model No. PFTL39707.0 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN .
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure 12. Failure to use a properly functioning surge that all users of this treadmill are adequately suppressor could result in damage to the con- informed of all warnings and precautions.
Page 4 22. Inspect and properly tighten all parts of the motor hood unless instructed to do so by an treadmill regularly. authorized service representative. Servicing other than the procedures in this manual 23. Never insert any object into any opening. should be performed by an authorized service representative only.
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the new PROFORM ® CROSS- number and serial number before contacting us. The WALK 425 treadmill. The CROSSWALK 425 treadmill model number of the treadmill is PFTL39707.0. The offers a selection of features designed to make your serial number can be found on a decal attached to the workouts at home more effective and enjoyable.
Page 6: Assembly
Pulse Bar Star 3/8” Star Washer (65)–4 Washer (83)–4 ASSEMBLY To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed.
Page 7: The Right Upright (69) With Two 1" Tek Screws
2. Attach two Round Base Pads (57) to the base of the right Upright (69) with two 1" Tek Screws (39). Attach a Wheel (66) to the base of the right Upright (69) with a Wheel Bolt (64) and a Nut (13) as shown.
Page 8 5. Set the Console (43) face-down on a soft surface to avoid scratching the Console. Next, hold one of the Handrails (71) near the Console. Then, in- sert the console wire into the hole in the side of the Handrail. Using needlenose pliers, pull the console wire out of the hole in the Handrail.
Page 9 8. Attach the Left Upper Body Arm (76) to the left Upright (69) with two 3 1/2" Bolts (96), two 1/4" Washers (38), and two 3/8" Star Washers (5) as shown. Make sure that the Left Upper Body Arm is on the indicated side of the Console (43).
Page 10: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, Your treadmill features a walking belt coated with high- performance lubricant.
Page 11 CONSOLE DIAGRAM Pulse Sensor Note: If there is a sheet of clear plastic Clip on the console, remove the plastic. FEATURES OF THE CONSOLE Plug in the power cord (see page 10). Next, locate the The treadmill console offers a selection of features reset/off circuit breaker on Reset designed to make your workouts more effective.
Page 12 Follow your progress with the displays. HOW TO USE THE MANUAL MODE The lower left display—As you Insert the key into the console. exercise, the lower left display See HOW TO TURN ON THE POWER on page can show the elapsed time and the distance that Select the manual mode.
Page 13 Measure your heart rate if desired. HOW TO USE A CALORIE GOAL PROGRAM To measure your heart rate, stand on the foot rails and place your left thumb on the pulse sen- Insert the key into the console. sor (see the drawing at the top of page 11). Do not press too hard, or the circulation in your See HOW TO TURN ON THE POWER on page thumb will be restricted and your pulse may...
Page 14 THE INFORMATION MODE An “E” (for English) or an “M” (for metric) will appear in the The console features an information mode that keeps lower right display. Press the track of treadmill usage information and allows you to Speed increase button to select a unit of measurement for the console.

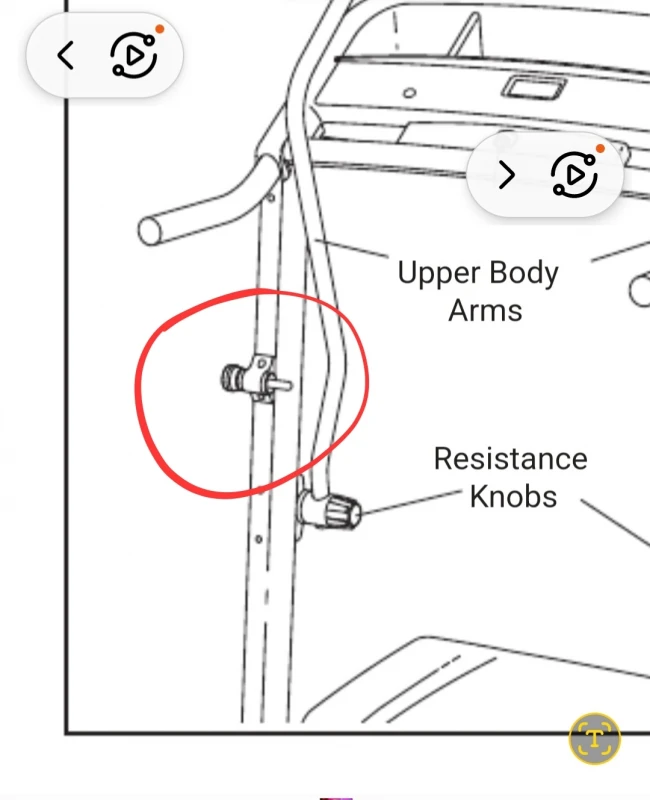

Page 15 HOW TO USE THE UPPER BODY ARMS As you walk on the treadmill, you can hold the handrails or use the upper body arms. To exercise your arms, shoulders, and back for a total body work- out, move the upper body arms forward and back as you walk on the treadmill.
Page 16: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
Page 17 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the treadmill with your right hand as shown. Pull the latch knob to the left and hold it. Pivot the frame downward until it is past the latch pin. Engaged Latch Knob Frame 2.
Page 18: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
Page 19 PROBLEM: The console displays remain lit when you remove the key from the console SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds.
Page 20 PROBLEM: The upper body arms squeak during use SOLUTION: a. (Note: Correcting this problem requires a small amount of white marine grease, available at hardware stores.) Turn the Resistance Knob (A) counterclockwise and remove it. Next, remove the Resistance Cone (B) and the Upper Body Arm (76), along with the Resistance Plate (C), Washers (D), Spring Washer (E), Thrust Washers (F), and Thrust Bearing (G).
Page 21: Conditioning Guidelines
CONDITIONING GUIDELINES ergy. Only after the first few minutes does your body WARNING: begin to use stored fat calories for energy. If your goal Before beginning this is to burn fat, adjust the speed and incline of the tread- or any exercise program, consult your physi- mill until your heart rate is near the lowest number in cian.
Page 22 NOTES...
Page 23: Part List
PART LIST—Model No. PFTL39707.0 R0307A Key No. Qty. Description Key No. Qty. Description Hood Motor Controller Wire 3/4” Screw Round Base Pad Motor Belt 3/4" Tek Screw Motor Tension Bolt Controller 3/8” Star Washer Lift Frame Motor Star Washer Extension Leg Pad Roller Bracket Screw Caution Decal Drive Motor...
Page 24: Exploded Drawing
EXPLODED DRAWING A—Model No. PFTL39707.0 R0307A...
Page 25 EXPLODED DRAWING B—Model No. PFTL39707.0 R0307A...
Page 26 EXPLODED DRAWING C—Model No. PFTL39707.0 R0307A...
Page 27 EXPLODED DRAWING D—Model No. PFTL39707.0 R0307A...
Page 28: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information: • the MODEL NUMBER of the product (PFTL39707.0) • the NAME of the product (PROFORM CROSSWALK 425 treadmill) •...
