- Page 1 User Manual Alarm Control Panel CA10 plus (software version 4.7) with LCD-S Keypad ® GDAŃSK ca10plcu_s_e 07/03...
- Page 2 (European Union Directives 91/157/EEC and 93/86/EEC). The SATEL Company recommends that operation of the whole alarm system be regularly tested. However, a reliable alarm system does not prevent burglary, assault or fire from happening, it only diminishes the risk that such a situation will cause no alarm or notification.
- Page 3 Control panel CA 10 plus with an LCD-S keypad Alarm control panel CA10 plus is a modern, microprocessor-based device designed for signaling burglaries and assaults. The CA-10 plus panel controls the operation of an alarm system, responds to information coming from the alarm system detectors about an intrusion on a protected facility and informs about the event.
-
Page 4: Armed Modes
User's Guide SATEL Features of CA-10 plus: • panel operation controlled with LCD text display keypads (2x16 characters), • clear text messages describing system status and important events, • installer-defined zone descriptions simplifying identifying the alarm origin, • simultaneous detailed status presentation of up to 16 zones controlled by the panel, •... - Page 5 Control panel CA10 plus with LCD-S keypad Silent armed mode Armed mode in which alarms are signaled only in the panel keypads. The installer can decide which of the detectors are automatically by-passed in this mode; he can also choose signaling device to be used in that mode.
- Page 6 User's Guide SATEL Operating instructions Operating of the alarm system consists basically in arming and disarming the system (setting surveillance mode) and offering an appropriate reaction to the information the control panel signals on the keypad. The keypad displays the information about the status of the alarm system by means of a two-line, backlit LCD display (2x16 characters) and six additional LED controls.

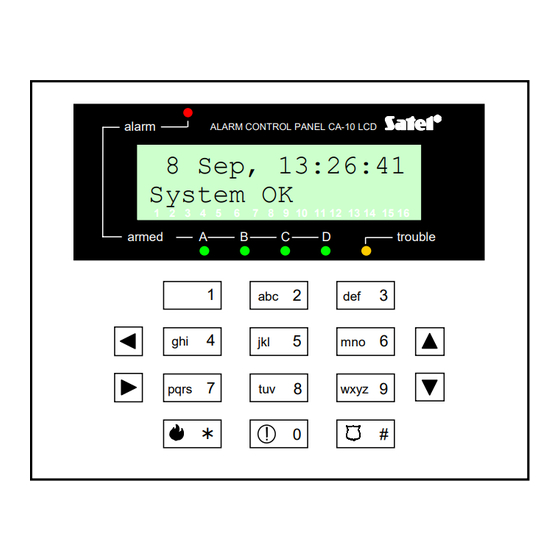

- Page 7 Control panel CA10 plus with LCD-S keypad alarm ALARM CONTROL PANEL CA-10 LCD 8 Sep, 13:26:41 System OK 1 2 3 4 5 7 8 9 10 11 12 13 14 15 16 armed trouble pqrs wxyz View of LCD-S keypad.
- Page 8 User's Guide SATEL User access codes For everyday operation of the system assigning user access code is essential. The control panel comes with one factory-set code (master user code) for each partition: 1234 for partition A, 2345 for partition B, 3456 for partition C, 4567 for partition D.
- Page 9 Control panel CA10 plus with LCD-S keypad Arming [Access code][#] Arming is only possible when the partition is not signaling alarm and is not already armed: ALARM and ARMED diodes are off. In order to arm the system access code should be entered and confirmed by pressing [#] key.
- Page 10 User's Guide SATEL detector trouble) the armed mode can be switched on after the exit has been blocked (function 4), • access code entered is incorrect - the control panel signalizes the event with two long beeps, • in the partition there are no armed type zones - the control panel signalizes the event...
- Page 11 Control panel CA10 plus with LCD-S keypad alarm. If, while typing the access code, user makes a mistake, she/he should press [ * ] button and re-enter the code. The control panel will not be disarmed or allow the alarm clearing if: •...
- Page 12 User's Guide SATEL Alarm System Status Telephone Messages The owner of the facility with CA-10 plus control panel installed can check if the alarm is on by means of a standard telephone connection. In order to do so he has to phone the facility - the control panel will answer the phone and will brief the caller on the system status.
- Page 13 Control panel CA10 plus with LCD-S keypad It is possible to perform operations of two types: 1. Checking the status of zones or partitions. 2. Performing a user function. The below table presents the functions performed by the MST-1 module:...
- Page 14 User's Guide SATEL Partition status signalling: • three short beeps – partition disarmed; • four short and one long beeps - partition armed. Alarm in a partition or memory of an alarm are signalled with a series of short beeps (changing from high to low) that last approx.
- Page 15 Control panel CA10 plus with LCD-S keypad • The subsequent calling of the function [9][#] indicates the next LED, which is shining. The review needs to be continued till hearing two long signals informing that there are no more LEDs shining. The repeated calling the function (after two long signals) will restart the review of zone status.
-
Page 16: Key Functions
User's Guide SATEL Key Functions Activated by installer functions assigned to keys help in everyday control of the system operation. Find the partition where alarm was activated In multi-partition systems the find function enables determining the partition where alarm was activated. - Page 17 Control panel CA10 plus with LCD-S keypad User "HOLD DOWN" Functions The functions are available to every user (without entering any access code). They are activated by holding the function key down for a short time. Switching to n partition (GO TO n) In alarm systems divided into several partitions (subsystems) single keypad control over the whole system is possible.
- Page 18 User's Guide SATEL keys causes the zone description to appear. [ * ] key cancels event log. Pressing Alarm Memory Review function. The control panel distinguishes between three types of alarms: zone alarms - break-in, assault, fire etc. alarms set-up by the installer,...
- Page 19 Control panel CA10 plus with LCD-S keypad NOTE: If the installer has activated the "Indicate trouble until cancelled" option, the trouble indicator will be on until cancelled, even if the trouble cause has been removed. The trouble will be cleared after completing the trouble memory review and quitting the function by pressing the [#] key.
- Page 20 User's Guide SATEL Telephone line troubles: • "No voltage on the telephone line" - the message appears when the telephone line to which the control panel is connected is cut off. It may also appear when the telephone connected to the same line is off hook for longer than the time specified by the installer (service function FS117) •...
- Page 21 Control panel CA10 plus with LCD-S keypad Switching the Chime on/off The function enables switching the chime on/off (acoustic signaling of the violation of specified detectors) by means of the keypad. The switching off of the function with the keypad is confirmed with three short beeps, switching on - with one longer and four short beeps.
-
Page 22: Changing Display Mode Of System State
User's Guide SATEL CHANGING DISPLAY MODE OF SYSTEM STATE This function makes it possible to change the LCD display operating mode from displaying text messages about the system state into displaying the state of armed zones (or the other way round). The keypad will automatically return to the installer set operating mode after... -
Page 23: User Function Menu
Control panel CA10 plus with LCD-S keypad User function menu If the control panel is not armed and is not signaling any alarm, after entering the access code and pressing [ * ] key the panel switches to user function selection mode. The beginning of the list of user functions appears on the keypad. - Page 24 User's Guide SATEL on the display - by means of pressing an appropriate numeric key, similarly to calling a function by means of LED keypad. Choosing User Functions with the Menu is very simple as the display shows clear function descriptions.
- Page 25 Control panel CA10 plus with LCD-S keypad An access code can have the following authority levels: 1 - all functions available except for creating and deleting users, 2 - arming and disarming functions available as well as changing access code,...
- Page 26 User's Guide SATEL NOTES: The access codes of type 5 and 6 may be used in the following way: 1. In the user function basic mode ([CODE][ * ]7 or [CODE][ * ]8) which allows multiple control of single outputs (see description of user functions).
- Page 27 Control panel CA10 plus with LCD-S keypad Numeric mode Text mode deletes the character before the the previous character in the cursor alphabet switches between the next character in the insert/typeover modes alphabet mno 6 pqrs 7 wxyz 9 space...
- Page 28 User's Guide SATEL Text mode is signaled with a * sign in the upper right corner of the display. Numeric keys in text mode insert letters at the cursor position according to the preceding table. Small characters are entered by pressing a numeric key twice.
- Page 29 Control panel CA10 plus with LCD-S keypad Silent Armed Mode (function 5) In silent armed mode the alarms are signaled only in keypads and by sending an appropriate message to monitoring station. The installer decides if silent armed mode is valid in all the protected facility or if in a selected area it will be disarmed.
- Page 30 User's Guide SATEL the outputs is of the „MONO switch” type, or if no key on the keypad is depressed for 40 seconds. The function is accessible to the master user, as well as to the users with authority levels 1 and 5.
- Page 31 Control panel CA10 plus with LCD-S keypad detectors) The function temporarily disconnects power on the power outputs with RESET function. The function is available for the master user and a user with authority level 1. Start Download (function 0) The function can be activated by the master user and a user with authority level 1. It starts the control panel - servicing PC remote telephone connection.
-
Page 32: Technical Reliability Of The Alarm System
User's Guide SATEL Technical Reliability of the Alarm System The alarm system is built of the devices whose reliability is vital in effectiveness of offered protection. The elements of the alarm system are subject to various outside influences, for example weather conditions (outside signaling devices), lightning (overhead telephone lines, power lines, outside signaling devices), mechanical damage (keypads, detectors). -
Page 33: History Of The Manual Updates
Control panel CA10 plus with LCD-S keypad HISTORY OF THE MANUAL UPDATES The updates below refer to the manual for the control panel with program version 4.1. Program Date Description of updates version A new section added: operation via a telephone of the control panel working with MST-1 08-2002 telephone control module (see p. - Page 34 LCD display: time and date trouble – signals trouble detection alarm – alarm in the or partition name and system - pressing any of the in the system - to check press current partition status message keys for 3 seconds switches key for 3 seconds.
