Terminal Panel Features

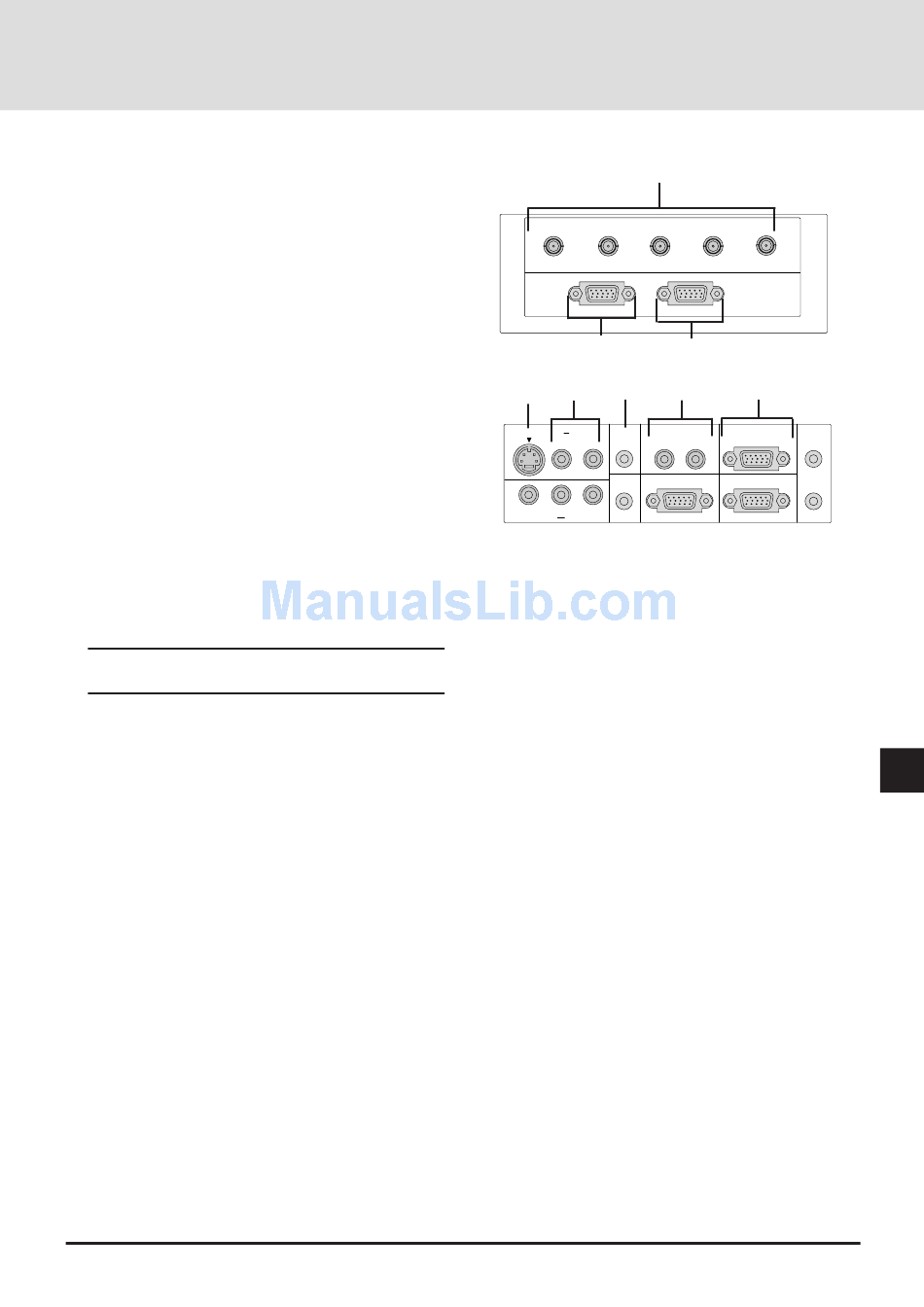

This panel is located on the left side and is where you connect your
cables.
1 R/Cr, G/Y, B/Cb, H/ HV and V [RGB 1] Inputs (BNC)
Connect R,G,B,H (Horizontal sync) and V (Vertical sync)
outputs of external equipment such as the NEC ISS-6020
Switcher or IPS-4000.
If using a component with a combined sync (SYNC) output,
connect it to the H/V terminal. When using luminance and
color-difference signals of HDTV and DVD, connect Pr/Cr
to the R, Y to the G and Pb/Cb to the B input of the projector.
2 RGB (Y, Cb,Cr) Input 2 Connector (Mini D-Sub 15 pin)
Connect your PC, DVD player with Y/Cb/Cr outputs or
other RGB equipment such as IBM or compatible comput-
ers. The optional Component V. Cable is required for Y/Cb/
Cr input connection.
3 RGB Output Connector (Mini D-Sub 15 pin)
You can use this connector to loop your computer image to
an external monitor from either the RGB 1 or RGB 2 input
source.
4 S-Video Input
Here is where you connect the S-Video input from an exter-
nal source such as a VCR or laser disc player.
NOTE: S-Video provides more vivid color and higher
resolution than the traditional composite video format.
5 Left Channel/Mono Audio Input Jack (RCA)
This is your left channel audio input for stereo sound coming
from S-Video equipment or audio system. This also serves as
your monaural audio input.
Right Channel Audio Input Jack
This is your right channel audio input for stereo sound.
6 RGB 2 Audio Input Mini Jack
You can use this connector to output sound from the RGB 2
Input source.
7 RGB 1 Left Channel/Mono Audio Input Jack (RCA)
This is your left channel audio input for stereo sound coming
from the RGB Input 1 source.
This also serves as your monaural audio input.
RGB 1 Right Channel Audio Input Jack
This is your right channel audio input for stereo sound from
the RGB Input 1 source.
8 Remote 2/PC Connector (Mini D-Sub 15 pin)
Use this connector to attach an RS-232C cable when a
computer or similar device will control the projector or when
the projector is used with multiple projectors.
R/Cr G/Y
RGB
INPUT 2
2
5
4
S-VIDEO INPUT AUDIO
RGB 2
L/MONO R
AUDIO
AUDIO
OUTPUT
L/MONO R
VIDEO INPUT AUDIO
E-11
1
B/Cb H/HV V
RGB
OUTPUT
3
6
7
8
RGB 1 AUDIO
REMOTE 2/PC
L/MONO R
REMOTE 1 EXT-CTL
REMOTE
INPUT
REMOTE
OUTPUT
