NEC MultiSync GT2000 User Manual page 29

Connections with Multiple ISS-6020 Switcher
You can accommodate as many as 100 sources by connecting your GT2000/GT2000R to one ISS-6020 switcher that acts as
"master" and ten more switchers that are "slaves."
To connect several ISS-6020s, the "Switcher Control" on the "Settings Menu" should be set to "SW 2 Level" for multiple
projectors. (See page E-38.)
Note: The more ISS-6020 switchers that are connected, the more time is needed for the projector to start up.

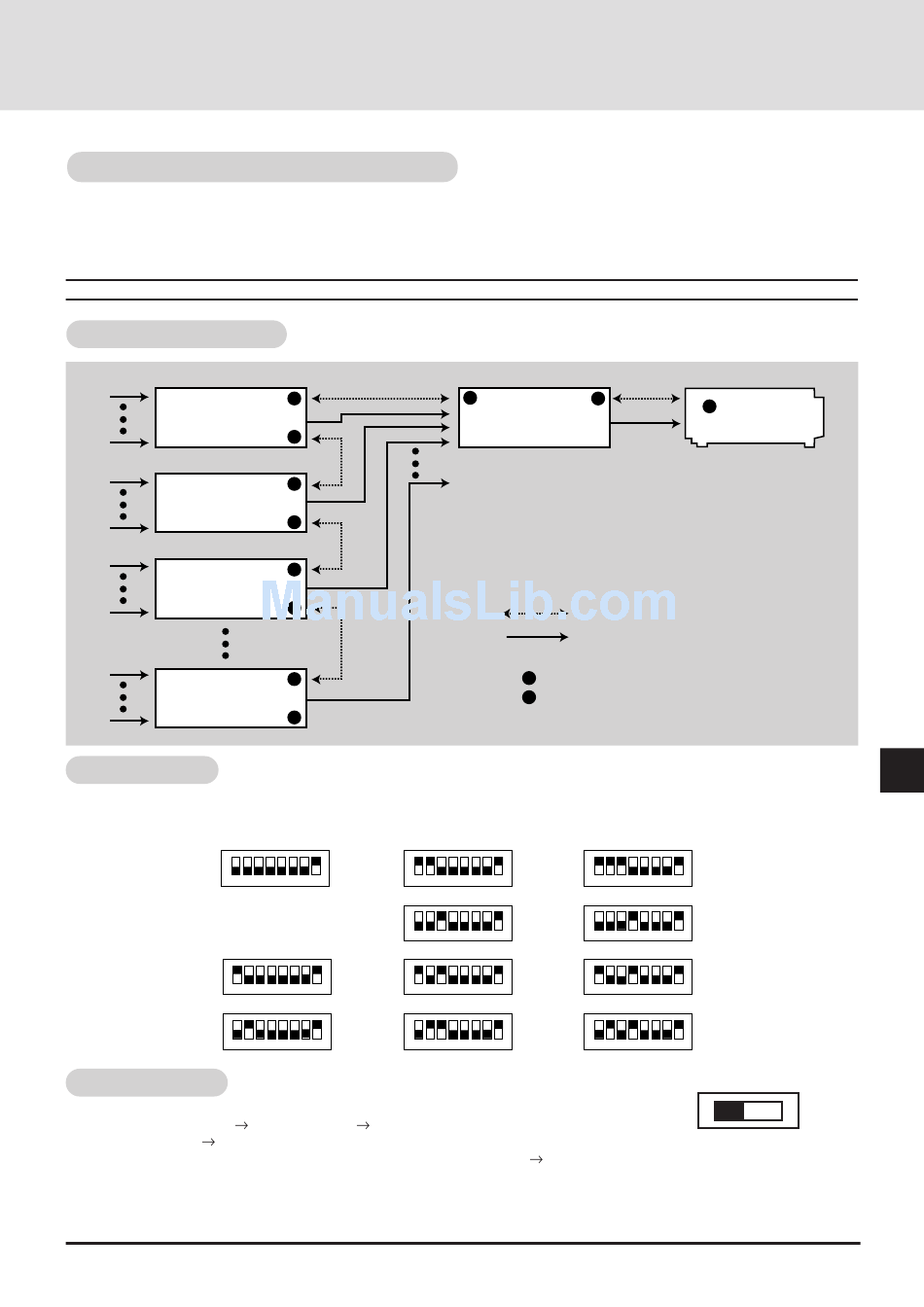

System Connections Diagram
1
ISS-6020
(Slave 1)
10
1
ISS-6020
(Slave 2)
10
1
ISS-6020
(Slave 3)
10
1
ISS-6020
(Slave 10)
10
DIP Switch Settings
To use the GT2000/GT2000R with two ISS-6020 switchers or more, the DIP switch (S8601) inside the ISS-6020 System
Control module should be set as shown here. The pin 8 should be set to "OPEN". (Leave the pins 5 to 7 in their original factory
settings.)
Master
1 2 3 4 5 6 7 8
Slave 1
1 2 3 4 5 6 7 8
Slave 2
1 2 3 4 5 6 7 8
Slide Switch Settings
Set the slide switch located inside the ISS-6020 system control module to the RS-422 side.
* Select the [Settings Menu] [Switcher Control] [SW 2 Level] under the main menu.
* Select the [Memory] [Channel Memory] under the main menu and perform the Signal Entry.
* When using the projector with the external equipment, select the [Memory] [User Memory]
under the main menu and perform the Signal Entry.
* Select the [Switcher] menu from the main menu and make some adjustments such as RGB gain,
color, tint, sharpness, volume and audio control.
1
2
1
2
1
2
1
2
OPEN
Slave 3
1 2 3 4 5 6 7 8
SHORT
Slave 4
1 2 3 4 5 6 7 8
OPEN
Slave 5
1 2 3 4 5 6 7 8
SHORT
OPEN
Slave 6
1 2 3 4 5 6 7 8
SHORT
2
1
1
ISS-6020
2
(Master)
3
10
Control cable
Image signal cable
1
indicates connection to the REMOTE 1 connector
2
indicates connection to the REMOTE 2 connector
OPEN
Slave 7
1 2 3 4 5 6 7 8
SHORT
OPEN
Slave 8
1 2 3 4 5 6 7 8
SHORT
OPEN
Slave 9
1 2 3 4 5 6 7 8
SHORT
OPEN
Slave 10
1 2 3 4 5 6 7 8
SHORT
E-29
1 GT2000
GT2000R
OPEN
SHORT
OPEN
SHORT
OPEN
SHORT
OPEN
SHORT
RS-422 RS-232C
