D-Sub Pin Assignments

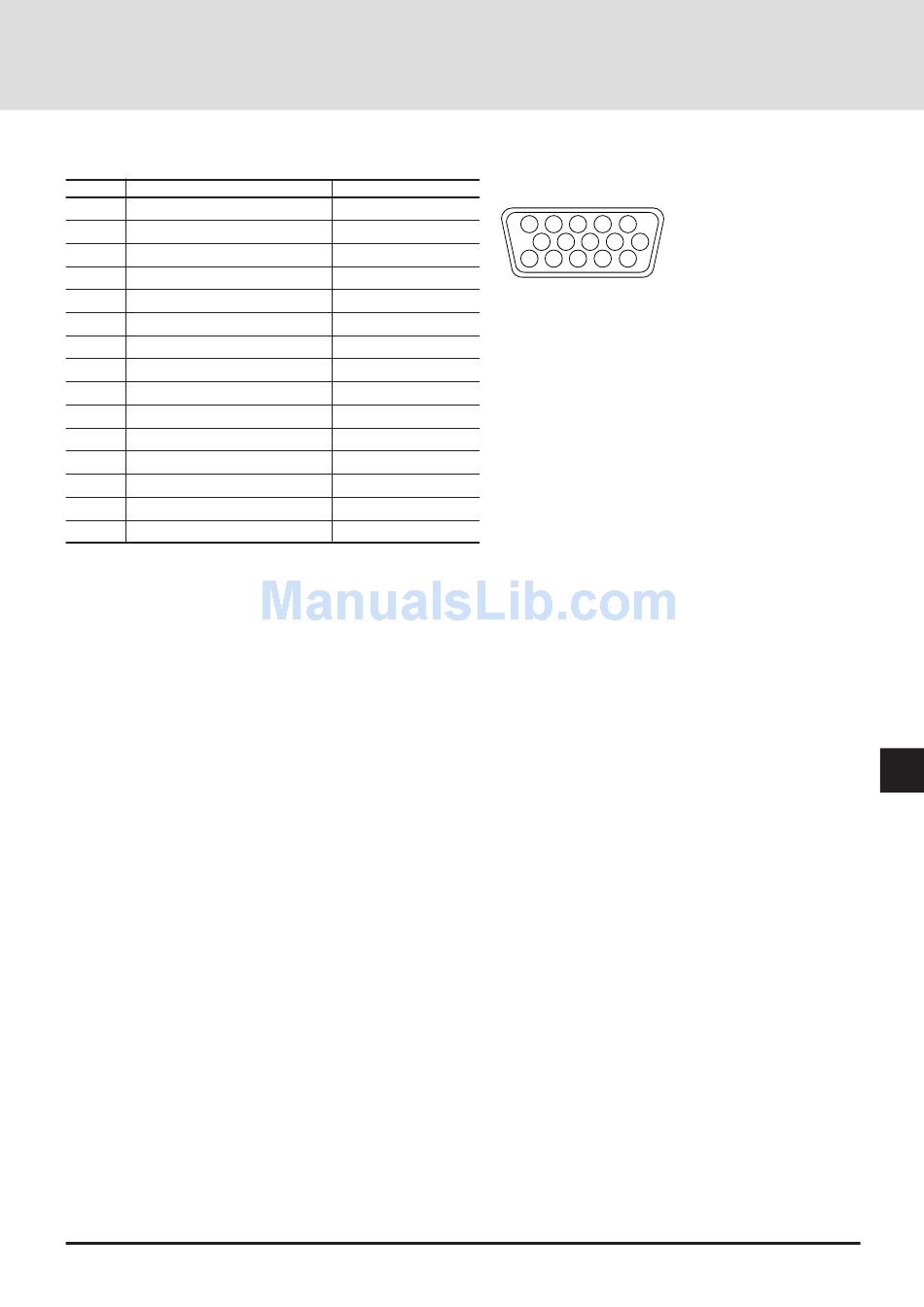

PC 15-Pin mini D-Sub
Pin No. RGB (Analog)
1 Red
2 Green or Sync. on Green
3 Blue
4 GND
5 GND
6 Red Return (GND)
7 Green Return (GND)
8 Blue Return (GND)
9 No Connection
10 Sync Return (GND)
11 GND
12 Bi-dirctional DATA (SDA)
13 H. or Composite sync
14 V. SYNC (VCLK)
15 Data Clock
Signal level
Video signal : 0.7 Vp-p (analog)
Sync. signal : TTL level
PC 15-Pin mini D-Sub
YCbCr
Cr
Y
Cb
Cr (GND)
Y (GND)
Cb (GND)
E-81
4 3 2 1
5
10 9 8 6
7
15 14 13 12
11
