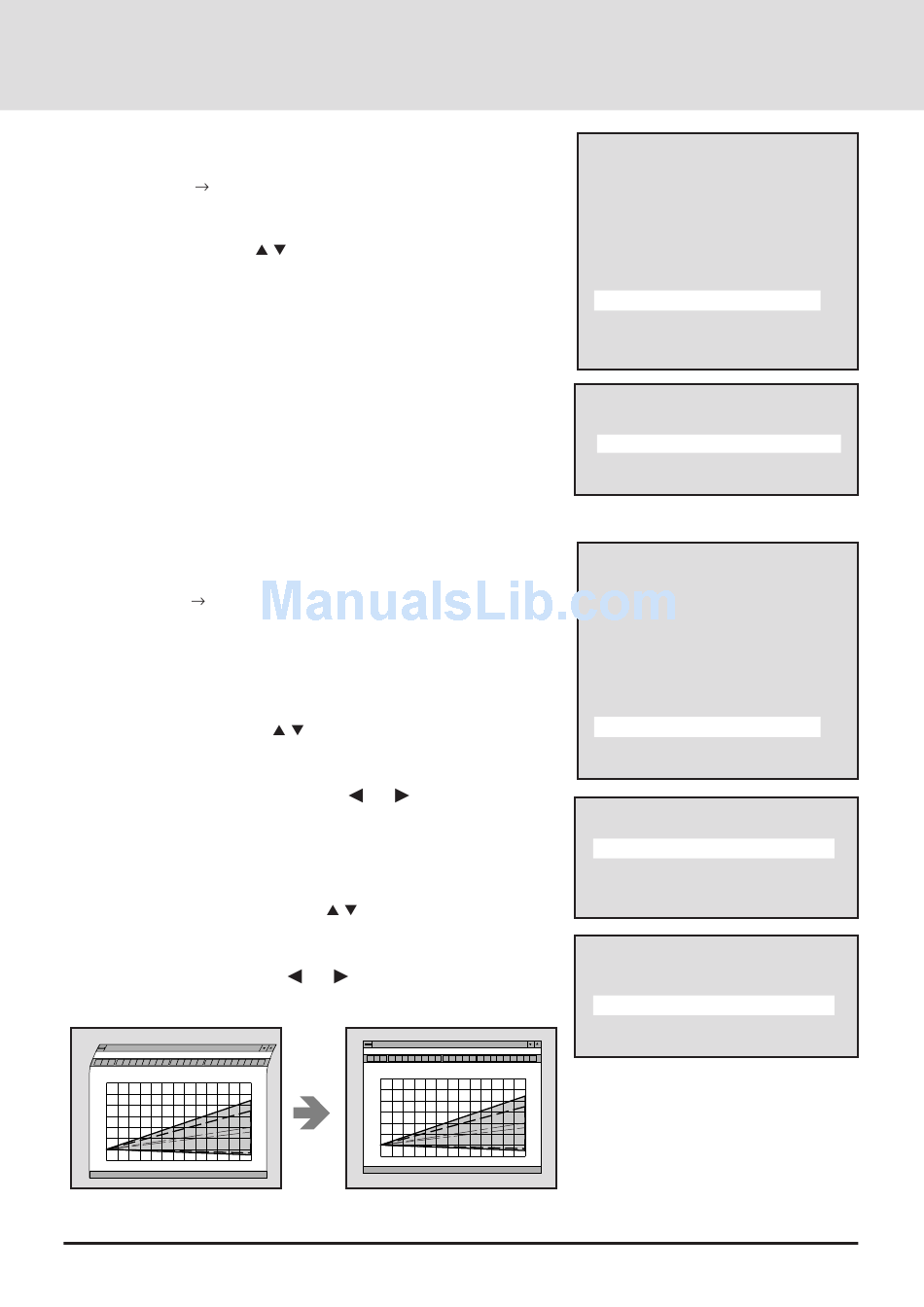

• Reducing Noise (Image Filter)
This function reduces video noise.
Select [Alignment] [Image Filter] from the main menu, then press the
ENTER button. The image filter selection display will appear.
Select On/Off with the cursor
On ........................ The low-pass filter is applied.
Off ........................ The filter is removed.
Screen adjustments are possible even when the filter is On.
Other Screen Adjustments (Vertical Phase, Skew Correc-
tion, Sync Position, and Clamp Timing)
Select [Alignment] [Option] from the main menu, then press the ENTER
button. The option menu will be displayed.
• Vertical Phase
This function adjusts the vertical pixel phase when an irregularity arises while
making fine vertical movements of the screen or in the interlaced display.
Select [V Phase] with the cursor
When the item to be adjusted is selected, the adjustment value of the selected
item is displayed at the bottom edge of the display.
Adjust to a normal condition with the cursor
The adjustment range is from 0 to 7.
• Skew Correction
This function adjusts the vertical bending of the screen.
Select [Skew Correction] with the cursor
When the item to be adjusted is selected, the adjustment value of the selected
item is displayed at the bottom edge of the display.
Adjust the bending with the cursor
The adjustment range is from 0 to 8.
i m)
6
5
4
3
2
1
0
1
0 1 2 3 4 5 6 7 8 9 10 11 12
/ button.
/ button.
(–)/ (+) button.
/ button.
(–)/ (+) button.
m)
i
6
5
4
3
2
1
0
1
0 1 2 3
13 m)
i
Alignment
Filter
Alignment
Option
Option
4 5 6 7 8 9 10 11 12 13 i m)
E-54
H Position
V Position
Picture Adjust
Fine Picture
H Amplitude
V Amplitude
Image Filter
Option
Auto Alignment
On
Off
H Position
V Position
Picture Adjust
Fine Picture
H Amplitude
V Amplitude
Image Filter
Option
Auto Alignment
V Phase
Skew Correction
Sync Position
Clamp Timing
V Phase
Skew Correction
Sync Position
Clamp Timing
