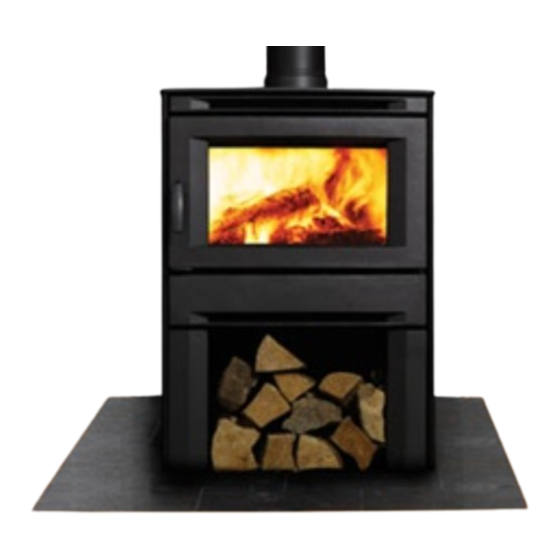

CS1200
Alterra
®
Freestanding
Wood Stove
Owner's & Installation Manual
French Manual Download: http://bit.ly/1E1h5ew
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-539
09.15.15
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products CS1200 Alterra
Summary of Contents for Regency Fireplace Products CS1200 Alterra
- Page 1 CS1200 Alterra ® Freestanding Wood Stove Owner's & Installation Manual French Manual Download: http://bit.ly/1E1h5ew Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
- Page 2 Thank-you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area. Keep those REGENCY FIRES burning. “This wood heater has a manufacturer set minimum low burn rate that must not be altered.
-
Page 3: Table Of Contents
table of contents SAFETY LABEL Maintenance ..............28 Door Catch Adjustment..........28 Door Gasket ..............28 Safety label ..............4 Glass Maintenance ............28 Glass Replacement .............28 DIMENSIONS PARTS LIST Unit Dimensions ............5 Main assembly.............30 Fan assembly ..............31 INSTALLATION Fire brick ..............31 Residential Installation...........6 WARRANTY Room Air ...............6 Important ...............6 Warranty ..............35... -
Page 4: Safety Label
safety decal SAFETY LABEL This is a copy of the label that accompanies each CS1200 Wood Stove. We have printed a copy of the contents here for your review. NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one. -
Page 5: Dimensions
DIMENSIONS UNIT DIMENSIONS Shown with optional 27-1/8” (689mm) blower installed. 6" flue collar 17-1/8” (436mm) 17-1/8” (436mm) 19-1/16” (485mm) 26-3/4”(680mm) Regency CS1200 Freestanding Wood Stove... -
Page 6: Installation
installation RESIDENTIAL 12) A chimney connector cannot pass through an attic other types of chimneys check with your local build- or roof space, closet or similar concealed space, ing code officials. Do not confuse a chimney with a INSTALLATION or a floor, ceiling, wall or partition of combustible type “B”... -
Page 7: Minimum Clearance To Combustible Materials
installation MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND FROM THE REAR HEAT SHIELD TO A BACK WALL NOTE: Be aware that local Codes and Regulations may override some clearances listed in this manual. Check with your local inspector. -
Page 8: Floor Protection
installation MINIMUM ALCOVE CLEARANCE AND CLEARANCE TO COMBUSTIBLE MATERIALS MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND FROM THE REAR HEAT SHIELD TO A BACK WALL The Regency Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. -
Page 9: Step By Step Chimney And Connector Installation
installation STEP BY STEP 8) To complete your chimney installation, install the double wall connector pipe from the stove’s CHIMNEY AND flue collar to the chimney support device. CONNECTOR 9) If you are using a horizontal connector, the chimney connector should be as high as pos- INSTALLATION sible while still maintaining the 18"... -
Page 10: Masonry Chimney
installation MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 11: Combustible Wall Chimney Connector Pass-Throughs
installation COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Minimum chimney clearance to brick and combustibles 2 in. (50.8mm) Method A: 12" (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm) Minimum clearance minimum wall thickness clay liner, construct a wall pass-through. -
Page 12: Recommended Heights For Woodstove Flue
installation TABLE 1 MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET (Measured from the top of the unit) # OF ELBOWS ELEVATION (FT) ABOVE SEA LEVEL 2 x 15 4 x 15 2 x 30 4 x 30 2 x 45 4 x 45 0-1000 12.0 13.0... -
Page 13: Mobile Home Installation
installation MOBILE HOME INSTALLATION Once you have properly marked the position of your unit and the floor protec- tion as outlined in the Residential Installation items #1 through #8, a supply of fresh air has to be supplied to your unit. Cut a minimum 4 inch diameter hole through your outside wall. -
Page 14: Listed Components For Mobile Home Installation
installation LISTED COMPONENTS FOR MOBILE HOME INSTALLATION The Regency CS1200 is approved for installation in a Mobile Home if one of the following pipe systems is used. U.S. Installation* Qty.Part # Description METALBESTOS SSII 6DCC Connector Qty. Part # Description 6HSRS-12 Roof Support (6PLRS-12-BK) 6DS-VK Connector Kit... -
Page 15: Stainless Steel Smoke Deflector Adjustment / Replacement
installation STAINLESS STEEL SMOKE DEFLECTOR ADJUSTMENT / REPLACEMENT The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts. Ensure defector is seated so bolts are situated at the top of the keyhole before tightening. -
Page 16: Baffle And Tube Installation
installation BRICK INSTALLATION BAFFLE AND TUBE INSTALLATION Firebrick is included to extend the life of your stove and radiate heat more evenly. Check to see that all firebricks are in their correct positions and have 1) If the two air tubes are installed continue on to Step 2), if not, follow the not become misaligned during shipping. -
Page 17: Side Panel Installation
CS1200 installation SIDE PANEL INSTALLATION SIDE PANEL INSTALLATION One set of side panels needs to be installed on the stove. When installing stainless steel side panels - follow the handling and cleaning instructions below. Before installation, panels must be handled and cleaned as per instructions noted below: Stainless Steel Panels •... -
Page 18: Ash Drawer Option
CS1200 installation ASH DRAWER OPTION ASH DRAWER INSTALLATION 1) Open the main top door and the center door on the front of the unit. 4) Push the ash plug into the hole inside the fi rebox and replace all the bricks except for the brick over the ash plug. -
Page 19: Lower Surround Door Reversal
installation LOWER SURROUND DOOR REVERSAL (LEFT TO RIGHT SIDE OPENING) 1) The lower surround door can be reversed - to open from the right. Make 6) Reinstall the door (do not rotate) onto the hinge on the left side with the sure stove has cooled, open the door - and remove it from the hinge by 2 bolts removed in Step 1. - Page 20 installation CAST DOOR REVERSAL (LEFT TO RIGHT SIDE OPENING) 1) The door can be reversed - so that it will open to the left. Make sure stove 6) Remove the glass from the door and flip it around 180° - so the painted has cooled to room temperature.
-
Page 21: Wood Storage
installation WOOD STORAGE 3) Manoeuvre ashlip into position on an angle - the tabs on the ashlip rest behind side walls on unit - see diagrams below. When storing wood within pedestal- ensure wood does not protrude past door opening. Do not store newspaper within pedestal. Note: Please refer to local codes. -
Page 22: Optional Outdoor Air Kit Installation
installation OPTIONAL OUTDOOR AIR KIT INSTALLATION 2) Center the plate / pipe over the opening on the back of the stove. 1) Remove 4 bolts from locations shown below to remove backing Secure with 4 self tapping screws. plate. 3) Reinstall the backing plate over the air kit pipe. Secure with 4 bolts removed from step 1. -
Page 23: Blower/Fan Installation
installation BLOWER/FAN INSTALLATION 1) Remove the five screws from the back panel of the unit - to remove the fan cover plate. 2) Slide the fan up into the rear heat shield. 3) After aligning holes, secure the fan to the rear heat shield using the five screws removed earlier. -
Page 24: Operating Instructions
operating instructions SEASONED WOOD Whether you burn wood in a fireplace, stove or insert, good quality firewood is the key to convenience, efficiency and safety. Wet wood and pieces that are not the right size and shape for your wood burner can be frustrating, burn inefficiently and deposit creosote that can fuel a dangerous chimney fire. Good planning, seasoning and storage of the firewood supply are essential to successful wood burning. -
Page 25: Operating Instructions
operating instructions OPERATING 8) Do not place anything on the stove top during WARNING the curing process. This may result in damage INSTRUCTIONS Fireplace Stoves equipped with doors to your paint finish. should be operated only with doors fully closed. If doors are left partly 9) During the first few days it may be more difficult With your unit now correctly installed and safety open, gas and flame may be drawn out... -
Page 26: Ash Disposal
operating instructions ASH DISPOSAL 3) Open the lower surround door by hooking two fingers in the slot near the left side - pull open During constant use, ashes should be removed towards the right. every few days. The Ash Drawer option features a convenient ash dump for easy removal of ash, refer to the "Modular Options"... -
Page 27: Safety Guidelines And Warnings
maintenance SAFETY GUIDELINES AND 14) Do not store any fuel closer than 2 feet from FAN MAINTENANCE your unit. Do not place wood, paper, furniture, WARNINGS drapes or other combustibles near the appli- ance. TO REMOVE THE FAN: 1) Never use gasoline, gasoline type lantern fuels, Reverse Steps 5-2 in fan installation section. -
Page 28: Maintenance
maintenance MAINTENANCE DOOR CATCH GLASS REPLACEMENT ADJUSTMENT It is very important to carefully maintain your fire- Allow the stove to cool before removing or replacing place stove, including burning seasoned wood and glass. Remove the door from the stove and remove The door catch may require adjustment as the door maintaining a clean stove and chimney system. - Page 29 maintenance Annual Maintenance Completely clean out entire unit Annually Inspect air tubes, baffles and bricks Replace any damaged parts. Adjust door catch / latch If unable to obtain a tight seal on the door - replace door gasket seal. Readjust latch after new gasket installed. Inspect condition and seal of: Glass Gasket Door Gasket...
-
Page 30: Parts List
parts list MAIN ASSEMBLY Part # Description Part # Description 076-201 Cast Stove Top 076-211 Cast Pedestal Firebox Assembly 156-211 Surround Bottom 940-366/P Neoceram Glass 156-513 Curved Door Assembly 156-261 Thin Surround 076-921 Side Shield (Black Set) 919-539 Manual 076-927 Side Shield (Stainless Set) 156-519 Door Catch Assembly... -
Page 31: Fan Assembly
parts list FAN ASSEMBLY Part # Description 200-917 Fan Assembly Package 220-026 Fan Housing Front 222-022 Fan Housing Bottom 222-036 Sensor Mount 200-227 Fan Bracket Right Hand 200-228 Fan Bracket Left Hand 200-229 Fan Housing Back 910-157/P Fan 910-142 Thermodisc FIRE BRICK Part # Description... - Page 32 notes 32 | Regency CS1200 Freestanding Wood Stove...
- Page 33 notes Regency CS1200 Freestanding Wood Stove...
- Page 34 notes 34 | Regency CS1200 Freestanding Wood Stove...
-
Page 35: Warranty
Wood Stoves and Inserts Warranty 2015 Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thorough- ly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. - Page 36 Register your Regency warranty online ® www.regency-fire.com Reasons to register your product online today! • View and modify a list of all your registered products. • Request automatic email notification of new product updates. • Stay informed about the current promotions, events, and special offers on related products.
