Indoor Unit
Step
4

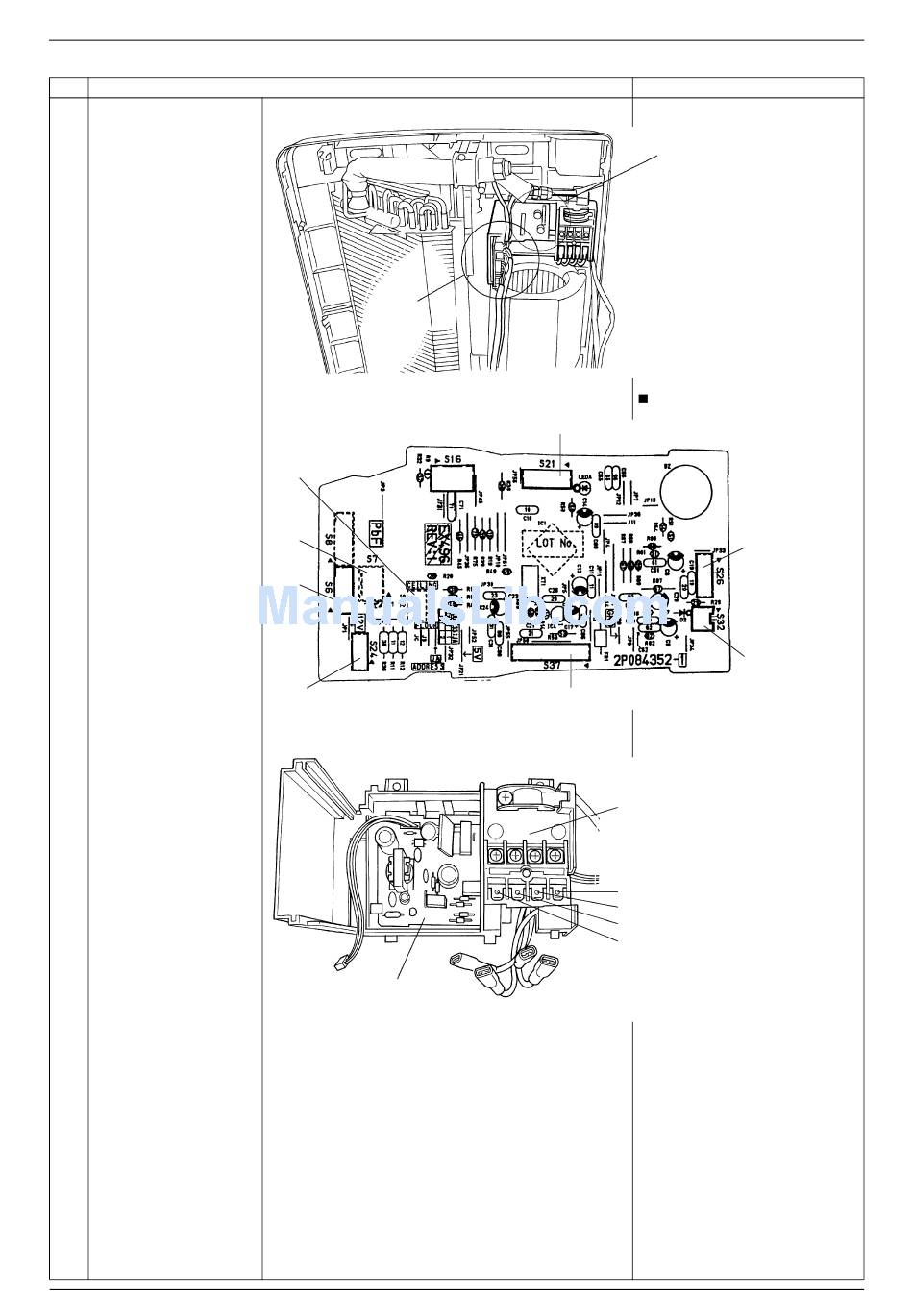

The illustration shows
the control PCB.
5
Disconnect the
terminals from the
terminal board.
127
Procedure
Control
PCB
SW2
S7
S6
S24
Power supply PCB
Power supply PCB
Refer to page 16 for detail.
S21
S37
Terminal board
earth: green/yellow
(1): black
(2): white
(3): red
(R14206)
SiBE05-722_B
Points
(R3009)
S26
S32
(R2958)
Removal Procedure
