Page 1: Technical Data

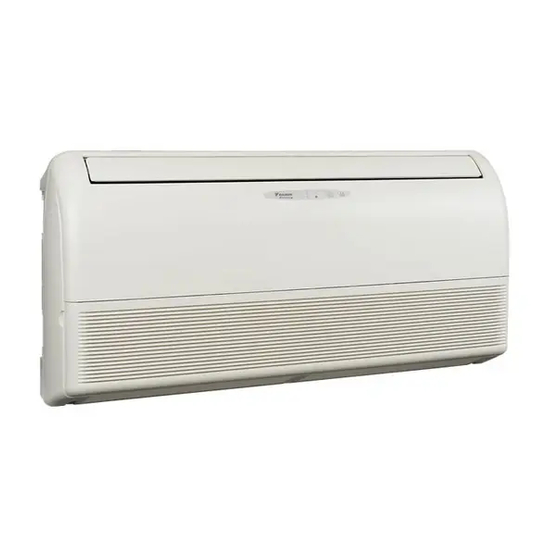

FLXS-BAVMB Flexi Type, Inverter Controlled Unit Split Sky Air... -
Page 2: Table Of Contents
• Indoor Units • R410A • FLXS-BAVMB TABLE OF CONTENTS FLXS-BAVMB Features ............. 2 Specifications . -
Page 3: Features
• Auto-swing function ensures efficient air and temperature distribution. • Daikin remote controls give you easy control at your fingertips. • Air purification filter: deodorises the air and helps to prevent bacterial • The remote control has a 24-hour timer and viral propagation •... -
Page 4: Specifications
• Indoor Units • R410A • FLXS-BAVMB Specifications 2-1 FOR INDOOR UNITS ONLY FLXS25BAVMB FLXS35BAVMB FLXS50BAVMB FLXS60BAVMB Nominal Input Cooling 0.070 0.078 0.096 0.098 Heating 0.074 0.078 0.096 0.096 2-2 TECHNICAL SPECIFICATIONS FLXS25BAVMB FLXS35BAVMB FLXS50BAVMB FLXS60BAVMB Casing Colour Almond white... -
Page 5: Electrical Specifications
• Indoor Units • R410A • FLXS-BAVMB Specifications 2-2 TECHNICAL SPECIFICATIONS FLXS25BAVMB FLXS35BAVMB FLXS50BAVMB FLXS60BAVMB Piping Liquid (OD) Diameter 6.35 6.35 connections (OD) Diameter 12.7 12.7 (OD) Drain Diameter (OD) Heat Insulation Both liquid and gas pipes Air Filter Removable/washable/Mildew proof... -
Page 6: Options
Anti-theft protection for remote control KKF917AA4 (1) Wiring adapter is also required for each indoor unit. (2) Wiring adapter supplied by Daikin. Time clock and other devices: field supply. (3) For DIII-NET adapter • Split Sky Air • Indoor Units... -
Page 7: Control Systems
• Indoor Units • R410A • FLXS-BAVMB Control systems FLK/XS -B <ARC433A5, A6> Signal transmitter: OUTDOOR UNIT SILENT button: • It sends signals to the indoor unit. SILENT operation Display: FAN setting button: • It displays the current settings. (In this illustration, each •... -
Page 8: Dimensional Drawing & Centre Of Gravity
• Indoor Units • R410A • FLXS-BAVMB Dimensional drawing & centre of gravity 5 - 1 Dimensional drawing unit (mm) FLK/XS25-35-50-60B Floor level installation Required space Air flow (indoor) The mark (Y) shows piping direction (for performance and maintenance) Rear... -
Page 9: Centre Of Gravity
• Indoor Units • R410A • FLXS-BAVMB Dimensional drawing & centre of gravity 5 - 2 Centre of gravity FLK/XS-B 4D027653C • Split Sky Air • Indoor Units... -
Page 10: Piping Diagram
• Indoor Units • R410A • FLXS-BAVMB Piping diagram FLK/XS25-35-50-60B Indoor unit FLX(K)S25B J 9.5 J 9.5 J 6.4 FLX(K)S35B FLX(K)S50B J 12.7 J 12.7 J 9.5 FLX(K)S60B Heat exchanger Thermistor on heat exchanger Field piping Sirocco fan (6.4Cut) Field piping... -
Page 11: Wiring Diagram
• Indoor Units • R410A • FLXS-BAVMB Wiring diagram 7 - 1 Wiring diagram FLK/XS25-35-50-60B Caution: Notice that operation will restart automatically when the main power supply is turned off and then turned on again. Outdoor Transmission circuit Field wiring... -
Page 12: Sound Data
• Indoor Units • R410A • FLXS-BAVMB Sound data 8 - 1 Sound level data Cooling only Sound pressure level 230V, 50Hz Sound power level Model (Cooling) Cooling Measuring location Location of microphone FLKS25B FLKS35B FLKS50B FLKS60B Heat pump Sound pressure level... -
Page 13: Sound Pressure Spectrum
• Indoor Units • R410A • FLXS-BAVMB Sound data 8 - 2 Sound pressure spectrum FLXS25B (Cooling) FLXS35B (Cooling) approximate approximate threshold hearing threshold hearing for for continuous noise continuous noise 3D035246A Octave band center frequency (Hz) 3D035245A Octave band center frequency (Hz) - Page 14 • Indoor Units • R410A • FLXS-BAVMB Sound data 8 - 2 Sound pressure spectrum FLXS25B (Heating) FLXS35B (Heating) approximate approximate threshold hearing threshold hearing for continuous noise for continuous noise 3D035245A Octave band center frequency (Hz) 3D035246A Octave band center frequency (Hz)
-
Page 15: Installation
• Indoor Units • R410A • FLXS-BAVMB Installation 9 - 1 Installation method There should be no space between Space for installation work. Min. ceiling and the unit. (200mm) Space for installation work. Min. (200mm) Air filters 50 mm or more from walls (on... - Page 16 • Indoor Units • R410A • FLXS-BAVMB Installation 9 - 1 Installation method Ceiling mounting Rear side piping hole J65 mm Local drain pipe Ceiling Ceiling Wall *1 Determine the position of the feed-through hole so that the local piping is placed in a Rear side drain hose hole J40 mm downward sloping direction.
- Page 17 Daikin Europe N.V. explicitly rejects any liability for any direct Daikin Europe N.V. is approved by LRQA for its Quality Daikin Europe N.V. is participating in the or indirect damage, In the broadest sense, arising from Management System in accordance with the ISO9001 EUROVENT Certification Programme.
