Installation

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the
monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.
• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall
mount unit, Stand, etc.)
• For correct installation and mounting it is strongly recommended to use a trained, authorized
dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury
to the installer.
Product warranty does not cover damage caused by improper installation.
CAUTION
• Install the device following the installation manual of the optional accessory.
• Install the device in a stable and level environment that is strong enough to support the weight.
• Use the specified clasps for installing.
• After installation, take appropriate measures to prevent the plasma from tipping over or falling.
• Make sure to move or install the device with more than one person(s).
* Use only a mounting kit or stand recommended by the manufacturer and listed as an accessory.

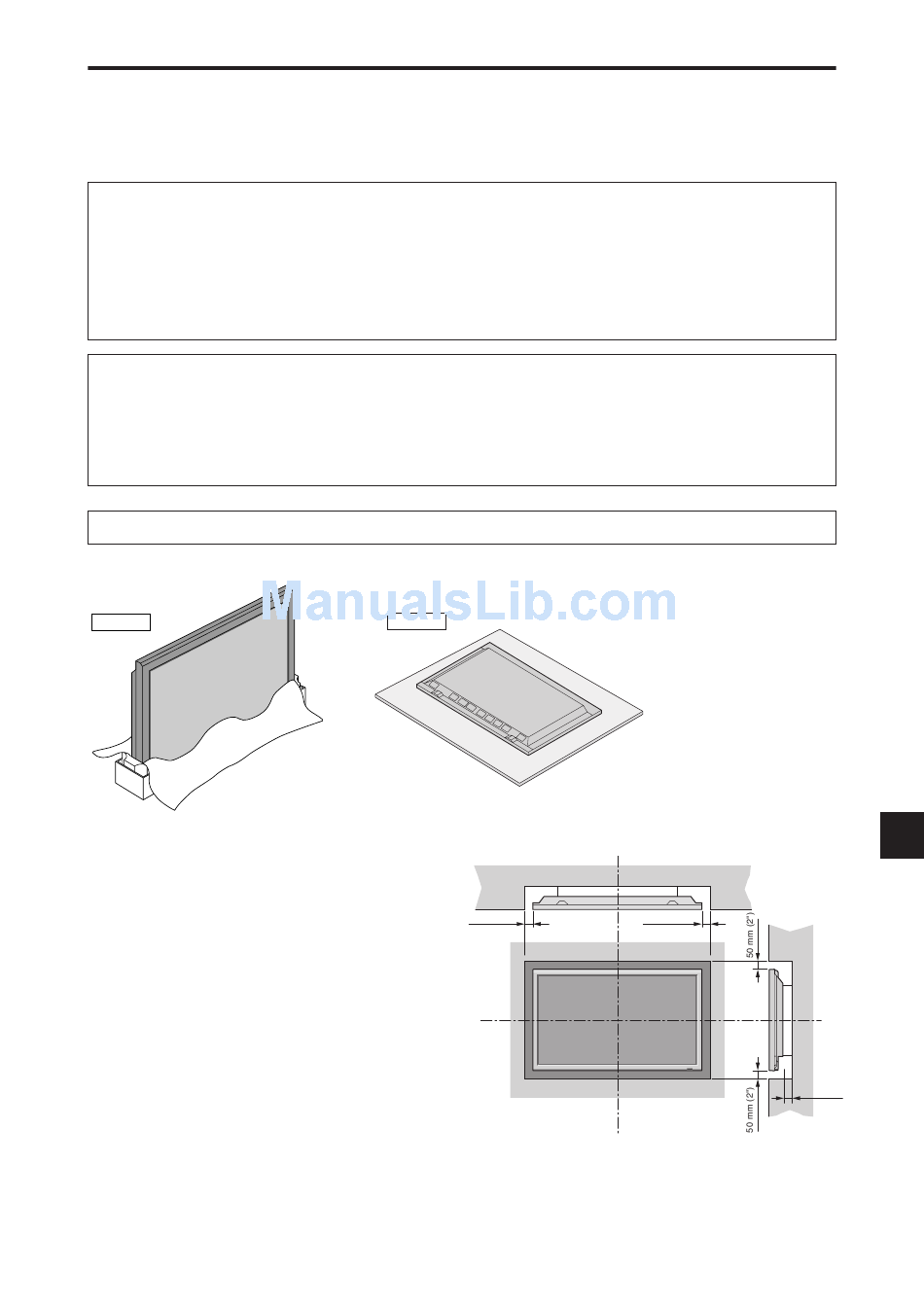

Drawing A
Ventilation Requirements for
enclosure mounting
To allow heat to disperse, leave space between surrounding
objects as shown on the diagram when installing.
Drawing B
50 mm (2")
En-5
Wall
50 mm (2")
Wall
50 mm (2")
