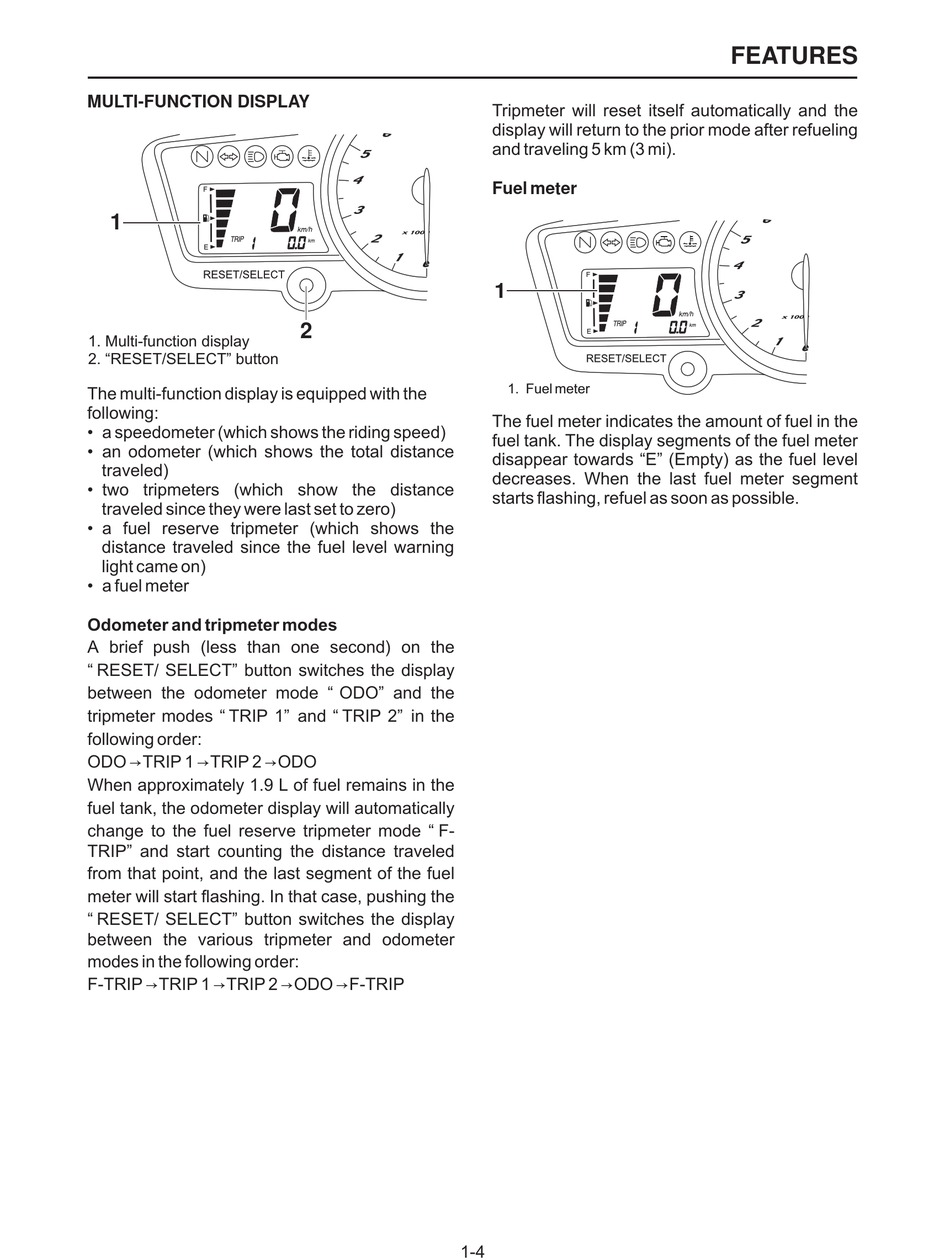

MULTI-FUNCTION DISPLAY

1
1. Multi-function display
2. "RESET/SELECT" button
The multi-function display is equipped with the
following:
• a speedometer (which shows the riding speed)
• an odometer (which shows the total distance
traveled)
• two tripmeters (which show the distance
traveled since they were last set to zero)
• a fuel reserve tripmeter (which shows the
distance traveled since the fuel level warning
light came on)
• a fuel meter
Odometer and tripmeter modes
A brief push less than one second on the (
" RESET SELECT" button switches the display /
between the odometer mode
tripmeter modes TRIP "
following order
:
ODO TRIP → 1 → TRIP 2 →
When approximately 1. 9 L of fuel remains in the
fuel tank the odometer display will automatically ,
change to the fuel reserve tripmeter mode F
TRIP" and start counting the distance traveled
from that point and the last segment of the fuel ,
meter will start flashing In that case pushing the .
" RESET SELECT" button switches the display /
between the various tripmeter and odometer
modes in the following order
F TRIP TRIP - → 1 → TRIP
2
)
" ODO" and the
1" and TRIP " 2" in the
ODO
" -
,
:
2 → ODO F TRIP → -
Tripmeter will reset itself automatically and the
display will return to the prior mode after refueling
and traveling 5 km (3 mi).
Fuel meter
1
1. Fuel meter
The fuel meter indicates the amount of fuel in the
fuel tank. The display segments of the fuel meter
disappear towards "E" (Empty) as the fuel level
decreases. When the last fuel meter segment
starts flashing, refuel as soon as possible.
