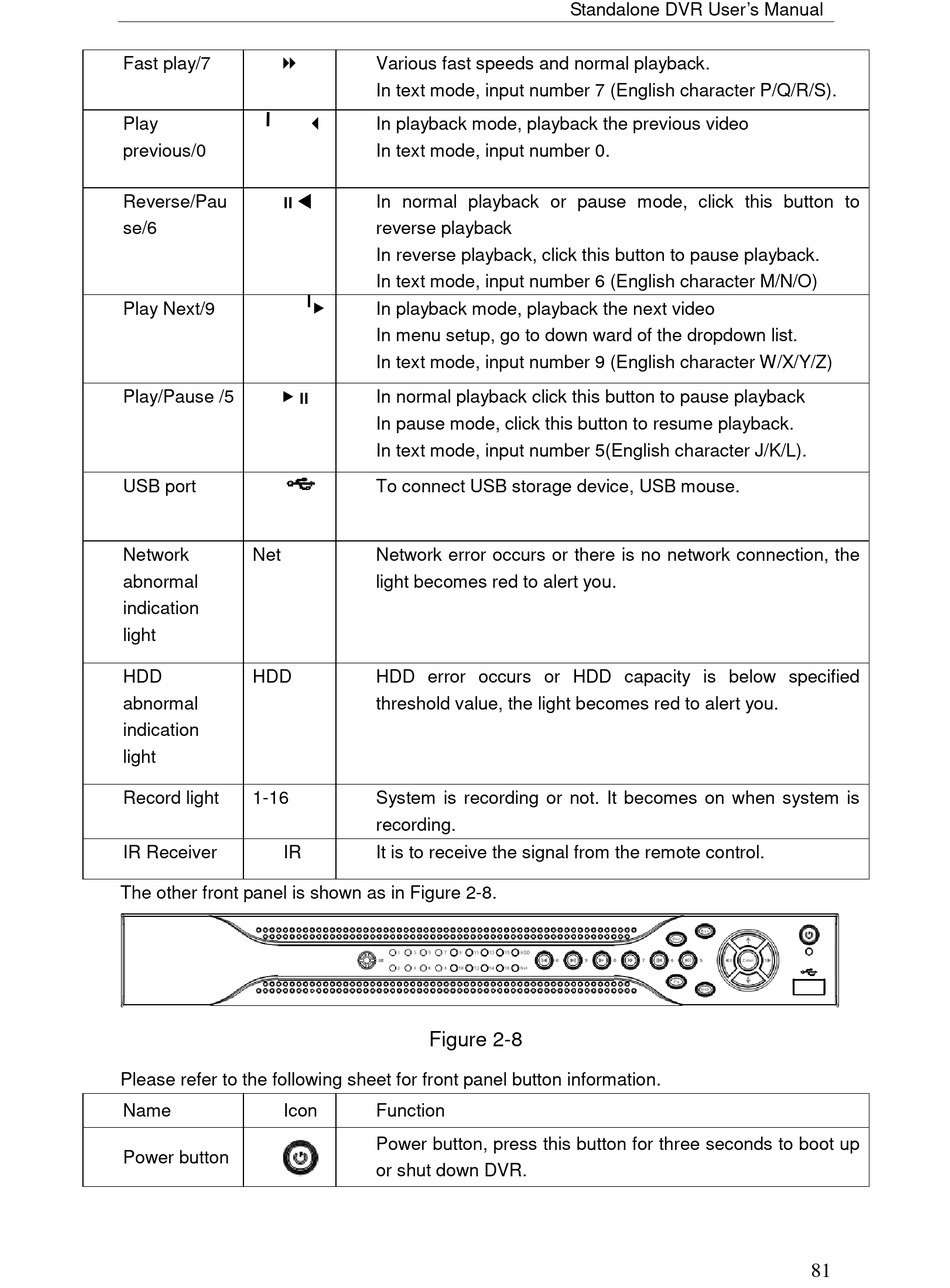

Dahua Smart Box Series User Manual page 91

Fast play/7
Play
previous/0
Reverse/Pau ⊳
se/6
Play Next/9
Play/Pause /5
USB port
Network Net
abnormal
indication
light
HDD HDD
abnormal
indication
light
Record light 1-16
IR Receiver IR
The other front panel is shown as in Figure 2-8.
Please refer to the following sheet for front panel button information.
Name Icon
Power button
Various fast speeds and normal playback.
In text mode, input number 7 (English character P/Q/R/S).
In playback mode, playback the previous video
In text mode, input number 0.
In normal playback or pause mode, click this button to
reverse playback
In reverse playback, click this button to pause playback.
In text mode, input number 6 (English character M/N/O)
In playback mode, playback the next video
In menu setup, go to down ward of the dropdown list.
In text mode, input number 9 (English character W/X/Y/Z)
.
In normal playback click this button to pause playback
In pause mode, click this button to resume playback.
In text mode, input number 5(English character J/K/L).
To connect USB storage device, USB mouse.
Network error occurs or there is no network connection, the
light becomes red to alert you.
HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.
System is recording or not. It becomes on when system is
recording.
It is to receive the signal from the remote control.
Figure 2-8
Function
Power button, press this button for three seconds to boot up
or shut down DVR.
Standalone DVR User's Manual
81
