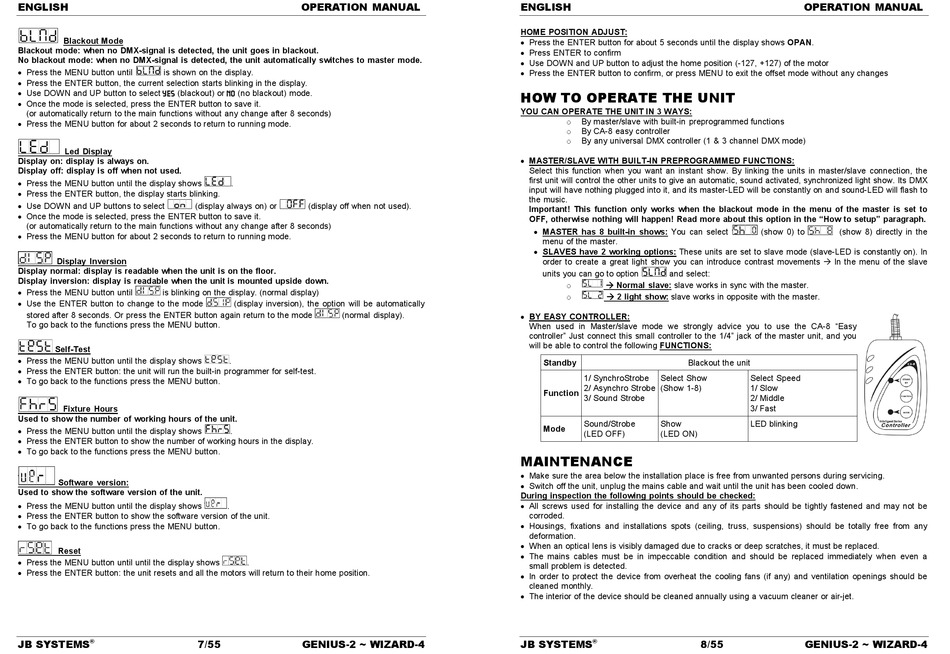

ENGLISH
Blackout Mode
Blackout mode: when no DMX-signal is detected, the unit goes in blackout.
No blackout mode: when no DMX-signal is detected, the unit automatically switches to master mode.
 Press the MENU button until
is shown on the display.
 Press the ENTER button, the current selection starts blinking in the display.
 Use DOWN and UP button to select Y E S (blackout) or n o (no blackout) mode.
 Once the mode is selected, press the ENTER button to save it.
(or automatically return to the main functions without any change after 8 seconds)
 Press the MENU button for about 2 seconds to return to running mode.
Led Display
Display on: display is always on.
Display off: display is off when not used.
 Press the MENU button until the display shows
 Press the ENTER button, the display starts blinking.
 Use DOWN and UP buttons to select
(display always on) or
 Once the mode is selected, press the ENTER button to save it.
(or automatically return to the main functions without any change after 8 seconds)
 Press the MENU button for about 2 seconds to return to running mode.
Display Inversion
Display normal: display is readable when the unit is on the floor.
Display inversion: display is readable when the unit is mounted upside down.
 Press the MENU button until
is blinking on the display. (normal display)
 Use the ENTER button to change to the mode
stored after 8 seconds. Or press the ENTER button again return to the mode
To go back to the functions press the MENU button.
Self-Test
 Press the MENU button until the display shows
 Press the ENTER button: the unit will run the built-in programmer for self-test.
 To go back to the functions press the MENU button.
Fixture Hours
Used to show the number of working hours of the unit.
 Press the MENU button until the display shows
 Press the ENTER button to show the number of working hours in the display.
 To go back to the functions press the MENU button.
Software version:
Used to show the software version of the unit.
 Press the MENU button until the display shows
 Press the ENTER button to show the software version of the unit.
 To go back to the functions press the MENU button.
Reset
 Press the MENU button until until the display shows
 Press the ENTER button: the unit resets and all the motors will return to their home position.
JB SYSTEMS
®
OPERATION MANUAL
.
(display off when not used).
(display inversion), the option will be automatically
(normal display).
.
.
.
.
7/55 GENIUS-2 ~ WIZARD-4
ENGLISH
HOME POSITION ADJUST:
 Press the ENTER button for about 5 seconds until the display shows OPAN.
 Press ENTER to confirm
 Use DOWN and UP button to adjust the home position (-127, +127) of the motor
 Press the ENTER button to confirm, or press MENU to exit the offset mode without any changes

HOW TO OPERATE THE UNIT

YOU CAN OPERATE THE UNIT IN 3 WAYS:
By master/slave with built-in preprogrammed functions
o
o By CA-8 easy controller
o By any universal DMX controller (1 & 3 channel DMX mode)
 MASTER/SLAVE WITH BUILT-IN PREPROGRAMMED FUNCTIONS:
Select this function when you want an instant show. By linking the units in master/slave connection, the
first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX
input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to
the music.
Important! This function only works when the blackout mode in the menu of the master is set to
OFF, otherwise nothing will happen! Read more about this option in the "How to setup" paragraph.
 MASTER has 8 built-in shows: You can select
menu of the master.
 SLAVES have 2 working options: These units are set to slave mode (slave-LED is constantly on). In
order to create a great light show you can introduce contrast movements  In the menu of the slave
units you can go to option and select:
o  Normal slave: slave works in sync with the master.
 2 light show: slave works in opposite with the master.
o
 BY EASY CONTROLLER:
When used in Master/slave mode we strongly advice you to use the CA-8 "Easy
controller" Just connect this small controller to the 1/4" jack of the master unit, and you
will be able to control the following FUNCTIONS:
Standby Blackout the unit
1/ SynchroStrobe Select Show
2/ Asynchro Strobe (Show 1-8)
Function
3/ Sound Strobe
Sound/Strobe Show
Mode
(LED OFF) (LED ON)

MAINTENANCE

 Make sure the area below the installation place is free from unwanted persons during servicing.
 Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.
During inspection the following points should be checked:
 All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
 Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
 When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
 The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
 In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be
cleaned monthly.
 The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
JB SYSTEMS
®
OPERATION MANUAL
(show 0) to (show 8) directly in the
Select Speed
1/ Slow
2/ Middle
3/ Fast
LED blinking
8/55 GENIUS-2 ~ WIZARD-4
