ENGLISH

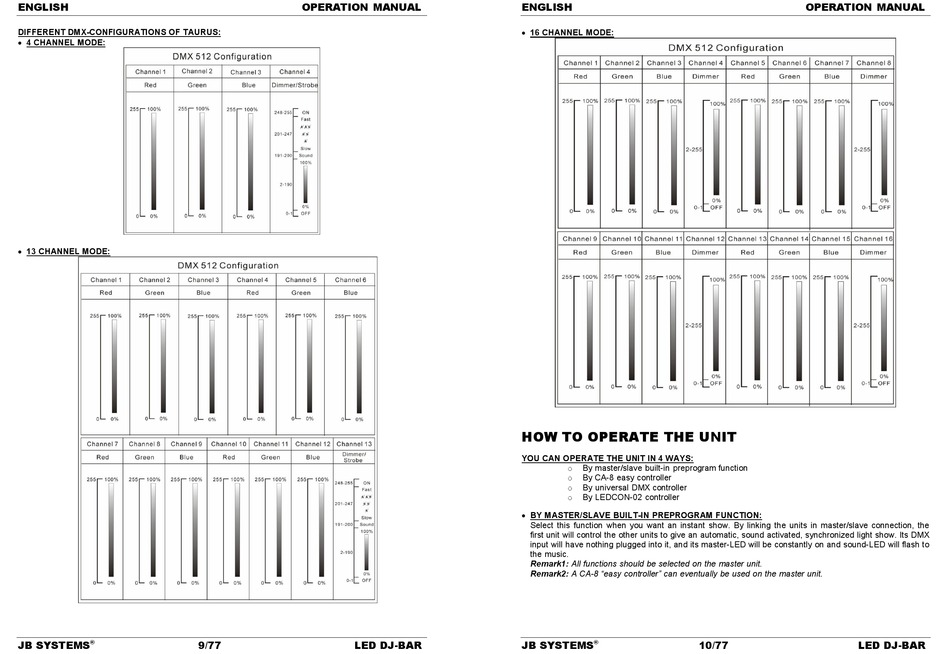

DIFFERENT DMX-CONFIGURATIONS OF TAURUS:
 4 CHANNEL MODE:
 13 CHANNEL MODE:
JB SYSTEMS
®
OPERATION MANUAL
9/77 LED DJ-BAR
ENGLISH
 16 CHANNEL MODE:

HOW TO OPERATE THE UNIT

YOU CAN OPERATE THE UNIT IN 4 WAYS:
o By master/slave built-in preprogram function
By CA-8 easy controller
o
By universal DMX controller
o
o By LEDCON-02 controller
 BY MASTER/SLAVE BUILT-IN PREPROGRAM FUNCTION:
Select this function when you want an instant show. By linking the units in master/slave connection, the
first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX
input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to
the music.
Remark1: All functions should be selected on the master unit.
Remark2: A CA-8 "easy controller" can eventually be used on the master unit.
JB SYSTEMS 10/77
®
OPERATION MANUAL
LED DJ-BAR
