Chapter 3
I/O Information
Trigger
NI PXI-8108 User Manual
The TRG connector is the software-controlled trigger connection for
routing PXI triggers to or from the backplane trigger bus.
Figure 3-7 shows the TRG connector location on the NI PXI-8108.
Table 3-8 lists and describes the trigger connector signals.

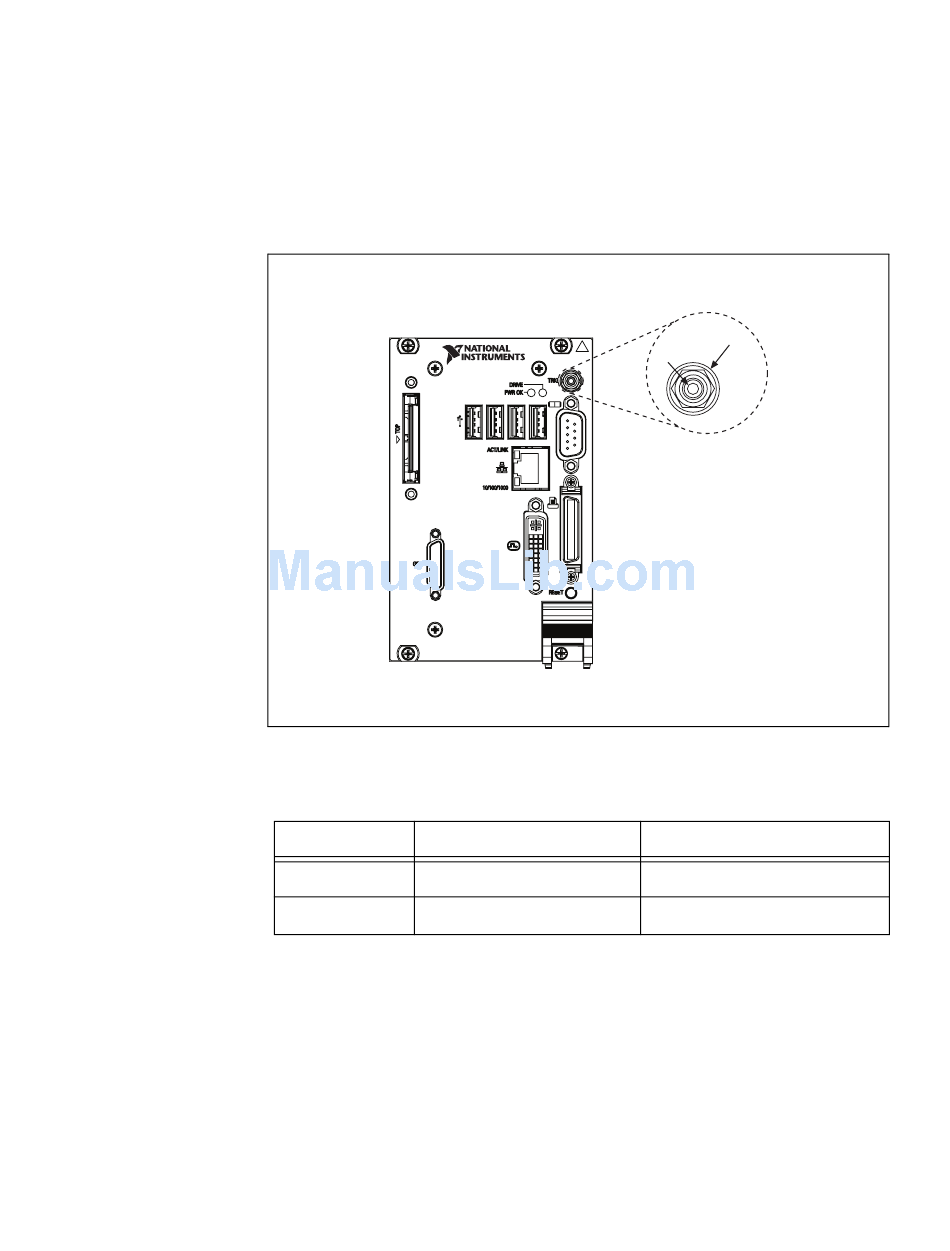

Figure 3-7. TRG Connector Location and Pinout
Pin
1
TRIG
2 (Shield)
GND
NI PXI-8108
Embedded Controller
Table 3-8. TRG Connector Signals
Signal Name
3-10
2
1
Signal Description
Trigger
Ground
ni.com
