GPIB (IEEE 488.2)

© National Instruments Corporation
Figure 3-8 shows the location and pinouts for the GPIB connector on
the NI PXI-8108. Table 3-9 lists and describes the GPIB connector signals.
National Instruments provides a GPIB mating connector, part number
183285-0R2.
14
GPIB
25

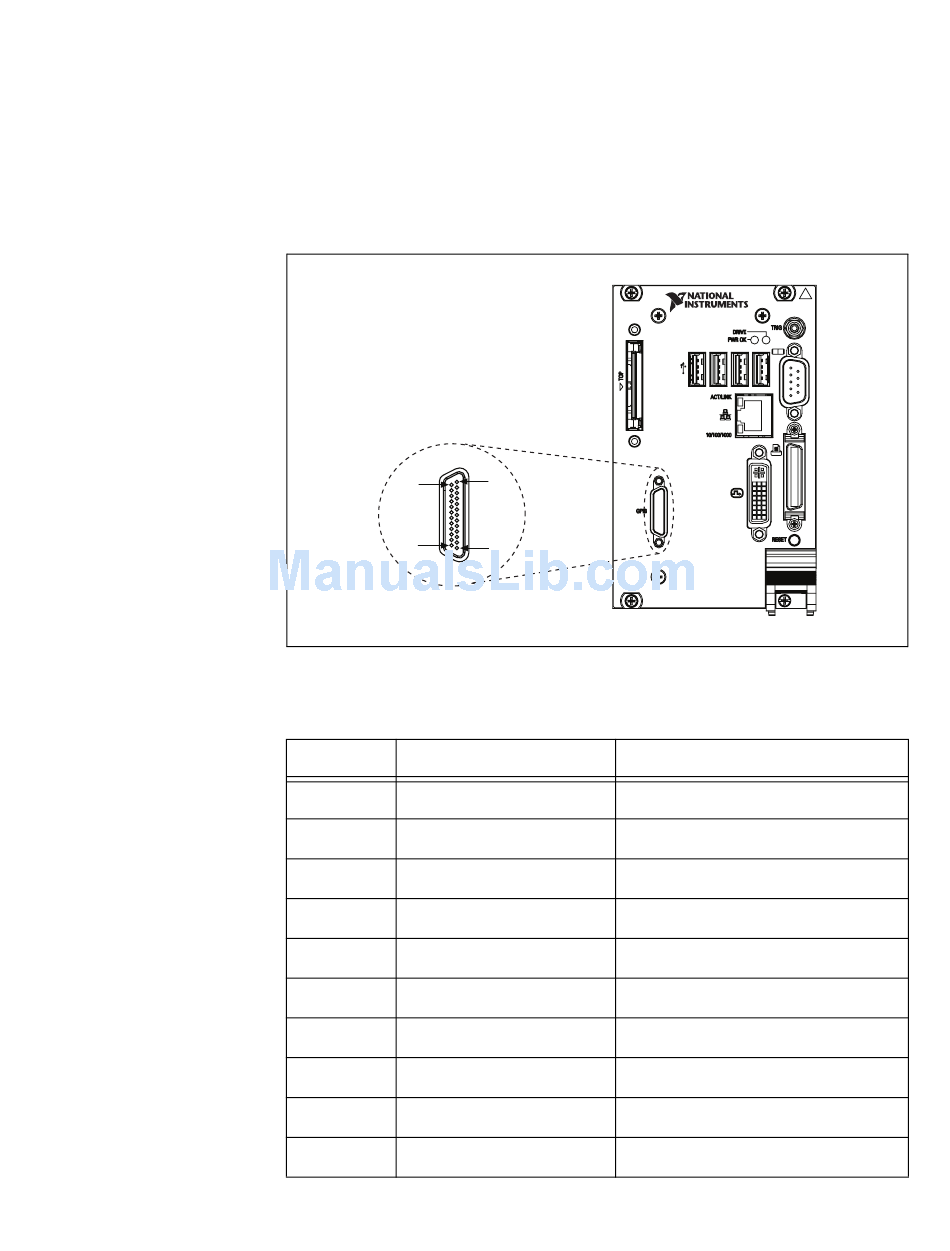

Figure 3-8. GPIB Connector Location and Pinout
Table 3-9. GPIB Connector Signals
Pin Signal Name
1 DIO1#
2 DIO2#
3 DIO3#
4 DIO4#
5 EOI#
6 DAV#
7 NRFD#
8 NDAC#
9 IFC#
10 SRQ#
1
13
Data Bit 1
Data Bit 2
Data Bit 3
Data Bit 4
End or Identify
Data Valid
Not Ready for Data
Not Data Accepted
Interface Clear
Service Request
3-11
Chapter 3 I/O Information
NI PXI-8108
Embedded Controller
Signal Description
NI PXI-8108 User Manual
