Chapter 2
Installation and Configuration
Chassis Configuration
Basic PXI System Configuration
NI PXI-8108 User Manual
Configuration of the PXI system is handled through Measurement &
Automation Explorer (MAX), included with the software pre-installed
on your controller. MAX creates the
the layout and parameters of your PXI system.
The configuration steps for single or multiple-chassis systems are the same.
An example of a multichassis configuration is shown in Figure 2-6.

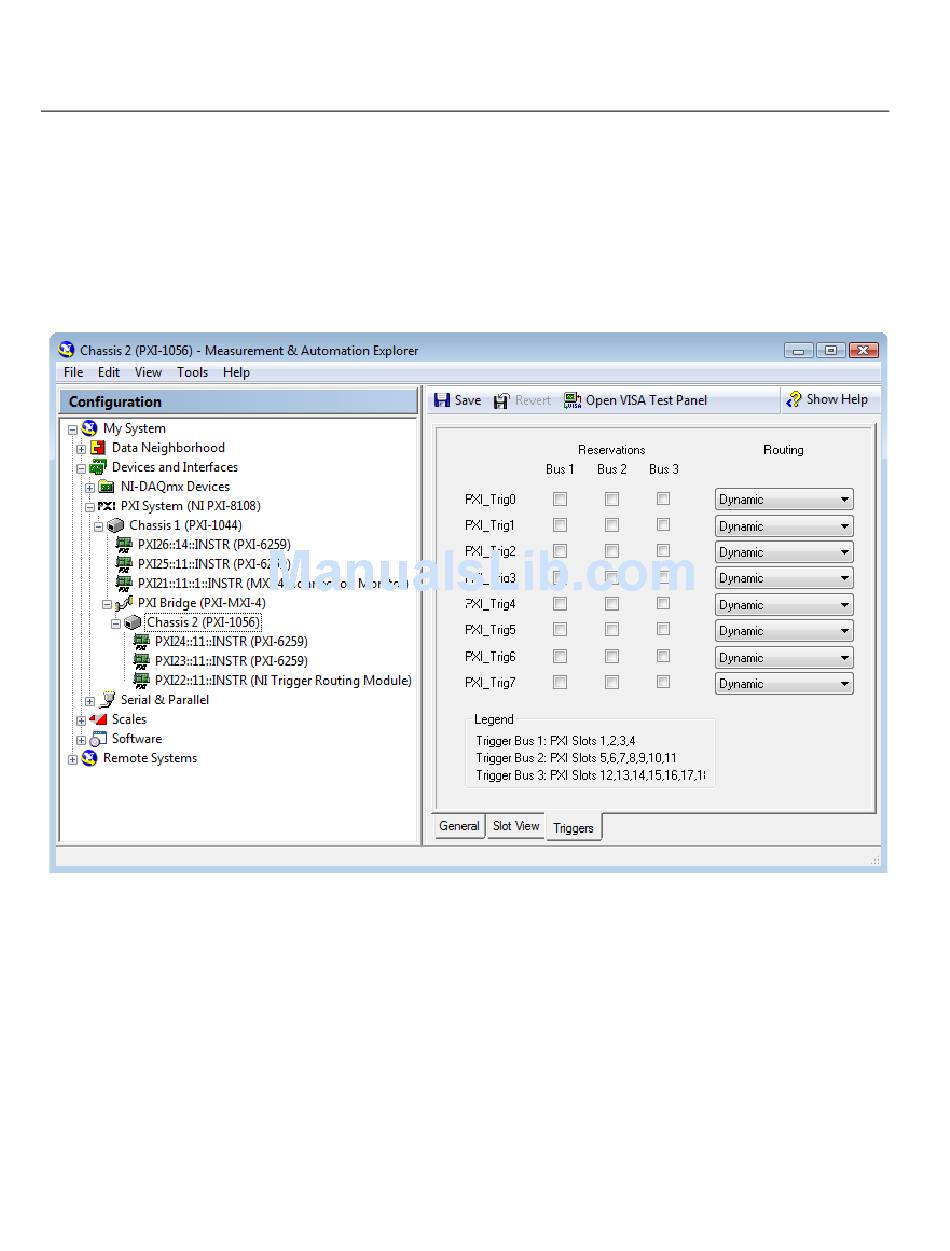

Figure 2-6. Multichassis Configuration in MAX
1.
Launch MAX.
2.
In the Configuration tree, click the Devices and Interfaces branch to
expand it.
pxisys.ini
2-22
file, which defines
ni.com
