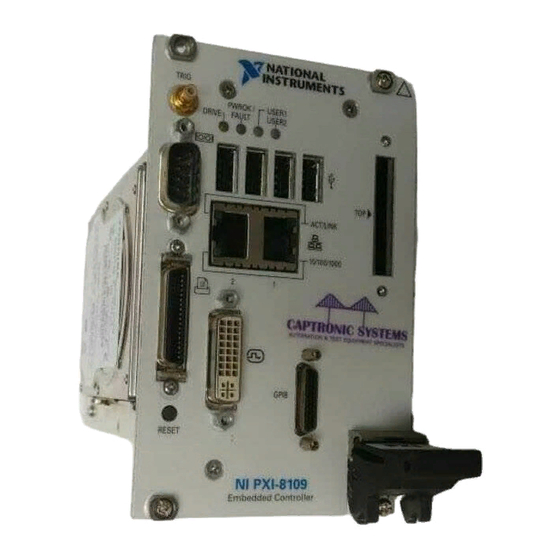

National Instruments NI PXI-8109 User Manual

Hide thumbs Also See for NI PXI-8109:
Table of Contents

Advertisement

Quick Links

Download this manual
PXI-8221

Advertisement

Table of Contents
loading

Related Manuals for National Instruments NI PXI-8109

Summary of Contents for National Instruments NI PXI-8109

  • Page 1 PXI-8221...
  • Page 2 NI PXI-8109 User Manual NI PXI-8109 User Manual July 2012 373172C-01...
  • Page 3 11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: 512 683 0100 For further support information, refer to the Technical Support and Professional Services appendix. To comment on National Instruments documentation, refer to the National Instruments Web site at and enter ni.com/info the Info Code feedback ©...
  • Page 4 Warranty The NI PXI-8109 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period.
  • Page 5 CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING PLATFORMS AND BECAUSE A USER OR APPLICATION DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT EVALUATED OR CONTEMPLATED BY NATIONAL INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY...
  • Page 6 Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules.

  • Page 7: Table Of Contents

    Introduction Benefits of PXI ......................1-1 NI PXI-8109 ........................1-2 Description ......................1-2 Functional Overview ..................1-2 NI PXI-8109 Functional Description ..........1-2 National Instruments Software ..................1-4 Chapter 2 Installation and Configuration Installing the NI PXI-8109 ....................2-1 How to Remove the Controller from the PXI Chassis ........2-4 BIOS Setup ........................2-5...
  • Page 8 DVI-I ....................... 3-3 COM1......................3-5 Ethernet ......................3-6 Parallel Port..................... 3-7 Universal Serial Bus..................3-9 Trigger......................3-10 GPIB (IEEE 488.2) ..................3-11 ExpressCard/34 Slot..................3-12 Front Panel Features ...................... 3-14 Data Storage ........................3-14 NI PXI-8109 User Manual viii ni.com...
  • Page 9 Common Configuration Questions General Questions......................4-1 Boot Options ........................4-1 Cables and Connections....................4-2 Software Driver Installation...................4-3 Upgrade Information......................4-4 PXI Configuration......................4-7 Chapter 5 Troubleshooting Appendix A Specifications Appendix B Technical Support and Professional Services Glossary Index © National Instruments NI PXI-8109 User Manual...

  • Page 10: About This Manual

    National Instruments PXI-8109 embedded controller kit. How to Use the Documentation Set Begin by reading the NI PXI-8109 Installation Guide, a brief quick-start guide that describes how to install and get started with your controller. This manual, the NI PXI-8109 User Manual, contains more details about changing the installation or configuration from the defaults and using the hardware.

  • Page 11: Related Documentation

    ExpressCard Standard, Release 1.0, PCMCIA • Universal Serial Bus (USB) Specification, Revision 2.0 • Digital Visual Interface (DVI) Specification, Revision 1.0 • IEEE Std 488.1-2003, IEEE Standard for Higher Performance Protocol for the Standard Digital Interface for Programmable Instrumentation NI PXI-8109 User Manual ni.com...

  • Page 12: Introduction

    Additionally, PXI meets the more specific needs of instrumentation users by adding an integrated trigger bus and reference clock for multiple-board synchronization, a star trigger bus for very precise timing, and local buses for side-band communication between adjacent peripherals. © National Instruments NI PXI-8109 User Manual...

  • Page 13: Ni Pxi-8109

    NI PXI-8109 embedded computer. NI PXI-8109 Functional Description The NI PXI-8109 is a modular PC in a PXI 3U-size form factor. Figure 1-1 is a functional block diagram of the NI PXI-8109. Following the diagram is a description of each logic block shown.
  • Page 14 Connector Controller Triggers Figure 1-1. NI PXI-8109 Block Diagram The NI PXI-8109 consists of the following logic blocks on the CPU module and the I/O module. The CPU module has the following logic blocks: • FPGA 988A Socket is the socket definition for the Intel Core i7 processor.

  • Page 15: National Instruments Software

    The PXI Connector connects the NI PXI-8109 to the PXI/CompactPCI backplane. • The Super I/O block represents the other peripherals supplied by the NI PXI-8109. The NI PXI-8109 has one serial port, and an ECP/EPP parallel port. • Both the 82577 and 82574 Gigabit Enet ports connect to either 10 Mbit, 100 Mbit, or 1,000 Mbit Ethernet interfaces.
  • Page 16 RTSI or PXI synchronization, self-calibration, messaging, and acquiring data to extended memory. For more information visit ni.com/daq National Instruments’ Modular Instruments use specialized drivers suited to each product’s specialization. Express VIs provide customized, interactive programming of instruments in a single interface and soft front panels provide an interface for testing the functionality of each instrument with no programming required.
  • Page 17 Chapter 1 Introduction NI-VISA is the National Instruments implementation of the VISA specification. VISA is a uniform API for communicating and controlling USB, Serial, GPIB, PXI, VXI, and various other types of instruments. This API aids in the creation of portable applications and instrument drivers.

  • Page 18: Installation And Configuration

    Consult your PXI chassis user manual for specific instructions and warnings. Plug in your chassis before installing the NI PXI-8109. The power cord grounds the chassis and protects it from electrical damage while you install the module. (Make sure the power switch is turned off.)
  • Page 19 1 Protective Screw Cap (4x) Figure 2-1. Removing Protective Screw Caps Make sure the injector/ejector handle is in its downward position. Align the NI PXI-8109 with the card guides on the top and bottom of the system controller slot. Caution Do not raise the injector/ejector handle as you insert the NI PXI-8109.
  • Page 20 Raise the injector/ejector handle until the module firmly seats into the backplane receptacle connectors. The front panel of the NI PXI-8109 should be even with the front panel of the chassis. Tighten the four bracket-retaining screws on the top and bottom of the front panel to secure the NI PXI-8109 to the chassis.

  • Page 21: How To Remove The Controller From The Pxi Chassis

    Chapter 2 Installation and Configuration Figure 2-2 shows an NI PXI-8109 installed in the system controller slot of a National Instruments PXI-1042Q chassis. You can place PXI devices in any other slots. 1 NI PXI-1042Q Chassis 2 NI PXI-8109 Controller 3 Injector/Ejector Rail Figure 2-2.

  • Page 22: Bios Setup

    The BIOS setup program includes menus for configuring settings and enabling NI PXI-8109 controller features. Most users do not need to use the BIOS setup program, as the NI PXI-8109 controller ships with default settings that work well for most configurations.

  • Page 23: Main Menu

    The Main menu reports the following configuration information: • BIOS Version and Build Date—These values indicate the version of the NI PXI-8109 controller BIOS and the date on which the BIOS was built. • Processor Type, Processor Base Frequency, and Processor Core—These values indicate the type of processor used in the...

  • Page 24: Sata Configuration Submenu

    AHCI mode and enable IDE mode so that non-compatible OSes function correctly. The default value is AHCI. • Internal Drive (SATA)—This item displays the onboard SATA drive detected in the system. © National Instruments NI PXI-8109 User Manual...

  • Page 25: Cpu Configuration Submenu

    The default value is Enabled when booting LabVIEW Real-Time, enabled when booting other OSs. Enabling hardware prefetching can increase system performance for some applications, but can cause control algorithms to behave less deterministically. NI PXI-8109 User Manual ni.com...

  • Page 26: Video Configuration Submenu

    ExpressCard Resources—This setting enables or disables the setting • of the Reserved Buses, Reserved Memory, and Reserved I/O © National Instruments NI PXI-8109 User Manual...

  • Page 27: Usb Configuration Submenu

    Control, Bulk, and Interrupt USB transfers. The default value for this setting is 20 seconds. • Device Reset Timeout—This setting specifies the number of seconds the Power-On Self Test will wait for a USB mass storage device to start. The default is 20 seconds. NI PXI-8109 User Manual 2-10 ni.com...

  • Page 28: Serial/Parallel Port Configuration Submenu

    (IRQ) information for the onboard serial port. • Change Settings—This setting changes the base address and interrupt request level (IRQ) information for the onboard serial port. The default value is Auto. © National Instruments 2-11 NI PXI-8109 User Manual...

  • Page 29: Parallel Port Configuration Submenu

    The default is Use Switch Setting. • LabVIEW RT Configuration Overrides—Use this setting to access the LabVIEW RT Configuration Overrides submenu. Refer to the LabVIEW RT Configuration Overrides Submenu section for more information. NI PXI-8109 User Manual 2-12 ni.com...

  • Page 30: Current Hardware Switch Settings

    Boot Device #1, followed by Boot Device #2, and Boot Device #3. If multiple boot devices are not present, the BIOS setup will not display all of these configuration © National Instruments 2-13 NI PXI-8109 User Manual...

  • Page 31: Boot Settings Configuration Submenu

    BIOS setup menu keypress (the <Delete> key). The default value is 2. Bootup NumLock State—This setting specifies the power-on state of • the keyboard NumLock setting. The default value is On. NI PXI-8109 User Manual 2-14 ni.com...

  • Page 32: Hard Drive Bbs Priorities Submenu

    User’s password is set, then this is a power on password and must be entered to boot or enter the BIOS setup program. In the BIOS setup program, the User will have Administrator rights. By default, no password is specified. © National Instruments 2-15 NI PXI-8109 User Manual...

  • Page 33: Save & Exit Menu

    If BIOS setup options have been changed and saved, a reboot will be required and the boot override selection will not be valid. NI PXI-8109 User Manual 2-16 ni.com...

  • Page 34: Bios Diagnostic Utilities

    Note If the memory test fails, the controller is not permitted to boot, and the user is instructed to turn off the controller and replace the memory. © National Instruments 2-17 NI PXI-8109 User Manual...

  • Page 35: System Cmos

    Chapter 2 Installation and Configuration System CMOS The NI PXI-8109 contains memory back up by a battery to store BIOS configuration information. Complete the following steps to clear the CMOS contents: Power off the chassis. Remove the controller from the chassis.

  • Page 36: Labview Rt Installation

    The label also can be removed and placed on the front of the controller for easier access. Click on the appropriate PXI controller entry to access the Network Settings tab in the right pane view. © National Instruments 2-19 NI PXI-8109 User Manual...

  • Page 37: Labview Rt Configuration Switches

    If you are not using LabVIEW RT, these switches should remain in the OFF position. The controller reads these switches only after a system reset. Note You must reboot the controller for any changes to take place. NI PXI-8109 User Manual 2-20 ni.com...
  • Page 38 Chapter 2 Installation and Configuration The NI PXI-8109 controller includes the following LabVIEW RT configuration switches: • Switch 1—Boot LabVIEW RT: Set this switch to ON to boot LabVIEW RT. Switch 2—Boot Safe Mode: Set this switch to ON to boot LabVIEW •...

  • Page 39: Drivers And Software

    Your hard drive includes a directory called in its root that images contains software and soft copies of manuals for the peripherals. The directory structure under the directory is logically organized images into several levels. NI PXI-8109 User Manual 2-22 ni.com...

  • Page 40: Pxi Features

    PXI Features PXI Trigger Connectivity The SMB connector on the NI PXI-8109 front panel can connect to or from any PXI backplane trigger line. A trigger allocation process is needed to prevent two resources from connecting to the same trigger line, resulting in the trigger being double-driven and possibly damaging the hardware.

  • Page 41: Basic Pxi System Configuration

    NI-VISA can recognize. The PXI specification allows for many combinations of PXI chassis and system modules. To assist system integrators, PXI chassis and system module manufacturers must document their products’ capabilities. NI PXI-8109 User Manual 2-24 ni.com...

  • Page 42: Upgrading Ram

    PXI specification at www.pxisa.org Upgrading RAM You can change the amount of installed RAM on the NI PXI-8109 by upgrading the SO-DIMMs. To upgrade the RAM, remove the NI PXI-8109 from the PXI chassis. To optimize both memory capacity and system performance, use the same size and speed memory module in each of the two module slots.

  • Page 43: Hard Drive Recovery

    Installation and Configuration 1 DDR3 SO-DIMM Module in Lower Socket 2 DDR3 SO-DIMM Sockets Figure 2-6. Installing a DDR3 SO-DIMM in an NI PXI-8109 Controller Hard Drive Recovery NI PXI-8109 controllers include two methods of restoring the original factory condition of your hard drive. Hard drive-based recovery stores a factory backup on a separate portion of your hard drive allowing you to restore your controller without additional media.

  • Page 44: Installing An Os

    Installing from a USB CD/DVD-ROM The NI PXI-8109 supports the installation of Windows 7 or Windows XP from a USB CD/DVD-ROM. As an alternative to a USB CD/DVD-ROM drive, you can use an external SCSI CD-ROM with a PXI-SCSI adapter.

  • Page 45: Removing An Expresscard

    Slide the card out of the slot. Caution To avoid data loss and other potential issues, stop communication with your ExpressCard device before removing it from the NI PXI-8109. In Windows, use the Safely Remove Hardware tool to safely stop the ExpressCard. Power Budgeting The NI PXI-8109 is a high power, high performance controller.

  • Page 46: I/O Information

    I/O Information Front Panel Connectors Table 3-1 lists various I/O interfaces and their corresponding NI PXI-8109 external connectors, bus interfaces, and functions. Table 3-1. NI PXI-8109 Peripherals Overview Peripheral External Connector Description Video DVI-I ATI Radeon E2400 Embedded GPU (24-pin DSUB)

  • Page 47: Front Panel

    Figure 3-1 shows the front panel layout and dimensions of the NI PXI-8109. Dimensions are in inches [millimeters]. 4.392 [111.56] 3.727 [94.66] 3.553 [90.26] 3.390 [86.11] 3.002 [76.25] 2.064 [52.43] 1.650 [41.91] 1.256 [31.9] .000 [0] Figure 3-1. NI PXI-8109 Front Panel Layout and Dimensions NI PXI-8109 User Manual ni.com...

  • Page 48: Dvi-I

    Chapter 3 I/O Information DVI-I Figure 3-2 shows the location and pinouts for the DVI-I connector on the NI PXI-8109. Table 3-2 lists and describes the DVI-I connector signals. NI PXI-8109 Embedded Controller Figure 3-2. DVI-I Connector Location and Pinout Table 3-2.
  • Page 49 Ground (for +5 V) Hot Plug Detect TMDS Data0– TMDSData0+ TMDS Data0/5 Shield Reserved Reserved TMDS Clock Shield TMDS Clock+ TMDS Clock– Analog Red Analog Green Analog Blue Analog Horizontal Sync Analog GND Return: (analog R, G, B) NI PXI-8109 User Manual ni.com...

  • Page 50: Com1

    Chapter 3 I/O Information COM1 Figure 3-3 shows the location and pinouts for the COM1 connector on the NI PXI-8109. Table 3-3 lists and describes the COM1 connector signal. COM1 NI PXI-8109 Embedded Controller Figure 3-3. COM1 Connector Location and Pinout Table 3-3.

  • Page 51: Ethernet

    Chapter 3 I/O Information Ethernet Figure 3-4 shows the location and pinouts for the Ethernet connector on the NI PXI-8109. Table 3-4 lists and describes the Ethernet connector signals. Ethernet NI PXI-8109 Embedded Controller Figure 3-4. Ethernet Connector Location and Pinout Table 3-4.

  • Page 52: Parallel Port

    1000 Mbit/sec data rate is selected. Parallel Port Figure 3-5 shows the location and pinouts for the IEEE 1284 (parallel) connector on the NI PXI-8109. Table 3-6 lists and describes the IEEE 1284 connector signals. Parallel port adapter cables are available from National Instruments, part number 777169-01.
  • Page 53 Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 INIT# Initialize Printer STROBE# Strobe SLCTIN# Select Input AUTOFD# Auto Line Feed +5 V 19–35 Ground Not Connected NI PXI-8109 User Manual ni.com...

  • Page 54: Universal Serial Bus

    Chapter 3 I/O Information Universal Serial Bus Figure 3-6 shows the location and pinouts for the Universal Serial Bus (USB) connectors on the NI PXI-8109. Table 3-7 lists and describes the USB connector signals. NI PXI-8109 Embedded Controller Figure 3-6. USB Connector Location and Pinout Table 3-7.

  • Page 55: Trigger

    The TRIG connector is the software-controlled trigger connection for routing PXI triggers to or from the backplane trigger bus. Figure 3-7 shows the TRIG connector location on the NI PXI-8109. Table 3-8 lists and describes the trigger connector signals. NI PXI-8109 Embedded Controller Figure 3-7.

  • Page 56: Gpib (Ieee 488.2)

    I/O Information GPIB (IEEE 488.2) Figure 3-8 shows the location and pinouts for the GPIB connector on the NI PXI-8109. Table 3-9 lists and describes the GPIB connector signals. National Instruments provides a GPIB mating connector, part number 183285-0R2. GPIB...

  • Page 57: Expresscard/34 Slot

    18–25 Logic Ground ExpressCard/34 Slot The NI PXI-8109 controller is equipped with an ExpressCard/34 slot on the front panel, which provides I/O expansion and options for removable storage, Ethernet, and a variety of other I/O. Figure 3-9 shows the location and pinouts for the ExpressCard/34 slot on the NI PXI-8109.
  • Page 58 PE Presence REFCLK– Reference Clock – REFCLK+ Reference Clock + Ground PERn PE Data Receive – PERp PE Data Receive + Ground PETn PE Data Transmit – PETp PE Data Transmit + Ground © National Instruments 3-13 NI PXI-8109 User Manual...

  • Page 59: Front Panel Features

    Chapter 3 I/O Information Front Panel Features The NI PXI-8109 controller has the following front-panel features: • A system reset pushbutton (press the button to generate a reset to the controller) • Two front panel LEDs that show PC status –...

  • Page 60: Common Configuration Questions

    How do I check the configuration of the memory, hard drive, time/date, and so on? You can view these parameters in the BIOS setup. To enter the BIOS setup, reboot the NI PXI-8109 and press <Delete> during the memory tests. Refer to the Accessing BIOS Setup...

  • Page 61: Cables And Connections

    There are some limitations when booting from a USB device. Windows XP can be installed from a USB CD/DVD-ROM, but earlier versions of Windows cannot. The NI PXI-8109 BIOS configures the USB devices so that they will work in a DOS environment.

  • Page 62: Software Driver Installation

    How do I connect a standard 25-pin LPT cable to the NI PXI-8109? The NI PXI-8109 uses a type C LPT connector. Most parallel port devices use a type A connector. To use a device with a standard type A LPT connector, you need to use a type C-to-type A LPT adapter.

  • Page 63: Upgrade Information

    Chapter 4 Common Configuration Questions How do I install software from a CD? The compact size of the NI PXI-8109 does not allow for an integrated USB CD/DVD-ROM drive. If you are using Windows XP, you have the following options: •...
  • Page 64 Notes National Instruments has tested and verified that the DDR3 SO-DIMMs we sell work with the NI PXI-8109. We recommend you purchase your DDR3 SO-DIMM modules from National Instruments. Other off-the-shelf DDR3 SO-DIMM modules are not guaranteed to work properly.
  • Page 65 Chapter 4 Common Configuration Questions What is the purpose of the W1 jumper on the NI PXI-8109? 1 Default Position 2 Reserved Figure 4-3. The W1 Jumper on an NI PXI-8109 Controller The W1 jumper enables reserved features for National Instruments factory testing only.

  • Page 66: Pxi Configuration

    Chapter 4 Common Configuration Questions My NI PXI-8109 does not have an internal floppy drive. Is there a way to use an external drive? Yes. The NI PXI-8109 controller supports and can boot from USB floppy drives. Refer to the section for more information.

  • Page 67: Troubleshooting

    This chapter answers common troubleshooting questions you may have when using the NI PXI-8109 embedded computer. What if the NI PXI-8109 does not boot? Several problems can cause a controller not to boot. Here are some things to look for and possible solutions.
  • Page 68 Press <F9> to load BIOS defaults. Answer Y (Yes) to the verification prompt. Select Save and Exit Setup. As an alternative method, complete the following steps: Power off the chassis. Remove the controller from the chassis. NI PXI-8109 User Manual ni.com...
  • Page 69 Chapter 5 Troubleshooting Press the Clear CMOS button (SW2) as shown in Figure 5-1. Wait one second. Reinstall the controller in the chassis. Push-Button Switch SW2 Figure 5-1. Clearing the CMOS Contents © National Instruments NI PXI-8109 User Manual...

  • Page 70: Appendix A Specifications

    Specifications This appendix lists the electrical, mechanical, and environmental specifications of the NI PXI-8109 embedded computer. Features NI PXI-8109 Intel Core i7-620 M CPU Frequency 2.66 GHz (base), 3.33 GHz (single-core Turbo mode) On-die L2 cache 256 KB x2 (256 KB per core)
  • Page 71 Slot requirements ........One system slot plus three controller expansion slots Compatibility ..........Fully compatible with PXI specification Weight ............1.30 kg (2.87 lb) typical Environment Maximum altitude........2,000 m (800 mbar) (at 25 °C ambient temperature) Pollution Degree ........2 Indoor use only. NI PXI-8109 User Manual ni.com...
  • Page 72 (Tested in accordance with IEC-60068-2-56.) For chassis that are not available in the online catalog at ni.com, contact National Instruments for supported operating temperatures. Processor should not throttle CPU frequency under reasonable, worst case processor work loads in high operating temperatures.
  • Page 73 EN 61326-1 (IEC 61326-1): Class A emissions; Basic immunity • EN 55011 (CISPR 11): Group 1, Class A emissions • AS/NZS CISPR 11: Group 1, Class A emissions • FCC 47 CFR Part 15B: Class A emissions • ICES-001: Class A emissions NI PXI-8109 User Manual ni.com...
  • Page 74 At the end of the product life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/weee © National Instruments NI PXI-8109 User Manual...
  • Page 75 This device contains a long-life coin cell battery. If you need to replace it, use the Return Cd/Hg/Pb Material Authorization (RMA) process or contact an authorized National Instruments service representative. For more information about compliance with the EU Battery Directive 2006/66/EC about Batteries and Accumulators and Waste Batteries and Accumulators, visit ni.com/environment/batterydirective...
  • Page 76 You can also register for instructor-led, hands-on courses at locations around the world. • System Integration—If you have time constraints, limited in-house technical resources, or other project challenges, National Instruments © National Instruments NI PXI-8109 User Manual...
  • Page 77 You also can visit the Worldwide Offices section of ni.com/niglobal to access the branch office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI PXI-8109 User Manual ni.com...
  • Page 78 Glossary Symbol Prefix Value nano –9 µ micro – 6 –3 milli kilo mega giga tera Symbols ° Degrees. Ω Ohms. Percent. Amperes. Alternating Current. ASIC Application-specific integrated circuit. © National Instruments NI PXI-8109 User Manual...
  • Page 79 Direct Current. DDR3 Double Data Rate, 3 generation. DIMM Dual In-line Memory Module. Direct Memory Access—A method by which data is transferred between devices and internal memory without intervention of the central processing unit. NI PXI-8109 User Manual ni.com...
  • Page 80 2. A measure of acceleration equal to 9.8 m/s GPIB General Purpose Interface Bus (IEEE 488). A measure of random vibration—The root mean square of acceleration levels in a random vibration test profile. Hertz—Cycles per second. © National Instruments NI PXI-8109 User Manual...
  • Page 81 Light-emitting diode. Meters. master A functional part of a PXI device that initiates data transfers on the PXI backplane. A transfer can be either a read or a write. NI PXI-8109 User Manual ni.com...
  • Page 82 Mean time to repair. NI-488 or NI-488.2 The National Instruments software for GPIB systems. NI-DAQ The National Instruments software for data acquisition instruments. NI-VISA The National Instruments implementation of the VISA standard—An interface-independent software that provides a unified programming interface for VXI, GPIB, and serial instruments.
  • Page 83 Static RAM—A memory chip that requires power to hold its content. It does not require refresh circuitry as a dynamic RAM chip, but it does take up more space and uses more power. Universal Serial Bus. NI PXI-8109 User Manual ni.com...
  • Page 84 Glossary Volts. Video Graphics Array—The minimum video display standard for all PCs. Watts. © National Instruments NI PXI-8109 User Manual...
  • Page 85 LabVIEW RT Setup menu driver installation, 4-3 LabVIEW RT Configuration general questions, 4-1 Overrides menu, 2-13 PXI configuration, 4-7 Main menu, 2-6 upgrade information, 4-4 Network Device BBS Priorities CompactPCI specification, 1-1 Configuration menu, 2-15 © National Instruments NI PXI-8109 User Manual...
  • Page 86 2-9 DDR SO-DIMMs, installing, 4-4 connector DDR3 SO-DIMMs location and pinout (figure), 3-12 from National Instruments (note), 2-25, signals (table), 3-13 installing a module, 2-27 installing (figure), 2-26, 4-5 module connector, 3-1 Declaration of Conformity (NI resources), B-2...
  • Page 87 FPGA 998A Socket CPU, 1-3 See also configuration front panel injector/ejector handle position (caution), 2-2 connectors, 3-1 NI PXI-8109 installed in a PXI chassis Ethernet, 3-1 (figure), 2-4 ExpressCard, 3-1 procedure, 2-1 GPIB, 3-1 removing NI PXI-8109 from PXI...
  • Page 88 Universal Serial Bus (USB) parallel port connector, 3-1 connector and signals, 3-9 location and pinout (figure), 3-7 data storage, 3-14 signals (table), 3-8 description, 1-2 peripheral expansion overview (table), 3-1 flashing the BIOS (figure), 4-6 NI PXI-8109 User Manual ni.com...
  • Page 89 (logic block), 1-4 NI resources, B-1 features, 2-23 NI-DAQmx, 1-5 trigger connectivity, 2-23 NI-VISA, 1-6 PXI trigger connector, 3-1 specifications PXI-8220/PXI-8221, using NI PXI-8109 CE compliance, A-5 with, 4-7 electrical, A-2 electromagnetic compatibility, A-4 environmental management battery replacement and disposal, A-6...
  • Page 90 Universal Serial Bus (USB), 3-9 using mouse and keyboard without, 4-3 configuration menu, 2-10 using with PS/2 mouse and keyboard, 2-3 connector function, 1-4 location and pinout (figure), 3-9 signals (table), 3-9 overview (table), 3-1 NI PXI-8109 User Manual ni.com...
