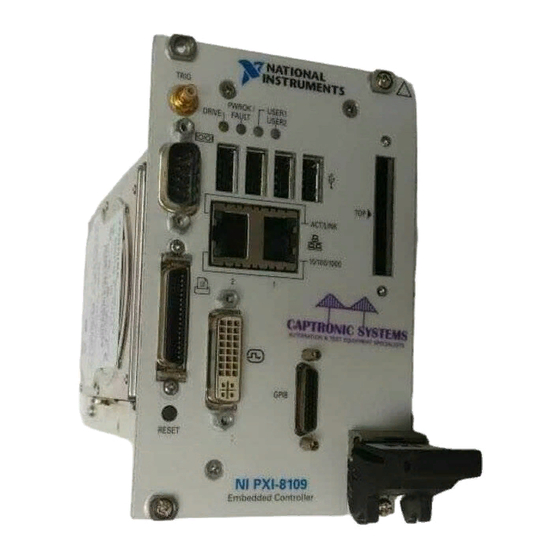

National Instruments NI PXI-8109 Installation Manual
  1. Manuals
  2. Brands
  3. National Instruments Manuals
  4. Controller
  5. PXI-8109
  6. Installation manual

National Instruments NI PXI-8109 Installation Manual

Hide thumbs Also See for NI PXI-8109:
1
2
3
4

Advertisement

Table of Contents

INSTALLATION GUIDE
NI PXI-8109

Installing the NI PXI-8109

To protect both yourself and the chassis from electrical hazards, leave the chassis
Caution
off until you finish installing the NI PXI-8109 module.
This document contains information about installing the NI PXI-8109
controller in a PXI chassis. For complete configuration and troubleshooting
information (including information about BIOS setup, adding RAM, and so
on), refer to the NI PXI-8109 User Manual. The manual is in PDF format
on the documentation CD included with the controller and on the National
Instruments website,
ni.com
This section contains general installation instructions for the NI PXI-8109.
Consult the NI PXI-8109 User Manual for specific instructions and
warnings.
1.
Plug in the chassis before installing the NI PXI-8109. The power cord
grounds the chassis and protects it from electrical damage while you
install the module. (Make sure the power switch is turned off.)
2.
Remove any panels blocking access to the system controller slot
(slot 1) in the chassis.
3.
Touch the metal part of the case to discharge any static electricity that
might be on your clothes or body.
4.
Remove the protective plastic covers from the four bracket-retaining
screws as shown in Figure 1.
5.
Make sure the injector/ejector handle is in its downward position.
Align the NI PXI-8109 with the card guides on the top and bottom of
the system controller slot.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI PXI-8109 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments NI PXI-8109

Summary of Contents for National Instruments NI PXI-8109

  • Page 1 PXI chassis. For complete configuration and troubleshooting information (including information about BIOS setup, adding RAM, and so on), refer to the NI PXI-8109 User Manual. The manual is in PDF format on the documentation CD included with the controller and on the National Instruments website, ni.com...
  • Page 2 1 Protective Screw Cap (4X) Figure 1. Removing Protective Screw Caps Do not raise the injector/ejector handle as you insert the NI PXI-8109. The Caution module will not insert properly unless the handle is in its downward position so that it does not interfere with the injector rail on the chassis.
  • Page 3 Figure 2 shows an NI PXI-8109 controller installed in the system controller slot of a National Instruments PXI-1042Q chassis. You can place PXI devices in any other slot. 1 PXI-1042Q Chassis 3 Injector/Ejector Rail 2 NI PXI-8109 Controller Figure 2. NI PXI-8109 Installed in a PXI Chassis How to Remove the Controller from the PXI Chassis The NI PXI-8109 controllers are designed for easy handling.
  • Page 4 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents.
