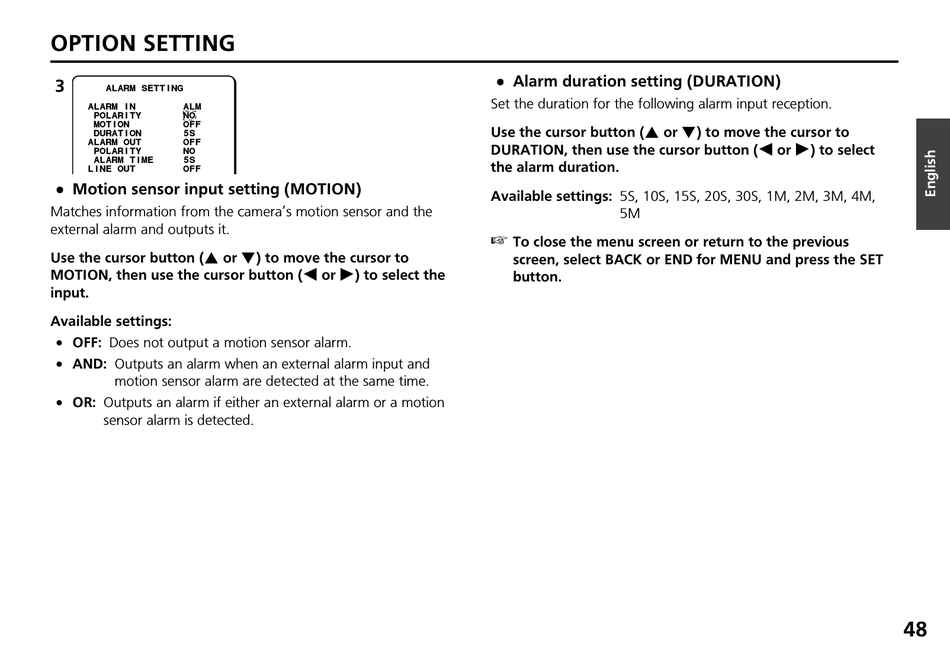

OPTION SETTING
3
ALARM SETTING
ALARM IN
ALM
POLARITY
NO
MOTION
OFF
DURATION
5S
ALARM OUT
OFF
POLARITY
NO
ALARM TIME
5S
LINE OUT
OFF
• • • • Motion sensor input setting (MOTION)
Matches information from the camera's motion sensor and the
external alarm and outputs it.
Use the cursor button (j or l) to move the cursor to
MOTION, then use the cursor button (d or c) to select the
input.
Available settings:
• OFF: Does not output a motion sensor alarm.
• AND: Outputs an alarm when an external alarm input and
motion sensor alarm are detected at the same time.
• OR: Outputs an alarm if either an external alarm or a motion
sensor alarm is detected.
• • • • Alarm duration setting (DURATION)
Set the duration for the following alarm input reception.
Use the cursor button (j or l) to move the cursor to
DURATION, then use the cursor button (d or c) to select
the alarm duration.
Available settings: 5S, 10S, 15S, 20S, 30S, 1M, 2M, 3M, 4M,
5M
To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
48
