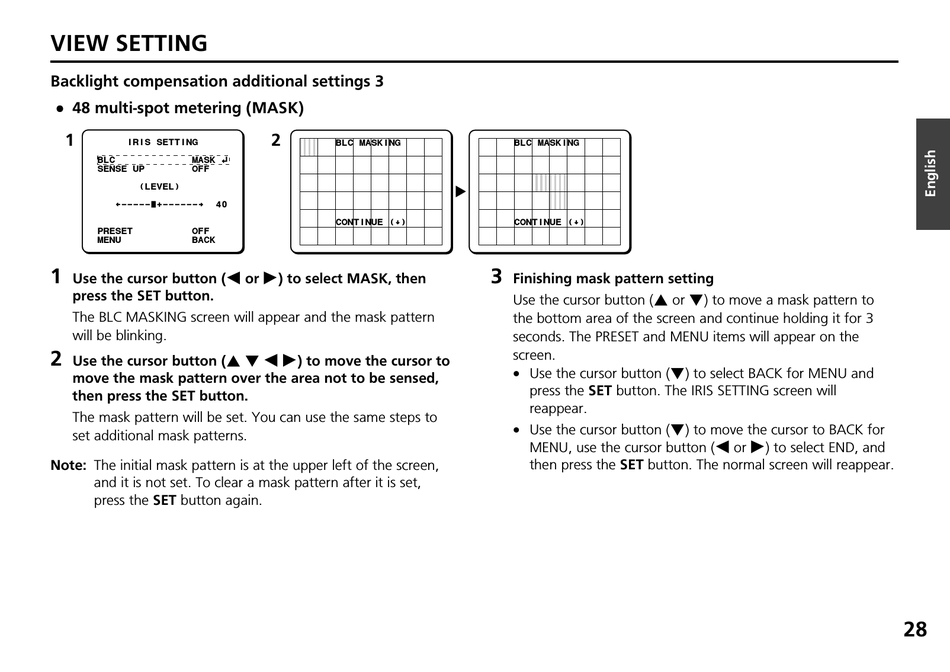

VIEW SETTING
Backlight compensation additional settings 3
• • • • 48 multi-spot metering (MASK)
1
IRIS SETTING
BLC MASK ‚
SENSE UP OFF
(LEVEL)
í-----ú+------ü 40
PRESET OFF
MENU BACK
1
Use the cursor button (d or c) to select MASK, then
press the SET button.
The BLC MASKING screen will appear and the mask pattern
will be blinking.
2
Use the cursor button (j l d c) to move the cursor to
move the mask pattern over the area not to be sensed,
then press the SET button.
The mask pattern will be set. You can use the same steps to
set additional mask patterns.
Note: The initial mask pattern is at the upper left of the screen,
and it is not set. To clear a mask pattern after it is set,
press the SET button again.
2
BLC MASKING
CONTINUE (ñ)
BLC MASKING
CONTINUE (ñ)
3
Finishing mask pattern setting
Use the cursor button (j or l) to move a mask pattern to
the bottom area of the screen and continue holding it for 3
seconds. The PRESET and MENU items will appear on the
screen.
• Use the cursor button (l) to select BACK for MENU and
press the SET button. The IRIS SETTING screen will
reappear.
• Use the cursor button (l) to move the cursor to BACK for
MENU, use the cursor button (d or c) to select END, and
then press the SET button. The normal screen will reappear.
