LENS SETTING (LENS)
5
ZOOM SETTING
SPEED 4
EL ZOOM x4
V-RESO.UP ON
PRESET OFF
MENU BACK
5
V-RESO.UP (Vertical resolution) setting
Use the cursor button (j or l) to move the cursor to
V-RESO.UP, then use the cursor button (d or c) to
select the vertical resolution. (Ex: ON)
Note: When V-RESO.UP is set to "ON", vertical resolution
sensitivity for still pictures in the electronic zoom field will
be improved but afterimages of moving objects will be
more conspicuous.
To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
Note:
V-RESO. UP will be automatically set to OFF when any of the
following settings is made.
• IRIS: AUTO item SENSE UP (activated)
• SHUTTER: LONG
• AGC: DNR (ON)
21

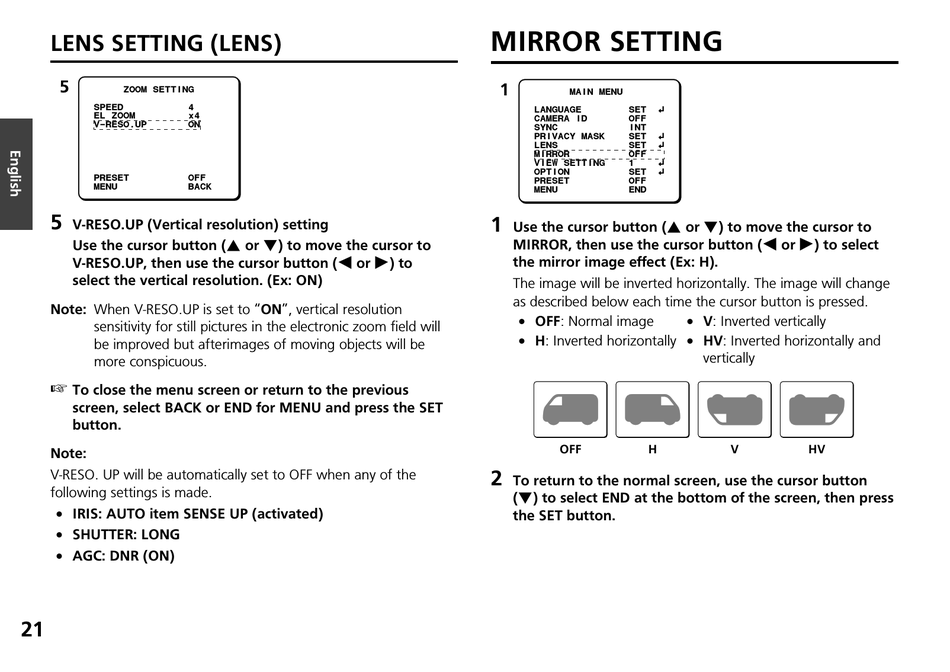

MIRROR SETTING

1
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
1
Use the cursor button (j or l) to move the cursor to
MIRROR, then use the cursor button (d or c) to select
the mirror image effect (Ex: H).
The image will be inverted horizontally. The image will change
as described below each time the cursor button is pressed.
• OFF: Normal image
• H: Inverted horizontally • HV: Inverted horizontally and
OFF H
2
To return to the normal screen, use the cursor button
(l) to select END at the bottom of the screen, then press
the SET button.
• V: Inverted vertically
vertically
V HV
