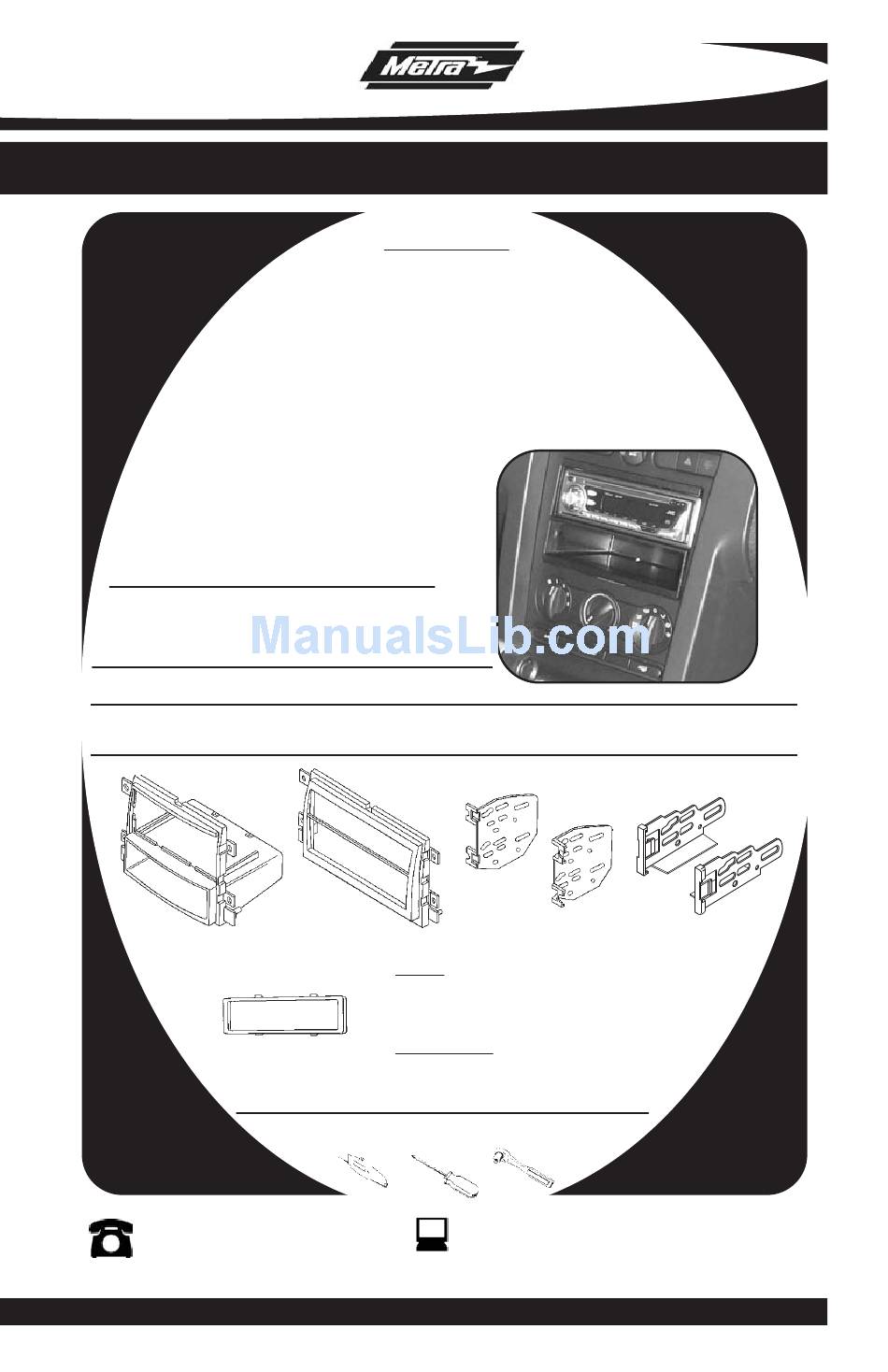

INSTALLATION INSTRUCTIONS FOR PART 99-5807
99-5807
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Mount Radio Provision
• Stacked ISO Units Provision
KIT COMPONENTS

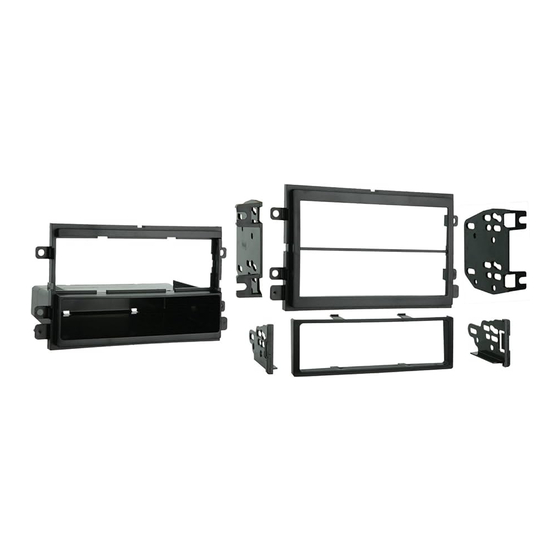

A) Radio Housing (single DIN w/ pocket) • B) Radio Housing (double DIN / stacked ISO DIN) • C) Double DIN
Brackets D) ISO Brackets E) Trim Plate
A
E
1-800-221-0932
© COPYRIGHT 2004-2009
APPLICATIONS
FORD
Edge 2007-2008
Expedition 2007-2008
Explorer 2005-2009
F-150 2004-2008
Five-Hundred 2005-2007
Freestyle 2005-2007
Mustang 2005-2009
Sport Trac 2006-2009
Taurus/Taurus X 2008-2009
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-5520 - Ford Harness 2003-up
• 70-5521 - Ford Amplified Harness 2003-up
• 70-5522 - Ford Sub Harness 2003-up
• XSVI-5520 NAV - Ford Interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM Antenna Adapter 2002-up
TOOLS REQUIRED:
Cutting Tool • Phillips Screwdriver • Socket Set
METRA ELECTRONICS CORPORATION
LINCOLN
Mark LT 2004-2008
MERCURY
Montego 2005-2007
Mountaineer 2005-2009
Sable 2008-2009
C
www.metraonline.com
D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-5807 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics 99-5807

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-5807 FORD Edge 2007-2008 Expedition 2007-2008 Explorer 2005-2009 F-150 2004-2008 Five-Hundred 2005-2007 Freestyle 2005-2007 Mustang 2005-2009 Sport Trac 2006-2009 Taurus/Taurus X 2008-2009 99-5807 KIT FEATURES • DIN Mount Radio Provision with Pocket • ISO Mount Radio Provision with Pocket •...
  • Page 2: Table Of Contents

    Final Assembly ......... . 10 *Note: Refer also to the instructions included with the aftermarket radio. 99-5807 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
  • Page 3: Mountaineer 2005-2009

    Phillips screws then unclip and remove entire panel surrounding shifter. (Figure A) Remove dash panel surrounding radio to access the factory radio screws. (Figure B) Remove (4) 9/32” screws to remove the factory radio. (Figure C) 99-5807 DASH DISASSEMBL Y...
  • Page 4: Expedition 2007-2008

    Unsnap and remove entire panel sur- rounding the radio and climate con- trols. (Figure A) Remove (4) 9/32” screws to remove the factory radio. (Figure B) Continue to kit assembly. 99-5807 DASH DISASSEMBL Y...
  • Page 5: Five Hundred 2005-2007

    4 Remove (2) 9/32” screws at the bot- tom of the center radio/ climate con- trol panel. (Figure C) 5 Unclip and remove the center panel. (Figure D) 6 Remove (4) 9/32” screws from the radio to remove. Continue to kit assembly. 99-5807 DASH DISASSEMBL Y...
  • Page 6 Unclip and remove the entire center panel surrounding the radio and a/c controls. (Figure A) Remove (4) 9/32” screws from radio to remove. (Figure B) Continue to final assembly. 99-5807 KIT ASSEMBL Y...
  • Page 7: Mustang 2005-2009

    (Figure C) Remove (6) 9/32” screws from center trim panel surrounding the radio and climate controls then unclip and remove panel. (Figure D) Unclip and remove panel. (Figure E) Continue to kit assembly. 99-5807 DASH DISASSEMBL Y...
  • Page 8: Din Radio Provision With Pocket

    99-5807 KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the cage and secure.
  • Page 9: Iso Radio Provision With Pocket

    (Figure A) Slide the head unit into the radio opening until the side clips engage. (Figure B) Snap the Trim plate into the Radio Housing. Continue to final assembly. 99-5807 KIT ASSEMBL Y...
  • Page 10: Double Din Mount Radio Provision

    Slide the DDIN radio unit into the trim plate bracket assembly and secure the unit to the kit using the screws sup- plied with the head unit. (Figure C) NOTE: The notch in the housing should be on top. Continue to final assembly. 99-5807 KIT ASSEMBL Y...
  • Page 11: Stacked Iso Units Provision

    Slide the stacked ISO DIN units into the trim plate bracket assembly and secure the units to the kit using the screws supplied with the head units. (Figure B) NOTE: The notch in the housing should be on top. Continue to final assembly. 99-5807 KIT ASSEMBL Y...
  • Page 12: Final Assembly

    *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 1-800-221-0932 REV. 05/06/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-5807 99-5807 FINAL ASSEMBL Y (A) Strip wire ends back 1/2"...
  • Page 13 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-5807 FORD Edge 2007-2008 Expedition 2007-2008 Explorer 2005-2009 F-150 2004-2008 Five-Hundred 2005-2007 Freestyle 2005-2007 Mustang 2005-2009 Sport Trac 2006-2009 Taurus/Taurus X 2008-2009 99-5807 CARACTERÍSTICAS DEL KIT • Accesorio para radio de montaje DIN con bolsillo •...
  • Page 14: Din Mount Radio Provision With Pocket

    ......... . 10 *Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa. 99-5807 ÍNDICE NOWLEDGE IS...
  • Page 15 Retire el panel del tablero que rodea el radio para tener acceso a los tornillos del radio de fábrica. (Figura B). Retire (2) tornillos de 9/32 in en la parte inferior del panel del radio central/de control de clima. (Figura C). 99-5807 DESMONTAJE DEL TABLERO...
  • Page 16 Quite a presión y retire todo el panel que rodea el radio y los controles de clima. (Figura A). Retire (4) tornillos de 9/32 in del radio para retirarlo. (Figura B). Continúe con el montaje del kit. 99-5807 DESMONTAJE DEL TABLERO...
  • Page 17 (Figura C). 5 Desenganche y retire el panel central. (Figura D) 6 Retire (4) tornillos de 9/32 in del radio para retirarlo. (Figura E) Continúe con el montaje del kit. 99-5807 DESMONTAJE DEL TABLERO...
  • Page 18 Desenganche y retire todo el panel central que rodea el radio y los controles del aire acondicionado. (Figura A). Retire (4) tornillos de 9/32 in del radio para retirarlo. (Figura B). Continúe con el montaje final. 99-5807 MONTAJE DEL KIT...
  • Page 19 Retire (6) tornillos de 9/32 in del panel de terminación central que rodea el radio y los controles de clima y, luego, desengan- che y retire el panel. (Figura D) Desenganche y retire el panel. (Figura E) Continúe con el montaje del kit. 99-5807 DESMONTAJE DEL TABLERO...
  • Page 20 Deslice la caja DIN en el alojamiento del radio y sujétela doblando las lengüetas de cierre de metal hacia abajo. (Figura A). Deslice la unidad central de posventa en la caja y sujétela. (Figura B). Continúe con el montaje final. 99-5807 MONTAJE DEL KIT...
  • Page 21 (Figura A). Deslice la unidad central en la abertura del radio hasta que enganchen los gan- chos laterales. (Figura B). Coloque a presión la placa de terminación en el alojamiento del radio. Continúe con el montaje final. 99-5807 MONTAJE DEL KIT...
  • Page 22 (Figura C). NOTA: La muesca del alojamiento debería estar en la parte superior. Continúe con el montaje final. 99-5807 MONTAJE DEL KIT...
  • Page 23 (Figura B). NOTA: La muesca del alojamiento debería estar en la parte superior. Continúe con el montaje final. 99-5807 MONTAJE DEL KIT...
  • Page 24 1-800-221-0932 REV. 05/06/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-5807 99-5807 MONTAJE FINAL Pele ½ in de los extremos de los cables...
