5000-series

Security and Remote Start System

Owner's Guide

Table of Contents

Need help?

Do you have a question about the SmartStart 5000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Directed SmartStart 5000 Series

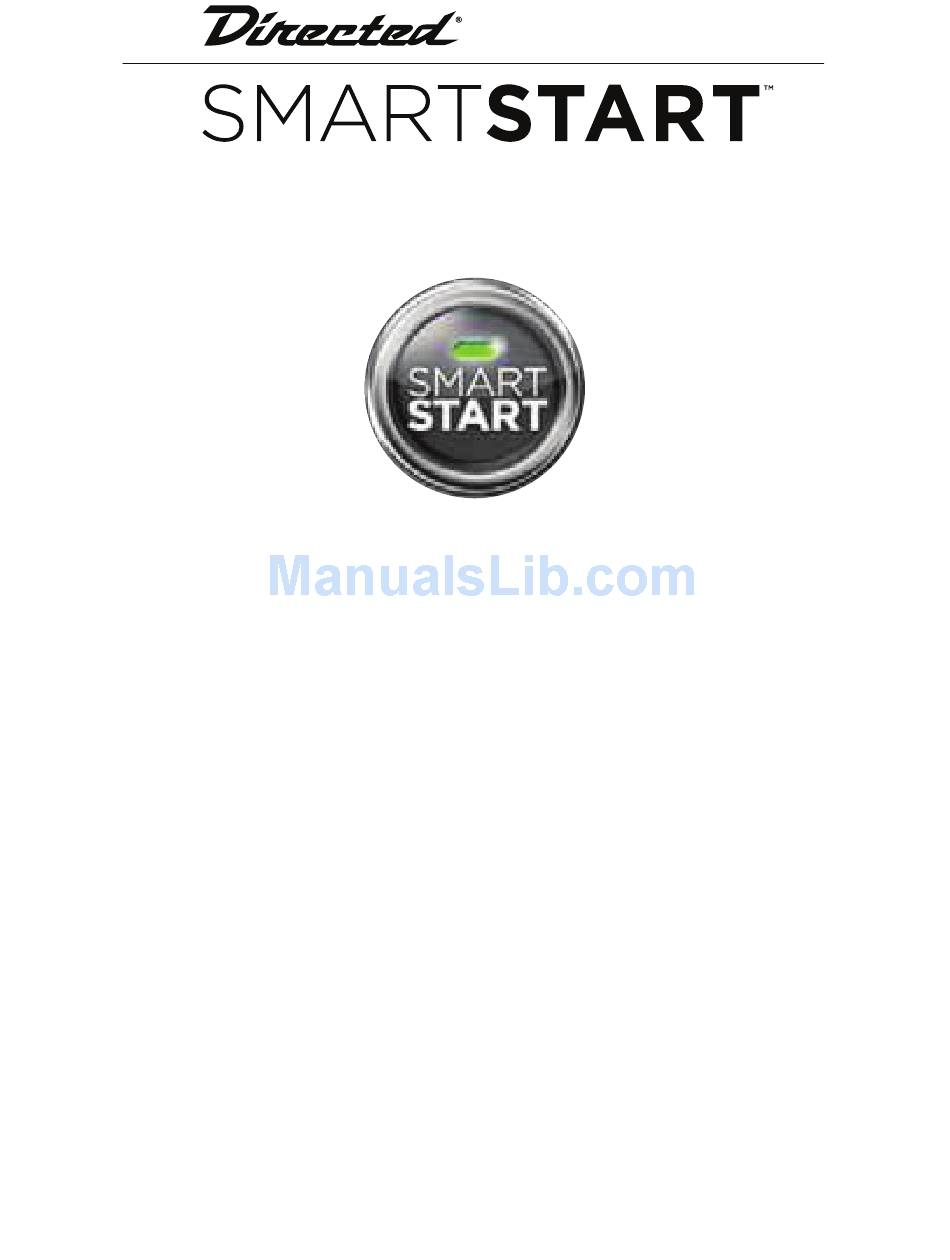

Page 1 5000-series Security and Remote Start System Owner's Guide...
Page 2: Congratulations
For more information please visit us online at: www.directed.com/SmartStart For any additional questions please contact your authorized Directed 1-800-753-0600. dealer or contact Directed at Additional support is also available at: http://support.directed.com...
Page 3: Important Information
Your system comes with a warranty. Please make sure you receive the warranty registration card and proof of purchase from your dealer indicating the product was installed by an authorized Directed dealer. Your product warranty must be validated within 10 days of purchase.
Page 4: Table Of Contents
Contents Congratulations ....................iii What’s included ....................iii Important information ..................iv Your Warranty ..................iv Replacement Remote Controls ..............iv Getting Started ....................3 System Maintenance .................3 Battery Replacement ..................3 1-way Remote Control ..................3 Basic Commands ....................4 Arm/Lock ....................4 Disarm/Unlock ..................4 AUX ......................4 Remote Start .....................5 Advanced Commands ..................6...
Page 5 Arming diagnostics .................18 Disarming diagnostics ................18 Nuisance Prevention® Circuitry ..............18 Programming options ..................21 Government Regulations ..................24 Warning! Safety First ..................25 Caution ....................26 Patent Information ...................27 Limited lifetime consumer warranty ..............28...
Page 6: Getting Started
Replace battery while verifying the correct polarity and then snap case together. 1-way Remote Control Feature Description Transmit LED On (flashes) during remote control activity Command buttons (4) Used to perform arming/locking, disarming/unlocking, auxil- iary channel and remote start commands © 2010 Directed Electronics. All rights reserved.
Page 7: Basic Commands
The Warn away response to lighter impacts is bypassed if the system is armed using silent mode. this ensures that no chirps are emit- ted by the siren in an area you want chirp -free but the system is fully capable of triggering. © 2010 Directed Electronics. All rights reserved.
Page 8: Remote Start
The auxiliary output controls: Remote Start Press and release Activates (or if On, deactivates) the remote starter. The engine and parking lights turn On. Remote and System Operations for details. © 2010 Directed Electronics. All rights reserved.
Page 9: Advanced Commands
Activates short-run timer mode. Optional rear window defogger Press buttons simultaneously Activates the optional Rear window defogger. The parking lights ﬂash two times and the rear defogger is no longer active when the vehicle © 2010 Directed Electronics. All rights reserved.
Page 10: Temperature Start Mode
Car should be parked in a well ventilated area when using this feature. Deactivate Temperature Start mode by pressing the same buttons again or turning the vehicle ignition on. The parking lights ﬂash slowly four times to conﬁrm deactivation. © 2010 Directed Electronics. All rights reserved.
Page 11: Remote And System Operations
Triggered response A Triggered Response can be activated by any of the triggers listed below. The default Triggered Response duration is 30 seconds but can be programmed from 1-180 seconds by your installer. © 2010 Directed Electronics. All rights reserved.
Page 12: Multi-Level Security Arming
To select the security levels: Press once: The siren chirps once. The system is armed with all zones active. Press a second time within ﬁve seconds. The siren chirps twice fol- © 2010 Directed Electronics. All rights reserved.
Page 13: Arming While Driving
High security disarm This security system offers High Security Disarm. High Security Disarm is a feature that makes it possible to silence and reset the system while it is triggering, without disarming the system. © 2010 Directed Electronics. All rights reserved.
Page 14: System Override
Number of Presses_____________________________________ Important: The control center button can be programmed to respond to 1-5 presses for the disarm/disable function. You must check with the installer to verify the programming for your individual unit. © 2010 Directed Electronics. All rights reserved.
Page 15: Valet Mode
This feature allows you to remotely start and run your vehicle for a pro gram ma ble period of time. This makes it possible to warm up the engine, as well as adjust the interior tem per a ture of the ve hi cle with © 2010 Directed Electronics. All rights reserved.
Page 16 Insert the ignition key and turn it to the On position. Press the brake pedal. Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down. © 2010 Directed Electronics. All rights reserved.
Page 17: Optional Rear Window Defogger
3 hours until the system reaches the maximum amount of starts or is cancelled by turning on the ignition, activating the brake, or turning off the shutdown toggle switch. • The parking lights ﬂash 4 times indicating timer mode is exited. © 2010 Directed Electronics. All rights reserved.
Page 18: Short Run/Turbo Mode
The engine does not start once activated, it starts when the vehicle interior temperature drops below 0°F. Deactivate Temperature Start mode by pressing the same buttons again or turning the vehicle ignition on. The parking lights ﬂash slowly four times to conﬁrm deactivation © 2010 Directed Electronics. All rights reserved.
Page 19: Valet Take-Over
The engine will run until the pre-programmed time elapses or a shut-down input is received. (See the previous Remote Start section for a complete list of shut-down inputs.) This feature will not work if the brake pedal is being pressed. © 2010 Directed Electronics. All rights reserved.
Page 20: Safety Features
The brake pedal will shut down the motor at any time during remote start operation, as well as preventing the remote start from activating while it is being pressed. © 2010 Directed Electronics. All rights reserved.
Page 21: Diagnostics
Circuitry has bypassed that zone. For more ® information, please refer to the expanded version of this manual online at www.automatecarsecurity.com Nuisance Prevention® Circuitry Your system has Directed’s Nuisance Prevention Circuitry (NPC). It © 2010 Directed Electronics. All rights reserved.
Page 22 A zone is represented by the number of LED ﬂashes used by the system to identify a particular type of input. Standard input assignments are listed in the following table, along with spaces to write in any optional sensors or switches that have been installed. © 2010 Directed Electronics. All rights reserved.
Page 23 Your system stores the last two triggered zones in memory. If your system has been triggered but the LED has been reset by turning on the igni- tion, your dealer can still recall the last two zones that were triggered. Contact your dealer for details. © 2010 Directed Electronics. All rights reserved.
Page 24: Programming Options
Programming options control your system’s normal, operational set-up. Most options do not require additional parts, but some may require installation labor. See your authorized Directed dealer for more details. The following is a list of the programmable options, with the factory settings in Bold.
Page 25 12, 24, or 60 minute run time. your system can be programmed to allow the vehicle to run for 12, 24, or 60 minutes when remote started. Can be set up to minute increments by your installer. © 2010 Directed Electronics. All rights reserved.
Page 26 While the remote start is running the engine, the parking lights Flash on and off, or Come on steadily. • Comfort closure is a programming option which closes the ve- hicle’s windows after remote locking. © 2010 Directed Electronics. All rights reserved.
Page 27: Government Regulations
Warning: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. © 2010 Directed Electronics. All rights reserved.
Page 28: Warning! Safety First
This testing should be performed by an authorized Directed dealer in accor- dance with the Safety Check outlined in the product installation guide.
Page 29: Caution
YOU MUST IMMEDIATELY CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED DIRECTED DEALER TO RE- PAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLA- TION OR REINSTALLATION COSTS. Caution This product is designed for fuel injected, automatic transmission ve- hicles only.
Page 30: Patent Information
383,690 4,887,064 5,285,186 5,783,989 6,093,979 340,000 390,830 4,897,630 5,315,285 5,798,711 344,905 392,944 4,922,224 5,357,560 5,872,519 345,317 4,327,444 4,987,402 5,532,670 5,900,806 International Patents: Australia: 694,925 Canada: 1,315,859 and 2,067,099 Taiwan: 91817 Other patents pending © 2010 Directed Electronics. All rights reserved.
Page 31: Limited Lifetime Consumer Warranty
Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof of purchase bearing the following information: consumer’s name, telephone number and address;...
Page 32 Product(s) sold outside of the United States of America are sold “AS-IS” and shall have NO WARRANTY, express or implied. This product may be covered by a Guaranteed Protection Plan (“GPP”). See your authorized Directed dealer for details of the plan or call Directed Customer Service at 1-800-876-0800.
Page 33 The company behind this system is Directed Elec tron ics Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, DIRECTED is ISO 9001 registered.
Page 34: Installation Points
If a feature/virtual tach needs to be reset or the remote controls need to be deleted, found online at: H2/6 LIGHT GREEN/BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT www.directechs.com use the following procedure. *The ribbon harness connects to the heavy gauge relay satellite. © 2012 Directed Electronics. All rights Reserved.
Page 35 GRAY on the 6-pin shutdown harness ing but not limited to those listed below: rear defogger pulse Menu Two-chirp setting One-chirp setting Multi Level Arming Item Anti grind: On Sensor Warn-away QRNDSS5003 2012-01 © 2012 Directed Electronics. All rights Reserved.
Page 36: Quick Reference
Android apps are also available at www.viper.com/SmartStart 2. Have the SmartStart system installed by your authorized Directed dealer. Once installed and activated by the installer, you will receive an e-mail prompting you to activate your account. Your installer can also provide you with information about your system.
Page 37 The amount of time it takes for your vehicle to respond to a command can be affected by cellular coverage or network congestion. Note: Your SmartStart module automatically checks for up- dates once every 24 hours. During updates, system operation is disrupted for approximately one minute. © 2012 Directed. All rights reserved.
