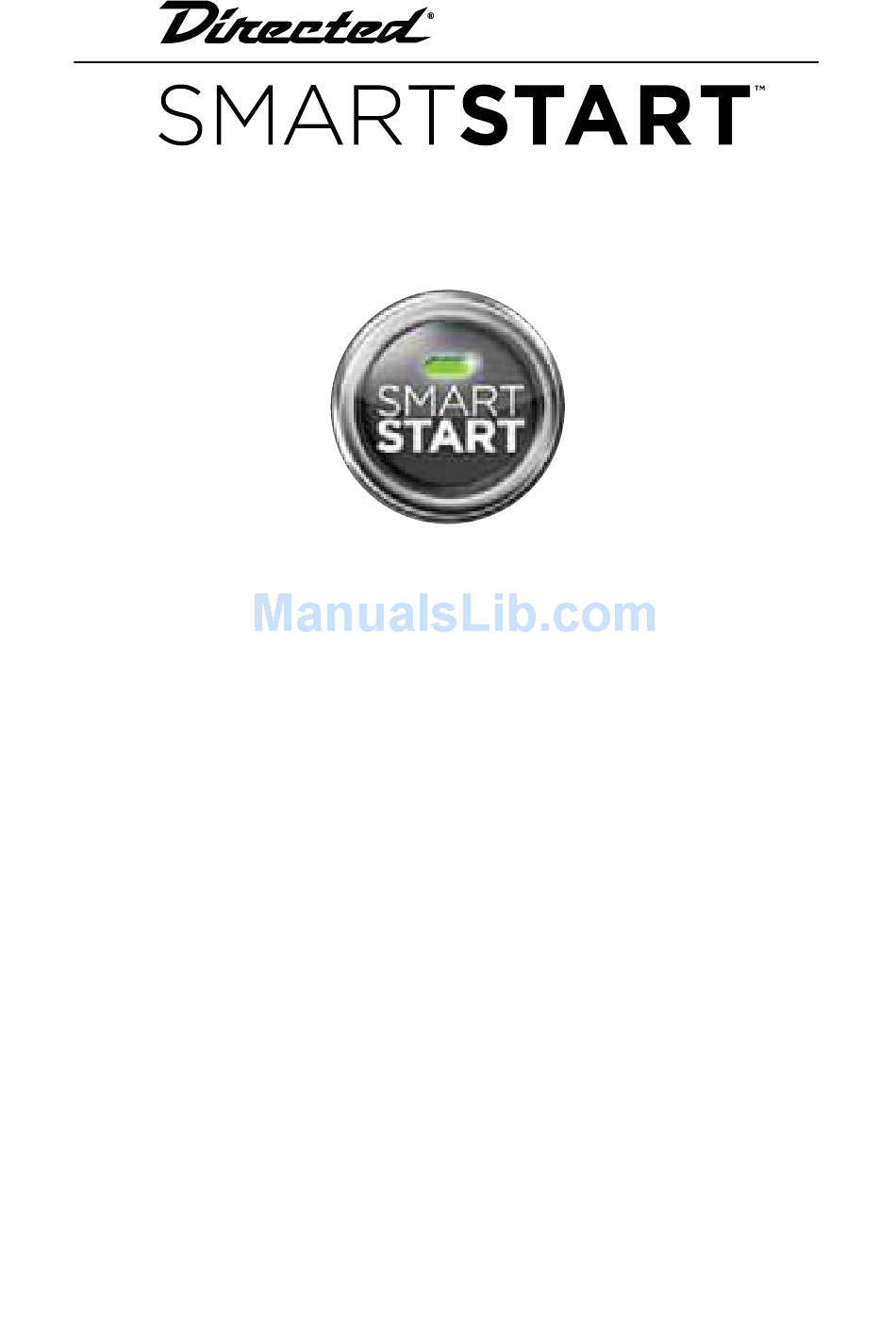

- Page 1 5000-series Security and Remote Start System Owner's Guide...
-
Page 3: Congratulations

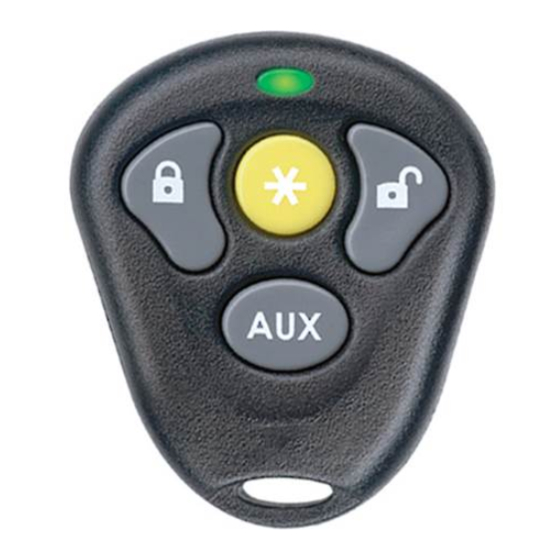

What’s included • One 4-button 1-way remote control • Your warranty registration • Quick reference card • This owner's guide © 2010 Directed Electronics. All rights reserved. 1-800-753-0600. Warranty Card Quick Reference Card Additional support is... -
Page 4: Important Information
If additional remote controls are desired, please see your authorized dealer or visit us at www.directedstore.com to order. The supplied re- mote control is part number 474T. Failure to heed this information can result in © 2010 Directed Electronics. All rights reserved. -
Page 5: Table Of Contents
Your Warranty ... iv Replacement Remote Controls ... iv Getting Started ...3 System Maintenance ...3 Battery Replacement ...3 1-way Remote Control ...3 Basic Commands ...4 Arm/Lock ...4 Disarm/Unlock ...4 AUX ...4 Remote Start ...5 Advanced Commands ...6 Additional Auxiliary functions..6 Timer mode ...6 Short-run turbo mode ...6 Optional rear window defogger ...6... - Page 6 Arming diagnostics ...18 Disarming diagnostics ...18 Nuisance Prevention® Circuitry ...18 Programming options ...21 Government Regulations ...24 Warning! Safety First ...25 Caution ...26 Patent Information ...27 Limited lifetime consumer warranty ...28...
-
Page 7: Getting Started
Replace battery while verifying the correct polarity and then snap case together. 1-way Remote Control Feature Transmit LED Command buttons (4) © 2010 Directed Electronics. All rights reserved. Description On (flashes) during remote control activity Used to perform arming/locking, disarming/unlocking, auxil- iary channel and remote start commands... -
Page 8: Basic Commands
The Warn away response to lighter impacts is bypassed if the system is armed using silent mode. this ensures that no chirps are emit- ted by the siren in an area you want chirp -free but the system is fully capable of triggering. © 2010 Directed Electronics. All rights reserved. -
Page 9: Remote Start
The auxiliary output controls: Remote Start Press and release Activates (or if On, deactivates) the remote starter. The engine and parking lights turn On. Remote and System Operations © 2010 Directed Electronics. All rights reserved. for details. -
Page 10: Advanced Commands
Optional rear window defogger Press Activates the optional Rear window defogger. The parking lights flash two times and the rear defogger is no longer active when the vehicle buttons simultaneously buttons simultaneously buttons simultaneously buttons simultaneously © 2010 Directed Electronics. All rights reserved. -
Page 11: Temperature Start Mode
Deactivate Temperature Start mode by pressing the same buttons again or turning the vehicle ignition on. The parking lights flash slowly four times to confirm deactivation. © 2010 Directed Electronics. All rights reserved. buttons simultaneously Car should be parked in a well ventilated area... -
Page 12: Remote And System Operations
Triggered response A Triggered Response can be activated by any of the triggers listed below. The default Triggered Response duration is 30 seconds but can be programmed from 1-180 seconds by your installer. © 2010 Directed Electronics. All rights reserved. -
Page 13: Multi-Level Security Arming
To select the security levels: Press once: The siren chirps once. The system is armed with all zones active. Press a second time within five seconds. The siren chirps twice fol- © 2010 Directed Electronics. All rights reserved. is pressed, a different... -
Page 14: Arming While Driving
High security disarm This security system offers High Security Disarm. High Security Disarm is a feature that makes it possible to silence and reset the system while it is triggering, without disarming the system. © 2010 Directed Electronics. All rights reserved. -
Page 15: System Override
1-5 presses for the disarm/disable function. You must check with the installer to verify the programming for your individual unit. © 2010 Directed Electronics. All rights reserved. on the remote silences the siren while again after silencing the system will disarm the... -
Page 16: Valet Mode
This makes it possible to warm up the engine, as well as adjust the interior tem per a ture of the ve hi cle with again. for two seconds. The siren sounds and the parking on the remote control again. © 2010 Directed Electronics. All rights reserved. - Page 17 Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down. © 2010 Directed Electronics. All rights reserved. (1) Never remote start your vehicle when It is unsafe to operate a vehicle’s motor in a...
-
Page 18: Optional Rear Window Defogger
• The parking lights flash 4 times indicating timer mode is exited. is pressed once. simultaneously activates/deactivates to activate timer mode. The parking lights flash © 2010 Directed Electronics. All rights reserved. button. The engine will shut-... -
Page 19: Short Run/Turbo Mode
Deactivate Temperature Start mode by pressing the same buttons again or turning the vehicle ignition on. The parking lights flash slowly four times to confirm deactivation © 2010 Directed Electronics. All rights reserved. buttons at the same time. The simultaneously activates the Tempera-... -
Page 20: Valet Take-Over
(See the previous Remote Start section for a complete list of shut-down inputs.) This feature will not work if the brake pedal is being pressed. © 2010 Directed Electronics. All rights reserved. on the remote... -
Page 21: Safety Features
The brake pedal will shut down the motor at any time during remote start operation, as well as preventing the remote start from activating while it is being pressed. © 2010 Directed Electronics. All rights reserved. -
Page 22: Diagnostics
Circuitry has bypassed that zone. For more ® information, please refer to the expanded version of this manual online at www.automatecarsecurity.com Nuisance Prevention® Circuitry Your system has Directed’s Nuisance Prevention Circuitry (NPC). It © 2010 Directed Electronics. All rights reserved. - Page 23 A zone is represented by the number of LED flashes used by the system to identify a particular type of input. Standard input assignments are listed in the following table, along with spaces to write in any optional sensors or switches that have been installed. © 2010 Directed Electronics. All rights reserved.
- Page 24 LED has been reset by turning on the igni- tion, your dealer can still recall the last two zones that were triggered. Contact your dealer for details. Dealer installed options © 2010 Directed Electronics. All rights reserved.
-
Page 25: Programming Options
Programming options Programming options control your system’s normal, operational set-up. Most options do not require additional parts, but some may require installation labor. See your authorized Directed dealer for more details. The following is a list of the programmable options, with the factory settings in Bold. - Page 26 12, 24, or 60 minute run time. your system can be programmed to allow the vehicle to run for 12, 24, or 60 minutes when remote started. Can be set up to minute increments by your installer. © 2010 Directed Electronics. All rights reserved.
- Page 27 While the remote start is running the engine, the parking lights Flash on and off, or Come on steadily. • Comfort closure is a programming option which closes the ve- hicle’s windows after remote locking. © 2010 Directed Electronics. All rights reserved.
-
Page 28: Government Regulations
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. © 2010 Directed Electronics. All rights reserved. -
Page 29: Warning! Safety First
Safety Check outlined in the product installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the authorized Directed dealer to fix the problem. © 2010 Directed Electronics. All rights reserved. -
Page 30: Caution
After the remote start module has been installed, contact your autho- rized dealer to have him or her test the remote start module by perform- ing the Safety Check outlined in the product installation guide. If the vehicle starts when performing the Neutral Safety Shutdown Circuit test, the remote start unit has not been properly installed. -
Page 31: Patent Information
383,690 340,000 390,830 344,905 392,944 345,317 4,327,444 International Patents: Australia: 694,925 Canada: 1,315,859 and 2,067,099 Taiwan: 91817 Other patents pending © 2010 Directed Electronics. All rights reserved. 4,383,242 5,103,221 4,438,426 5,117,217 4,553,127 5,132,660 4,584,569 5,193,141 4,794,368 5,245,694 4,887,064 5,285,186 4,897,630... -
Page 32: Limited Lifetime Consumer Warranty
Limited lifetime consumer warranty Directed Electronics. (“Directed”) promises to the original purchaser to repair or replace (at Directed’s election) with a comparable reconditioned model any Directed unit (hereafter the “unit”), excluding without limitation the siren, the remote transmitters, the associated sensors... - Page 33 Customer Service at 1-800-876-0800. Make sure you have all of the following information from your authorized Directed dealer: A clear copy of the sales receipt, showing the following: © 2010 Directed Electronics. All rights reserved. Date of purchase Your full name and address Authorized dealer’s company name and address...
