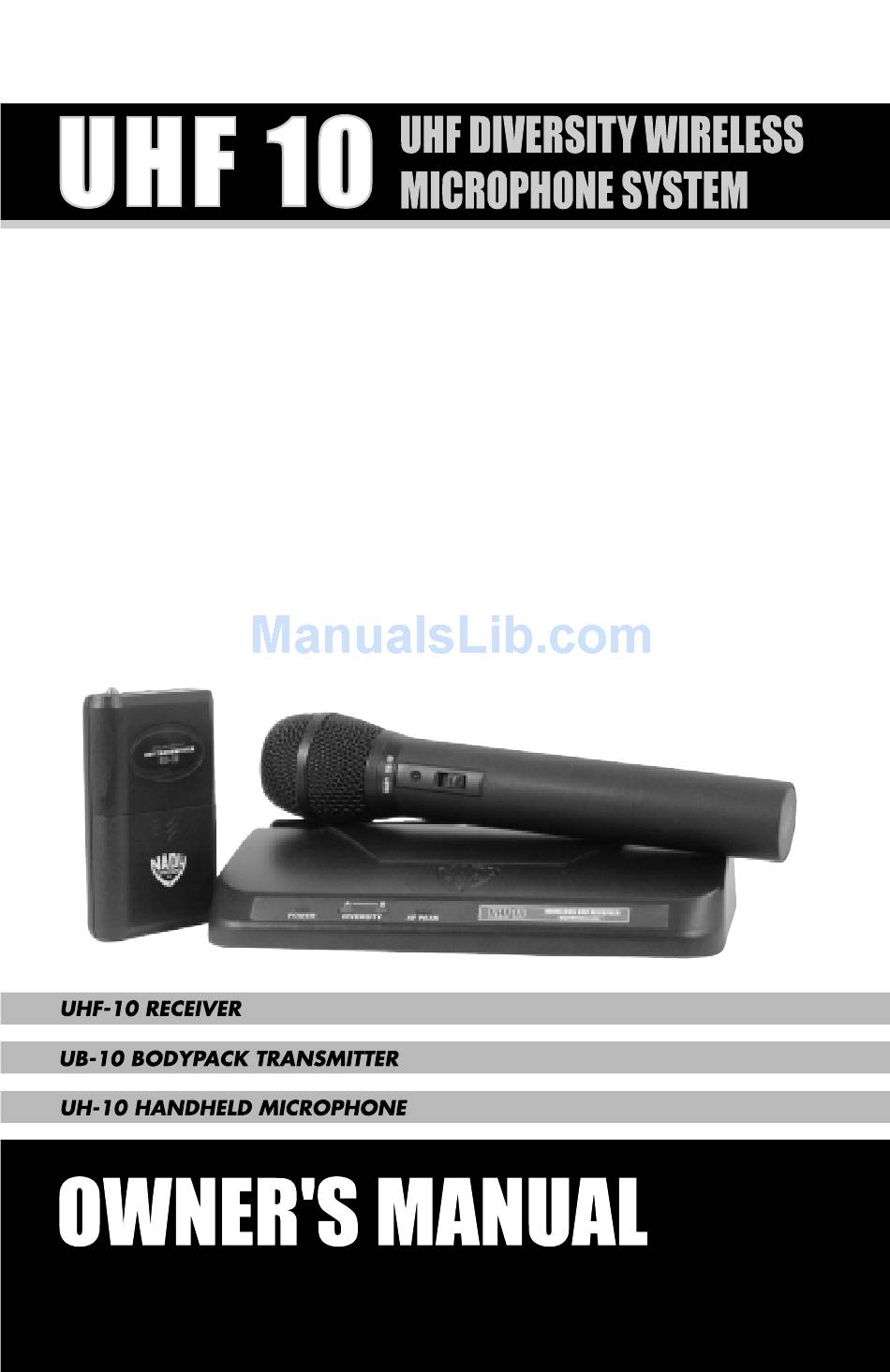

Nady Systems UHF 10 Owner's Manual

Nady Systems UHF 10 Owner's Manual

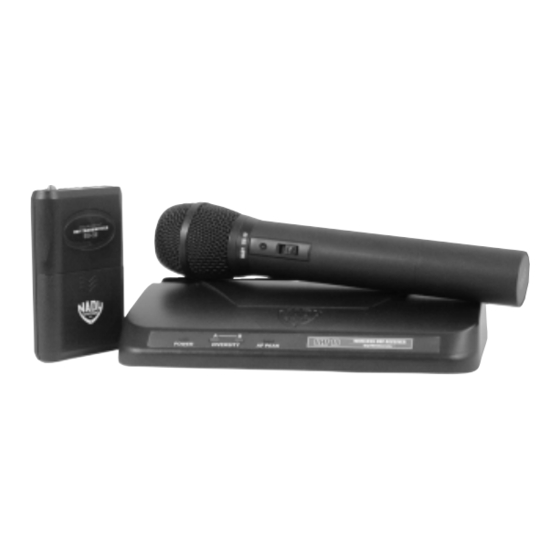

Uhf diversity wireless microphone system, receiver, bodypack transmitter, handheld microphone

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nady Systems UHF 10

  • Page 2: Table Of Contents

    SERVICE ... 12 INTRODUCTION Thank you for purchasing a Nady UHF 10 Diversity Wireless Microphone System and congratulations on your choice. The UHF 10 is the best perfor- mance and price value available in UHF wireless systems and is loaded with features: •...
  • Page 3: Uhf 10 Receiver

    10. AUX AUDIO OUTPUT 11. BALANCED MIC AUDIO 12. 12V AC/DC ADAPTER The UHF 10 receiver provides both a fixed mic level BALANCED MIC AUDIO OUTPUT XLR (11) and an adjustable line level AUX AUDIO OUTPUT 1/4" jack (10). (Note: As when making any connection, make sure the amplifier or mixing board volume is at the minimum level before plugging in the receiver to avoid possible sound system damage.)
  • Page 4: Handheld Microphone

    1/2 MAX and adjust until the volume level is optimal. If the volume control is set too high, you may overload your mixer or amp. The UHF 10 receiver is equipped with an AF PEAK LED INDICATOR (3) which lights with a strong audio signal from the transmitter. Occasional flickering on loud inputs to the transmitter is normal.
  • Page 5: Bodypack Transmitter

    UB-10 is in INSTRUMENT mode. Levels should be adjusted with the volume control of your instrument.) The AF PEAK LED INDICATOR (3) on the UHF 10 receiver will light for all loud input signals. Occasional flickering on and off during use is normal, however if the LED stays on continuously, turn down the instrument volume or noticeable distortion may result.
  • Page 6 (Note: Turning down the gain too much can com- promise the signal-to-noise and is not recommended.) The AF PEAK LED INDICATOR (3) on the UHF 10 receiver will light for all loud input signals. Occasional flickering on and off during use is normal, but if the LED stays lit continuously, turn down the INPUT LEVEL CON- TROL (27) on the UB-10 transmitter, or noticeable distortion may result.
  • Page 7: Specifications

    SERVICE (U.S.) Should your Nady UHF 10 Wireless Microphone System require service, please contact the Nady Service Department via phone at (510) 652-2411 or e-mail to service@nadywireless.com for a Return Authorization (R/A) Number and a service quote (if out of warranty).
