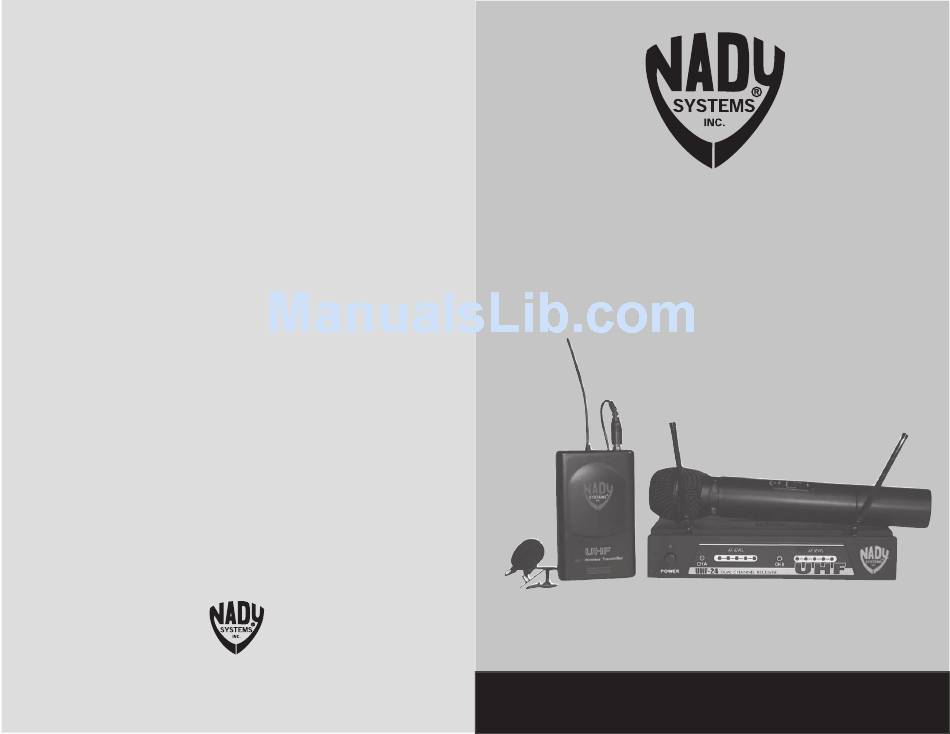

UH F - 2 4
Dual Channel Receiver
UHF Wireless Microphone System

SERVICE INFORMATION

(U.S.) If you are experiencing operation problem with your system, check out the support
page on the Nady website: www.nady.com for help and for contacting the Nady Service
Department. Should your wireless System require service, you must contact the Nady Service
Department at (510) 652-2411 for a Return Authorization (R/A) Number and a service quote
(if out of warranty). Make sure the R/A Number is clearly marked on the outside of the pack-
age. Cashier's check or money is enclosed (If not prepaid with credit card), and ship the unit
prepaid to: Nady System Inc., Service Department, 6701 Shellmound Street, Emeryville, CA
94608. Include a brief description of the problem you are experiencing, for service of a unit
under warranty follow the instruction of your Warranty Card regarding Warranty Service.
(International) For service, please contact the NADY distributors in your country through the
dealer from whom you purchase this product.
DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF, AS THAT WILL VOID YOUR
WARRANTY.
NADY SYSTEMS, INC.
6701 Shellmound Street • Emeryville, CA 94608
OWN ER'S MAN UAL
Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nady Systems UHF-24

Summary of Contents for Nady Systems UHF-24

  • Page 1: Service Information

    (U.S.) If you are experiencing operation problem with your system, check out the support page on the Nady website: www.nady.com for help and for contacting the Nady Service Department. Should your wireless System require service, you must contact the Nady Service Department at (510) 652-2411 for a Return Authorization (R/A) Number and a service quote (if out of warranty).

  • Page 2: Specifications

    Low Battery LEDs Battery Type ................9V alkaline or rechargeable battery This manual will fi rst explain the benefi ts of the UHF-24 Wireless System and then will take you Battery Life ......................8-10 Hours normal step by step on how to operate your new system. Each section will give you detailed information.

  • Page 3: System Features

    UH-4 Handheld Transmitter processor, computer, as well as large metal objects. • A receiver cannot receive signal from two or more transmitters simultaneously. The UHF-24 has 2 • Nady DM-10D neodymium cartridge delivers transparent vocals, maximum feedback rejection and receivers so can be operated with 2 transmitters only on the same frequencies.

  • Page 4: Cautions And Troubleshooting

    Mute (Squelch) Adjusting In normal operation of the UHF-24 receiver, the mute control for each channel A or B should be set fully clockwise to the factory preset of 1uV RF level for maximum sensitivity. Doing so sets each receiver for maximum range.
  • Page 5 Adjust Volume up or down so that no audio distortion is present The UHF-24 receiver provides both a fi xed mic level balanced audio output XLR for each channel when amplifi er or mixer is set at their usual levels. At full gain, the system gain is approximately and an adjustable line level A+B unbalanced audio output 1⁄4”...

  • Page 6: Microphone Operation

    The dual receiver UHF-24 can thus be only used with two transmitters on the same Step 2 Hold your mic in one hand and the LINK 4 in other.

  • Page 7: Ub-4 Bodypack Transmitter

    The Volume Controls adjust only the 1⁄4” sum output level. Turn the VOLUME CONTROLS (10) on the UHF-24 receiver clockwise to near full gain. Adjust Volume up or down so that no audio distor- tion is present when amplifi er or mixer is set at their usual levels. At full gain, the system gain is ap- proximately +20dB higher than direct line to amp connection.
  • Page 8 UH-4 HANDHELD TRANSMITTER UB-4 BODYPACK TRANSMITTER The UB-4 is equipped with two INPUT SELECTOR SWITCHES (27) located under the cover on the circuit board for selecting the type of audio input you will be supplying to the transmitter. Select from the choice of three positions: INSTRUMENT (for guitar, bass, etc.)/ HEADWORN MIC/ LAVALIER MIC.
