Nady Systems UHF-4 Owner's Manual

Single channel uhf digitru diversity wireless system
Hide thumbs Also See for UHF-4:
Table of Contents

Advertisement

Quick Links

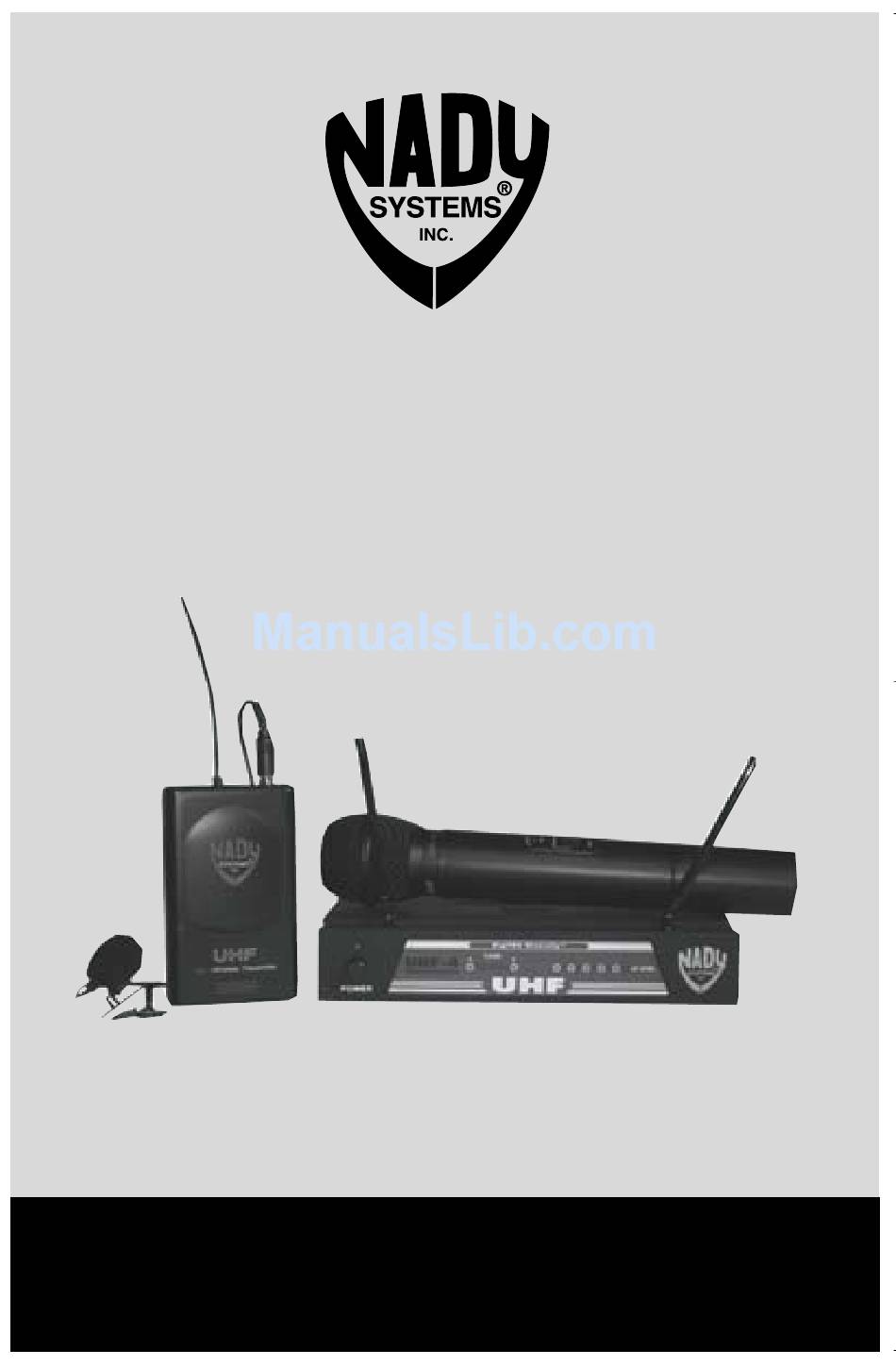

UHF-4
Single Channel UHF DigiTRU Diversity™
Wireless System
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nady Systems UHF-4

Summary of Contents for Nady Systems UHF-4

  • Page 1 UHF-4 Single Channel UHF DigiTRU Diversity™ Wireless System OWNER'S MANUAL...

  • Page 2: Table Of Contents

    This manual will first list the features of the UHF-4 and then will take you step by step to show you how to operate your new system. After reading the receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system.

  • Page 3: System Features

    Dynamic Range, and the clearest, most natural sound available • Tone Squelch™ for locking out potential interference • UHF-4 receiver with DigiTRU Diversity™ for maximum range and dropout protection, full LED indicators, both 1/4" unbalanced and XLR balanced outputs, and special circuitry for noiseless transmitter ON/OFF switching •...

  • Page 4: Uhf-4 Receiver

    UHF-4 RECEIVER 1. Rackmounting the Receiver There are 2 options available for rackmounting the UHF-4 receiver: singly or side-by- side with another UHF-4 Series receiver. a. Single mounting: Remove the receiver SIDE MOUNT CLIP (1) from each side of the receiver (as shown) and slide in the optional ERM-3 RACK EARS (2).
  • Page 5 If the volume control is set too high, you may overload your mixer or amp. The UHF-4 receiver is equipped with a 5 segment LED AF LEVEL DISPLAY (14). Occasional flickering of the top AF Peak LED indicator on loud inputs to the transmitter is normal.

  • Page 7: Handheld Microphone Transmitter

    3. The microphone is now ready to use. The A or B DIVERSITY LED INDICATORS (13) on the UHF-4 receiver should now be lit, indicating a received signal from the transmitter. When ready to speak, slide the OFF/STANDBY/ON SWITCH (19) to the ON position.

  • Page 8: Bodypack Microphone Transmitter

    . The AF LEVEL LED DISPLAY (13) on the UHF-4 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of...
  • Page 9 MUTE SWITCH (26) to “ON” position Adjust the volume of the receiver as per the Audio Output Instrument Connection section of the above UHF-4 receiver instruction. (Note: The INPUT LEVEL CONTROL (28) is deactivated and not used when the UB-4 is in INSTRUMENT mode.
  • Page 10 INPUT SELECTOR SWITCHES Instrument G H L Headworn G H L Lavalier G H L Opening Battery Compartment...

  • Page 11: Specifications

    3.5" (9.0 cm), dual telescopic TRANSMITTERS Audio Inputs UB-4 Bodypack: 3.5mm locking mini-jack, switchable inputs: instrument, headworn mic, or lavalier mic UH-4 Handheld: Integral Nady DM-10D neodymium dynamic cartridge Controls UB-4: POWER/STANDBY/OFF, INSTRUMENT/ HEADWORN MIC/LAV MIC, INPUT LEVEL UH-4: POWER/STANDBY/OFF/INPUT LEVEL Single color (red), Unit “ON”...

  • Page 12: Service

    (International) For service, please contact the Nady distributor in your country through the dealer from whom you purchased this product. Nady Wireless Systems are type accepted under FCC rules parts 90, 74 and 15. The device complies with RSS-210 of Industry & Science Canada. Operation is subject to...
