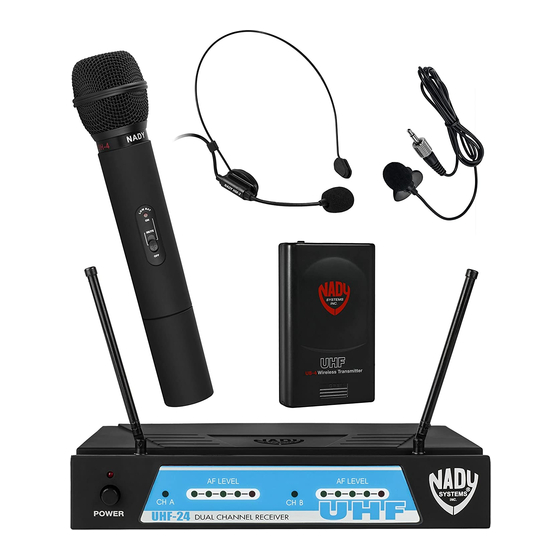

Nady Systems UHF-24 Owner's Manual

Dual channel receiver uhf wireless microphone system
Hide thumbs Also See for UHF-24:
Table of Contents

Advertisement

Quick Links

Download this manual

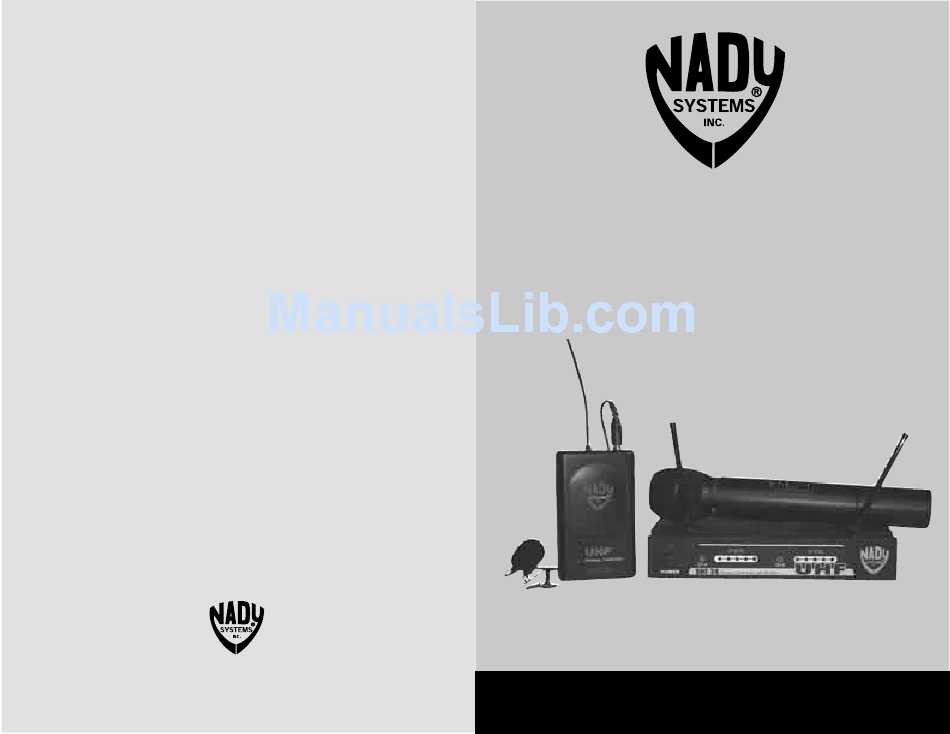

U HF - 2 4
Dual Channel Receiver
UHF Wireless Microphone System

SERVICE INFORMATION

(U.S.) If you are experiencing operation problem with your system, check out the support
page on the Nady website: www.nady.com for help and for contacting the Nady Service
Department. Should your wireless System require service, you must contact the Nady Service
Department at (510) 652-2411 for a Return Authorization (R/A) Number and a service quote
(if out of warranty). Make sure the R/A Number is clearly marked on the outside of the pack-
age. Cashier's check or money is enclosed (If not prepaid with credit card), and ship the unit
prepaid to: Nady System Inc., Service Department, 6701 Shellmound Street, Emeryville, CA
94608. Include a brief description of the problem you are experiencing, for service of a unit
under warranty follow the instruction of your Warranty Card regarding Warranty Service.
(International) For service, please contact the NADY distributors in your country through the
dealer from whom you purchase this product.
DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF, AS THAT WILL VOID YOUR
WARRANTY.
NADY SYSTEMS, INC.
6701 Shellmound Street • Emeryville, CA 94608
OWNER'S MAN UAL
Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nady Systems UHF-24

Summary of Contents for Nady Systems UHF-24

  • Page 1: Service Information

    (U.S.) If you are experiencing operation problem with your system, check out the support page on the Nady website: www.nady.com for help and for contacting the Nady Service Department. Should your wireless System require service, you must contact the Nady Service Department at (510) 652-2411 for a Return Authorization (R/A) Number and a service quote (if out of warranty).
  • Page 2 UH-4 Handheld Microphone, UB-4 bodypack Lavalier Microphone, and Link4 Snap-On microphone transmitters. This manual will first explain the benefits of the UHF-24 Wireless System and then will take you step by step on how to operate your new system. Each section will give you detailed information.
  • Page 3 Keep antenna away from noise source such as motors, automobiles, neon light, signal processor, computer, as well as large metal objects. • A receiver cannot receive signal from two or more transmitters simultaneously. The UHF-24 has 2 receivers so can be operated with 2 transmitters only on the same frequencies.
  • Page 4 Mute (Squelch) Adjusting In normal operation of the UHF-24 receiver, the mute control for each channel A or B should be set fully clockwise to the factory preset of 1uV RF level for maximum sensitivity. Doing so sets each receiver for maximum range.
  • Page 5 Your UHF-24 receiver is now operational and ready to use. Now that you have completed the above step, proceed to instructions for the actual transmitter, UH-4, UB-4 or LINK 4, that is included with your system.
  • Page 6 • Only one transmitter can be used with one receiver channel. It is not possible to use two transmit- ters on the same frequency and mix the output of these transmitters into one wireless receiver channel. The dual receiver UHF-24 can thus be only used with two transmitters on the same frequencies as the two receiver channels.
  • Page 7 The Volume Controls adjust only the 1⁄4” sum output level. Turn the VOLUME CONTROLS (10) on the UHF-24 receiver clockwise to near full gain. Adjust Volume up or down so that no audio distor- tion is present when amplifier or mixer is set at their usual levels. At full gain, the system gain is ap- proximately +20dB higher than direct line to amp connection.
  • Page 8 UH-4 HANDHELD TRANSMITTER UB-4 BODYPACK TRANSMITTER Transmitters set up The UB-4 transmitter requires a single 9V battery to operate. To open the battery compartment, snap open the BATTERY DOOR COVER (21), exposing the BATTERY HOLDER (22). Insert a fresh 9V battery according to the correct polarity as indicated on the transmitter body. Snap the cover back onto the bodypack.
