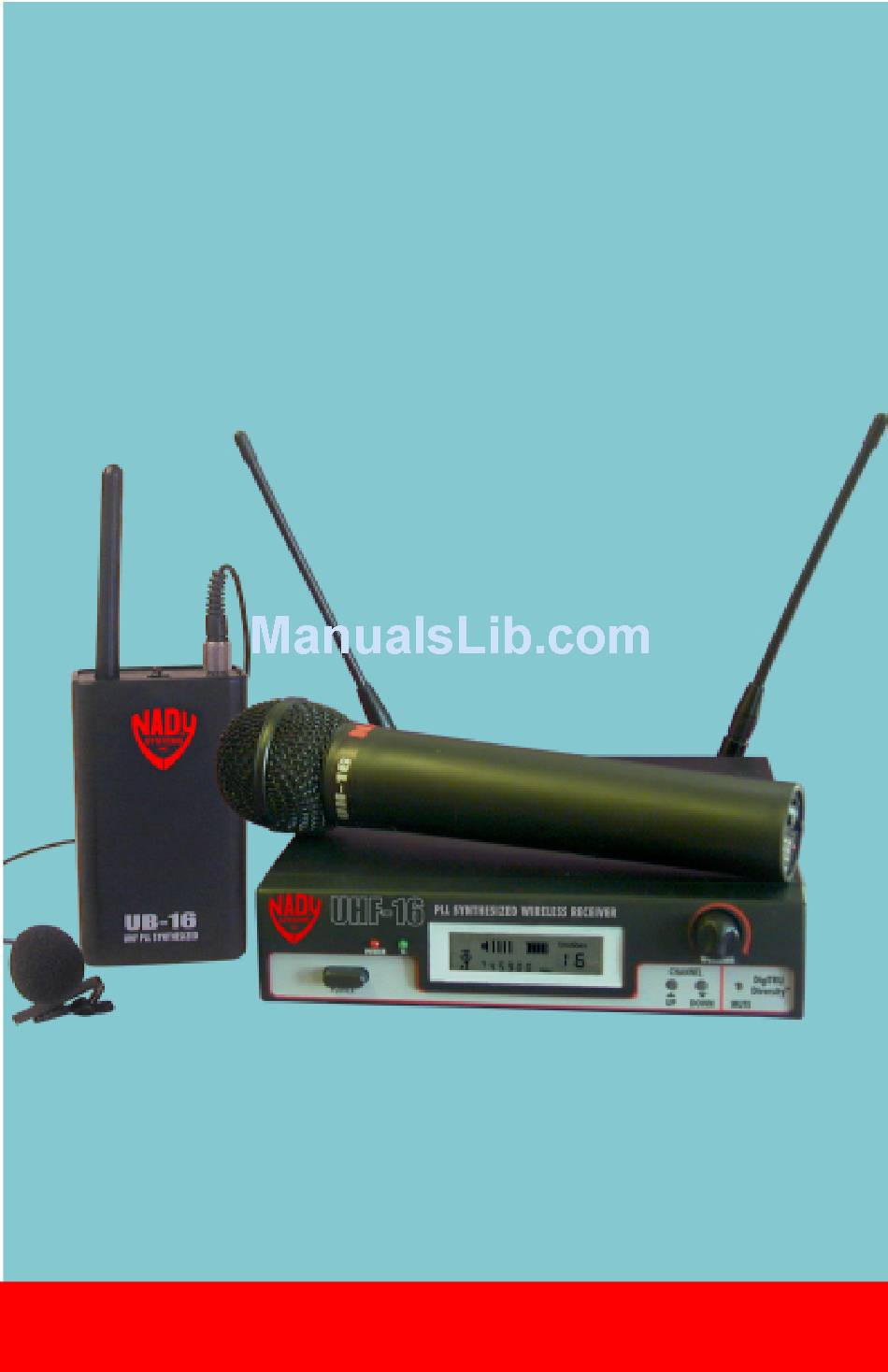

- Page 1 UHF-16 UHF-16 UHF-16 UHF-16 UHF-16 UHF-16 UHF-16 UHF-16 UHF-16 UHF-16 UHF Wireless Microphone and Instrument System 16 Channel PLL Frequency Synthesized O W N E R ’ S M A N U A L...
-
Page 3: Table Of Contents
No Audio ... 14 TABLE OF CONTENTS CHANNEL DISPLAY AND UP/DOWN BUTTONS OPERATION 1. UHF-16 Receiver ... 15 a. Changing the Channel Assignment ... 15 b. Selecting Tone Squelch™ Mode ... 15 c. Selecting Keyboard Lock ... 15 d. Battery Status Icon Operation ... 15 2. -
Page 4: Using This Manual
This manual will first explain the features of the UHF-16 and will then take you step by step in instructing you how to operate your new system. Each section will give you detailed information. Also included in this... -
Page 5: System Features
16 user switchable UHF frequencies and DigiTRU Diversity™ proprietary digital processing circuitry for eliminating dropouts and maximizing range • Sophisticated IF filtering for multiple UHF-16 system operation in the same location simultaneously • User-selectable Tone Squelch™ for protection from RF interference •... -
Page 6: A. Table Mounting
Rack Mounting a Single Receiver If you want to rack mount a single receiver in an audio equipment rack, contact the Nady Systems Service Department (see SERVICE FOR YOUR NADY... -
Page 7: Installing Antennas
RF TWIST-ON CONNECTORS (5) located on the back of your UHF-16 receiver. If using either single or side-by-side front panel antenna mounting, as described above, attach either the supplied or optional remote antennas to the FRONT PANEL BNC CONNECTORS (6e) as shown. For best performance, point the antenna tips away from each other at a 90 angle (45 from vertical axis). -
Page 8: Choosing An Operating Frequency
Such areas are called “null spots” and indicate that the transmitter is out of range for that given location, and the user should move closer to the receiver or to another area to re-establish the radio link. OPERATING INSTRUCTIONS UHF-16 Receiver (11a) (11b) -
Page 9: Connecting Audio Output
Nady UHF-16 transmitter included with your system. (Note: Only one transmitter can be used with one UHF-16 receiver. It is not possible to use two transmitters on the same frequency and mix the output of these transmitters into one wireless receiver. If you have any questions, please contact the Nady Systems Customer Service Department. -
Page 10: Handheld Microphone Transmitter
If the Tone Squelch™ is activated on both transmitter and receiver, the LOW TX BATTERY ICON (11c) on the receiver’s LCD DISPLAY (11) will switch from the battery OK to the LOW battery mode. See CHANNEL DISPLAY AND UP/DOWN BUTTON OPERATION, page 15 and UHF-16 OPERATING INSTRUCTIONS, page 8. The channel... -
Page 11: Locking The Keyboard
The UHF-16 receiver is equipped with an AF DISPLAY (11a) icon, which displays up to 4 segments, depending on the strength of the audio signal from the transmitter. Occasional flickering of the 4 segment of this display on loud inputs to the transmitter is normal. -
Page 12: Bodypack Transmitter
If the Tone Squelch™ is activated on both transmitter and receiver, the LOW TX BATTERY ICON (11c) on the receiver’s LCD DISPLAY (11) will switch from the battery OK to the LOW battery mode. See CHANNEL DISPLAY AND UP/DOWN BUTTON OPERATION, page 15 and UHF-16 OPERATING INSTRUCTIONS, page 8. -
Page 13: Selecting The Operating Frequency
Levels should be adjusted with the volume control of your instrument.) The UHF-16 receiver is equipped with an AF DISPLAY (11a) icon, which displays up to 4 segments, depending on the strength of the audio signal from the transmitter. Occasional flickering of the 4 of this display on loud inputs to the transmitter is normal. -
Page 14: Microphone Use
(28) to the ON position. Adjust the volume of the receiver as per the Audio Output Microphone Connection section of the preceeding UHF-16 receiver instructions. For optimum performance, an INPUT LEVEL CONTROL (26) is provided. Adjust the gain by turning the control with the supplied small slotted screwdriver. -
Page 15: Channel Display And Up/Down
CHANNEL DISPLAY AND UP/DOWN BUTTON OPERATION 1. UHF-16 Receiver Operation of Channel Display, Battery Status, Up and Down buttons, Keyboard Lock, and Tone Squelch™ a. Changing the Channel Assignment Press Up or Down button to change channels. b. Selecting Tone Squelch™ Mode Hold both Up and Down buttons at the same time for 1 second. -
Page 16: Frequency Guide
The UHF 16 system is available with a choice of three frequency bands, each with 16 user-selectable frequencies. Select the band and frequencies appropriate to the area/country in which the system is to be used. U.S. Channel Band 1 726.10 MHz 726.50 MHz 727.00 MHz 727.60 MHz... -
Page 17: Specifications
Harmonic Distortions: <0.5% Modulation: FM 25 KHz nominal Operating Range: 250 feet typical (depending on site conditions) up to 500+ feet optimum line-of-sight UHF-16 Receiver Receiving System: Dual conversion superheterodyne with DigiTRU Diversity™ Sensitivity: -107 dBm, nominal Selectivity: 60 dB nominal 75 KHz offset... -
Page 18: Service For Your Nady Wireless System
(if not prepaid with credit card). Ship the unit prepaid to: Nady Systems, Inc., Service Department, 6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing. - Page 19 6701 Shellmound Street • Emeryville, California 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
