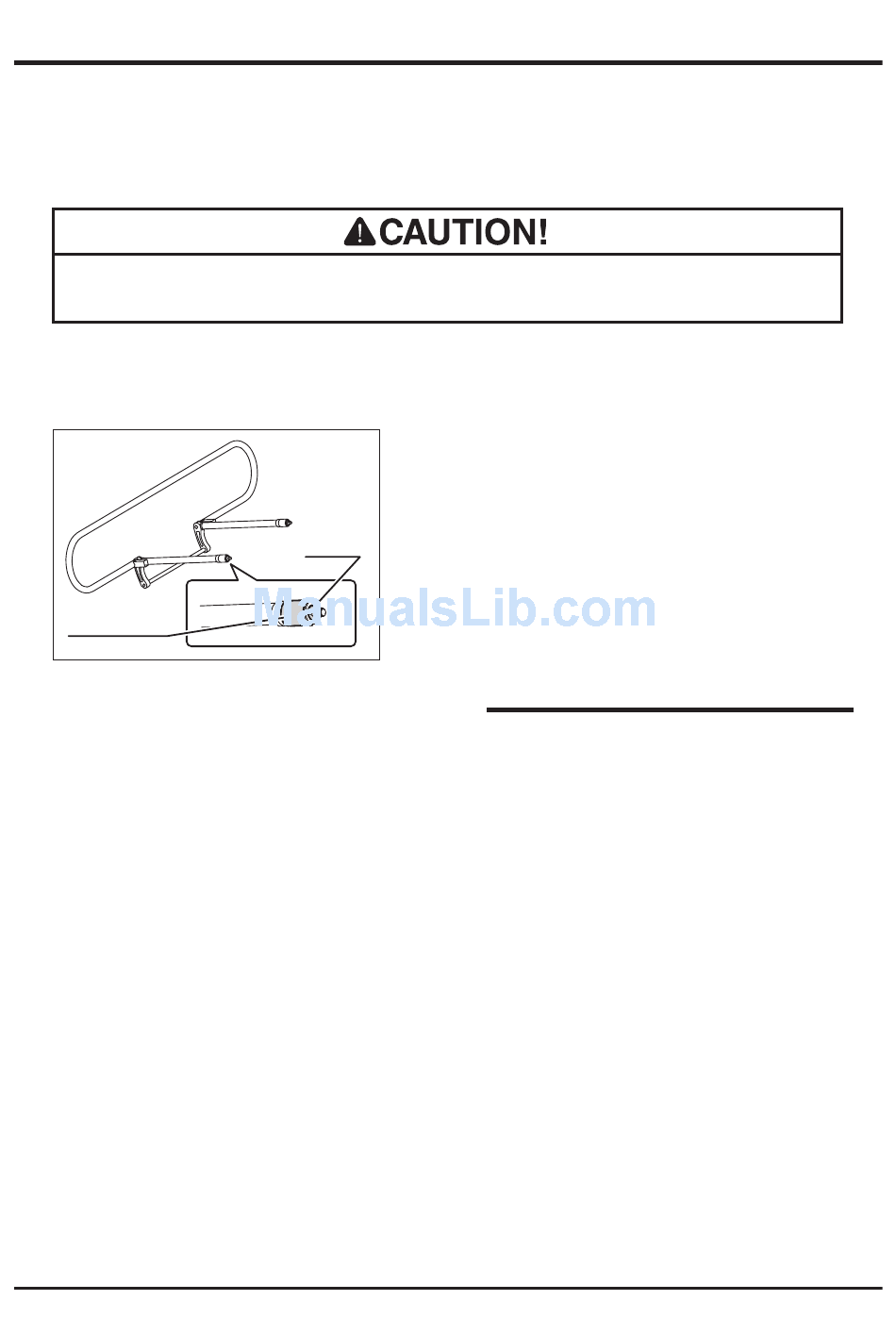

Ajusting Machine Body
Rubber Bush - Adjusting and Replacing
• Do not apply any oil kind saff. It may prevent slide frame to be fixed.
If slide frame can not fix or roughly slides, please check the rubber bush fitted on slide
frame. Adjust
Rubber Bush
4103M-0604-010US
Maintenance
1.
Raise frame lock lever to unlock slide frame.
2.
Adjust the tightness of nut. If slide frame is
loose, tight the nut and do opposite if frame
is too tight.
Nut
3.
Replace rubber bush, if bush is deteriorated.
4.
Install slide frame to the deck frame then pull
down frame lock lever.
NOTE
• Part Replacement: See "Page 24"
