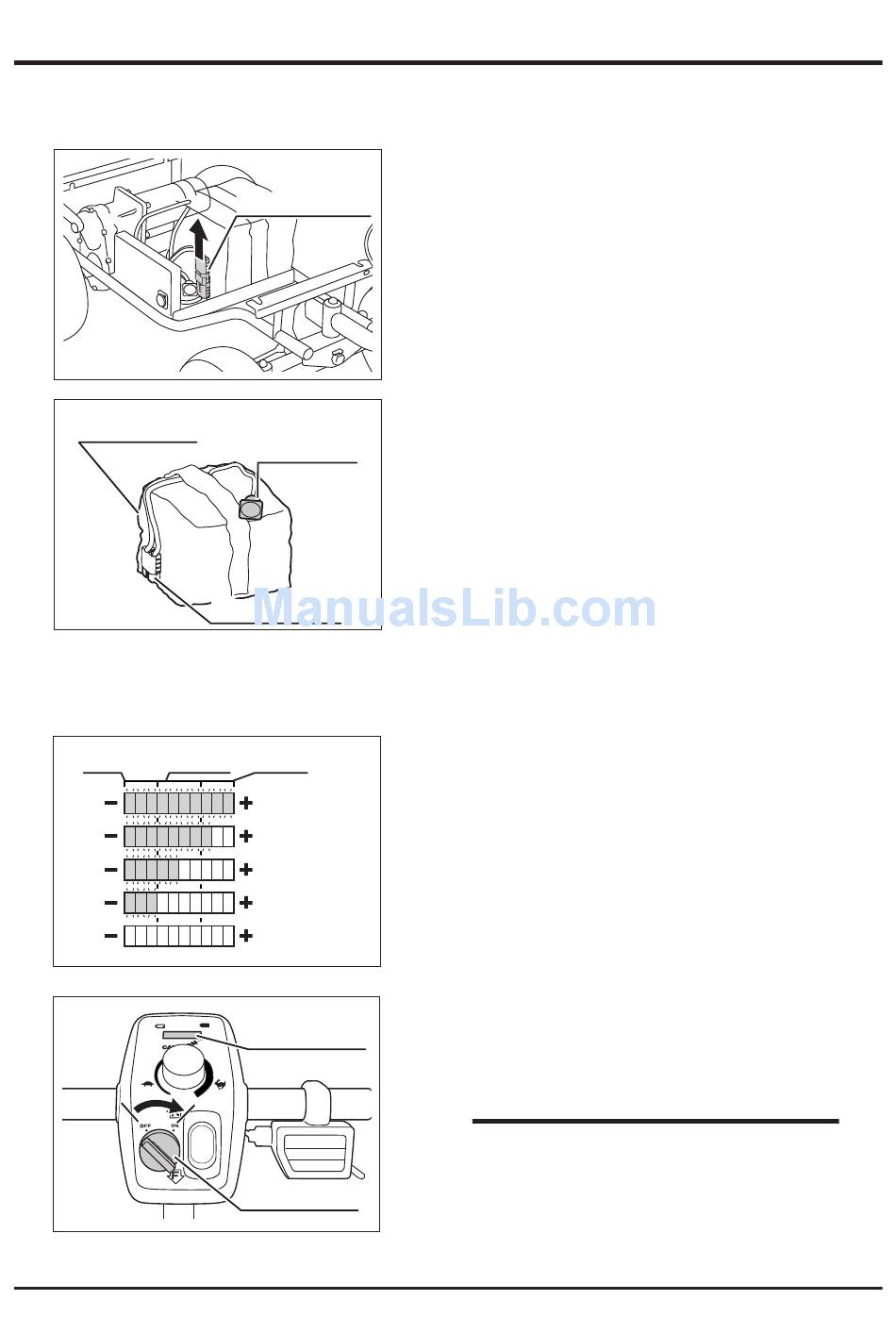

Checking Battery Charge
Red Orange
4105M-0401-030US
4104M-0401-080
Operation
Battery Connector
Charger Connector
Battery Connector
Green
Fully Charged
In Use
Need to Charge
Discharged
Battery Gauge
Main Switch
3. Remove battery connector.
4. Remove battery bag.
5. Open the cap of charger connector and
connect output cable.
6. Connect power cable to the outlet
Battery gauge indicates the capacity of battery.
When all the lamps light, battery is in full
charge. Orange lamps indicate battery level
is low. Red lamps indicate the battery level is
nearly empty.
1. Insert key and turn main switch [ON].
2. Check indication of battery gauge.
3. When battery gauge indicates red lamp or
blinking, charge battery immidiately.
NOTE
• Complete discharge damages battery.
Charge battery frequently. If only the red
lamps light, charge immidiately
• It takes approximetely 8 hours to fully
charge battery.
