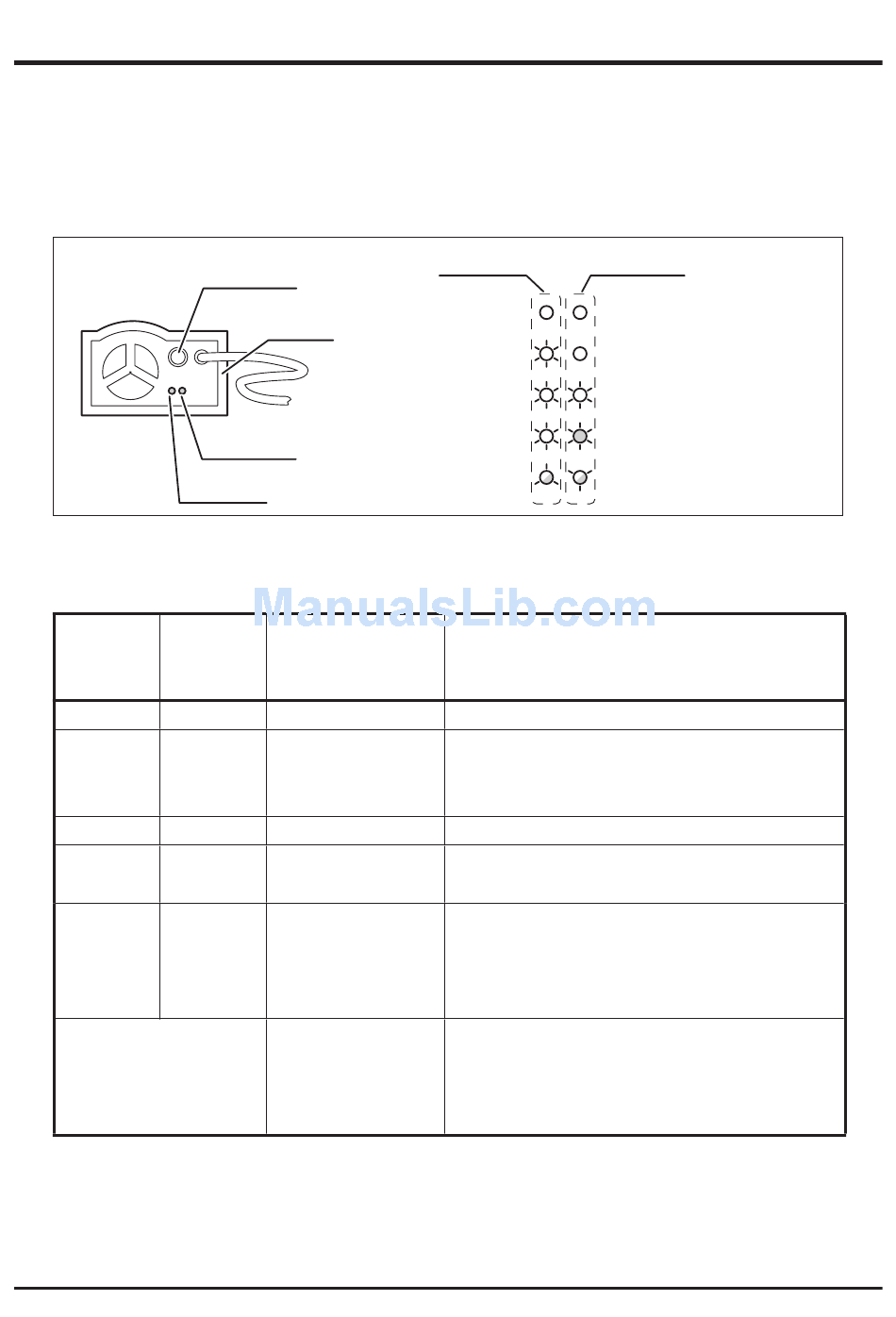

Charger LED Messaging Function
Power LED
4105M-0504-030US
Charger has two LEDs. The Power LED lights up when the power is on and Charge LED
indicates charging and circuit status.
Power Charge
LED
No light No light
Red light No light
Red light Yellow light Charging
Red light Green light Charge complete
Yellow flash Green flash
(short period) (short period)
None of the
combination above
Maintenance
Fuse Holder
Charger
Charge LED
Status
LED
Power is off
Power is [ON].
Battery is
not connected
Charging
Circuit, connection
or battery failure
Power LED
No Light
Red Light : Power ON
Red Light
Red Light
Blinking Yellow
→Turn the switch of charger [OFF] then connect
battery again and turn switch [ON] again. Also
check the fuse in fuse holder.
→Turn charger [OFF] then disconnect battery
connector.
→Flashing for a short period of time is normal. If yellow
and green flashing continues for a long time, (more
than 40 minutes.) battery may damaged. Please
contact your CANYCOM representative.
→ Tu r n c h a g e r [ O F F ] i m m i d i a t e l y a n d c h e c k
connection between charger and battery. If
connection appears normal, please contact your
CANYCOM representative.
-26-
Charge LED
No Light
No Light : Battery not connected
Yellow Light : Charging
Green Light : Fully Charged
Blinking Green
Corrective Measure
-
-
