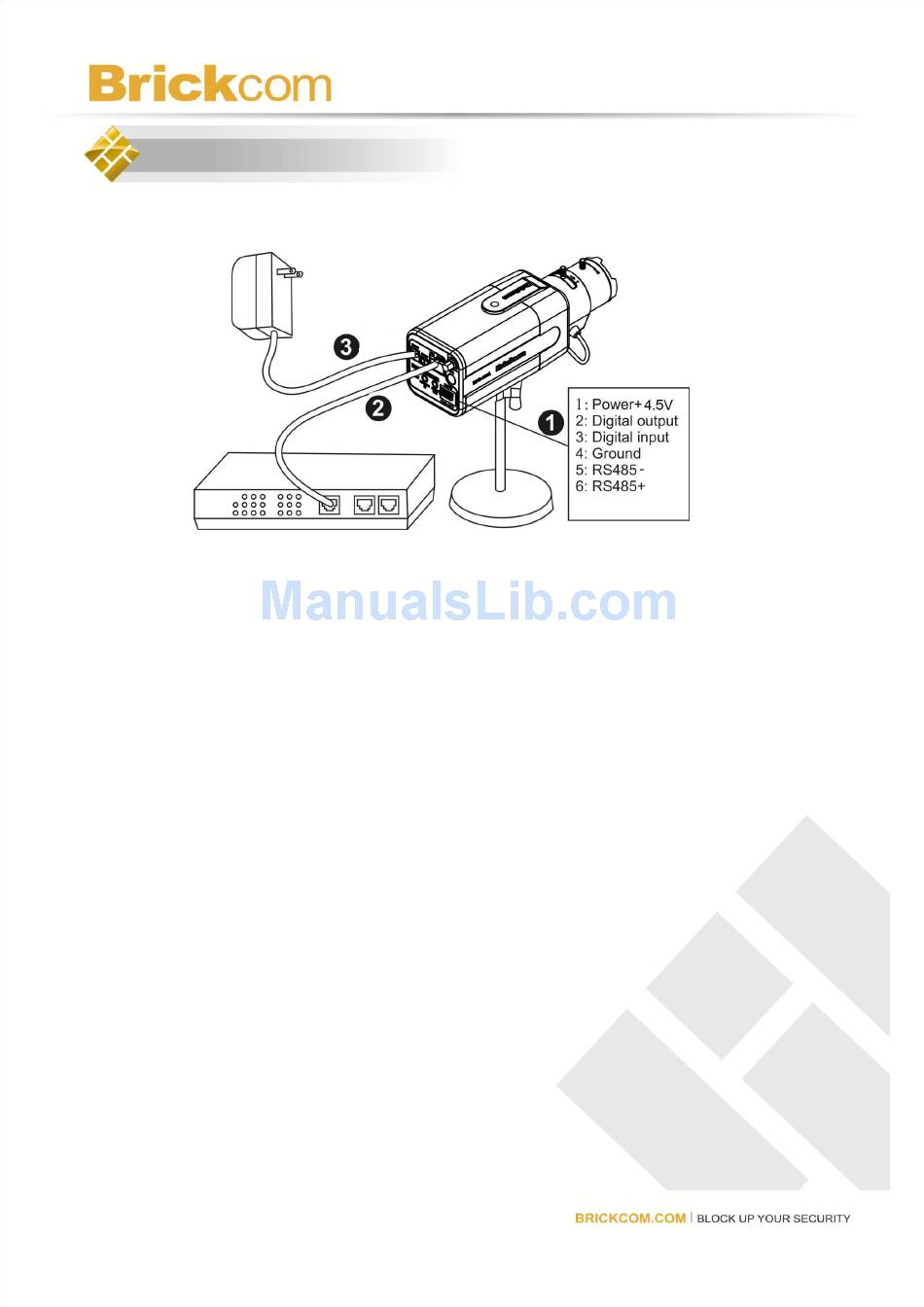

5. Camera Connection
Basic Connection (Without PoE)
1.
To attach external devices, such as sensors and alarms, connect them to the
extension I/O terminal block.
2.
Connect the camera to a switch using an Ethernet cable.
3.
Connect the supplied power cable to the camera and plug it into a power
outlet.
