Brickcom Fixed Box Series Hardware User Manual

Megapixel day & night fixed box network camera quality service group
Hide thumbs Also See for Fixed Box Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

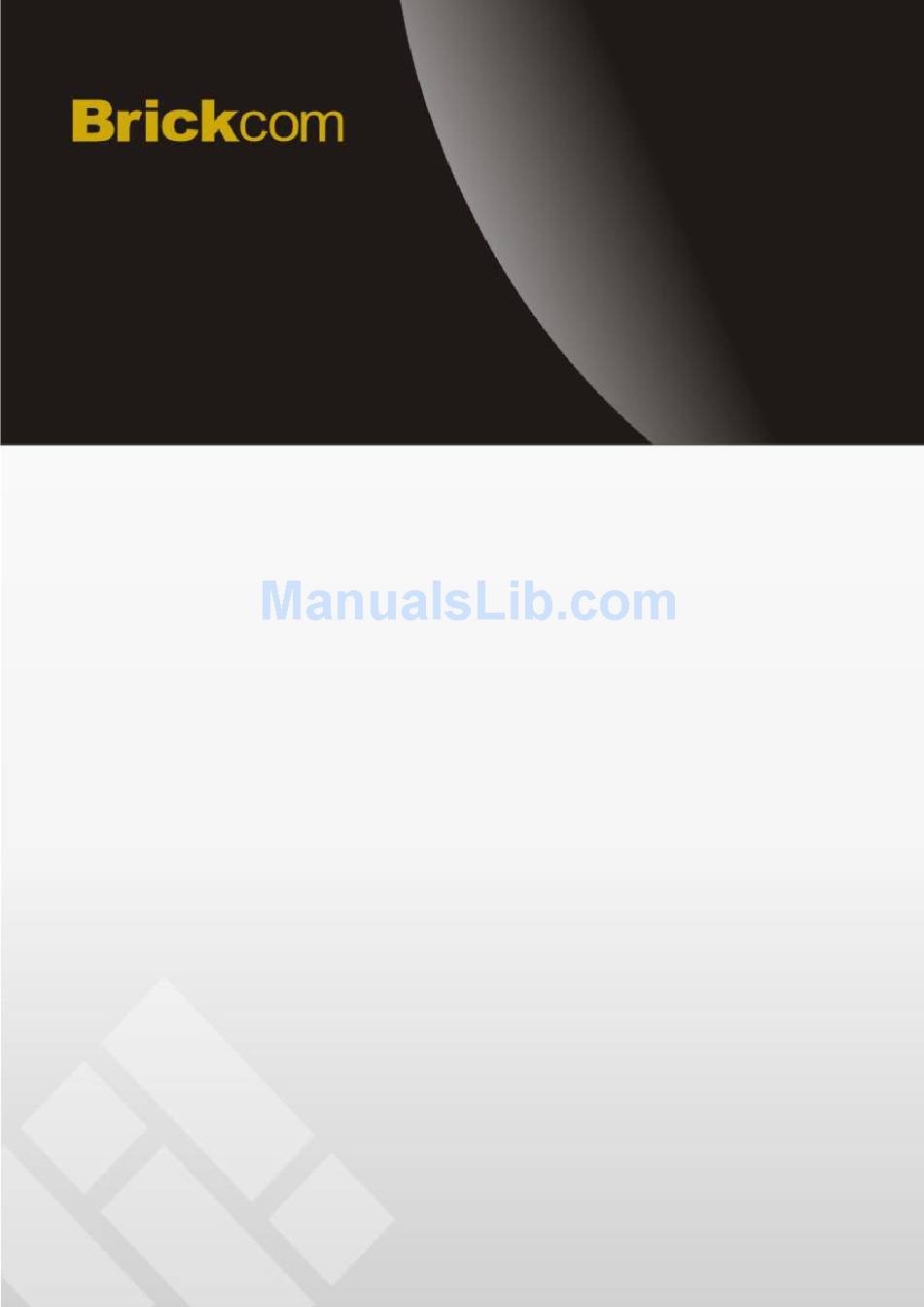

Hardware User's Manual
Megapixel Day & Night
Fixed Box Network Camera
Quality Service Group
Fixed Box Series
0

Advertisement

Table of Contents
loading

Related Manuals for Brickcom Fixed Box Series

Summary of Contents for Brickcom Fixed Box Series

  • Page 1 Hardware User’s Manual Megapixel Day & Night Fixed Box Network Camera Quality Service Group Fixed Box Series...
  • Page 2 1. Separate User Manual into HW and SW. 2. Merge FB-100Ap/FB-100Ae/FB-130Np Series into this User Manual. Product name: Network Camera (Fixed Box series) Release Date: 2011/12 Manual Revision: V3.0 Web site: www.brickcom.com support@brickcom.com Email: info@brickcom.com © 2011 Brickcom Corporation. All Rights Reserved...

  • Page 3: Table Of Contents

    Table of Contents Before You Use This Product ..............3 Regulatory Information ................4 Chapter 1- Package Contents ..............5 Chapter 2- Fixed Box Network Camera Overview ........... 6 Chapter 3-LED Behavior ................7 Chapter 5- Installation ................11 5.1 Hardware Installation.................... 11 5.2 System Requirements ..................

  • Page 4: Before You Use This Product

    Before You Use This Product In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.

  • Page 5: Regulatory Information

    Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Chapter 1- Package Contents

    Chapter 1- Package Contents Please check to make sure that the product package contains all the accessories listed below. b. CS mount Lens (Optional) Network Camera c. Product CD d. Camera Stand e. Warranty Card Allen Key g. Power Adapter (Optional) Easy Installation Guide Detachable Antenna (Optional)

  • Page 7: Chapter 2- Fixed Box Network Camera Overview

    Users can view live feed anywhere by internet browser or 3G mobile phone. Also, the Fixed Box series can transmit the video to portable devices through other technology, such as WiMax, NAS, Digital Frame and power line.

  • Page 8: Chapter 3-Led Behavior

    Chapter 3-LED Behavior Function LED Behavior Description Remark Wireless WPS in Fixed Box progress Front Right (Blue) Wireless Fixed Box Connection Front Right Error (Blue) Wireless Session Fixed Box overlap Front Right detected (Blue) Wireless Fixed Box Steady on Successfully Front Right Connected (Blue)
  • Page 9 Chapter 4- Device Appearance Description Photo Indication & Dimension Diagram Status LED Microphone/Line In Power Connector (AC24V In) Ethernet RJ45 10/100 Socket Power Connector (DC24V In) (Link/Power LED embedded) Light Sensor Detachable Antenna WPS LED WPS Button SD/SDHC Card Slot Extension I/O Terminal Block Reset Button Audio Out...
  • Page 10 <Vari-focal Lens with Auto Iris> (DC Drive) --- CS Mount Zoom Controller Focus Controller Extension I/O Terminal Block The Network Camera provides an extension I/O terminal block which is used to connect the camera with external input/output devices. The pin definitions are listed as below. Function Power +5V Digital Output...
  • Page 11 Hardware Reset Reset Button The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.

  • Page 12: Chapter 5- Installation

    Chapter 5- Installation 5.1 Hardware Installation Mounting the CS-Mount Lens to the Camera <Vari-focal Lens with Manual Iris> --- Optional Lens Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount until it stops. If necessary, adjust the iris controller, focus controller, and zoom controller to get the best resolution.
  • Page 13 <Vari-focal Lens with Auto Iris> --- Optional Lens Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount until it stops. If necessary, adjust focus controller, and zoom controller to get the best resolution. Connect the lens cable plug (DC Iris control cable) to the camera side connector. To adjust the lens: The zoom controller can be manually adjusted to control the zoom factor on the camera.

  • Page 14: System Requirements

    5.2 System Requirements Operating System: Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory: 1024 MB or more Monitor: 1024 x 768 pixels or more, 24-bit True color or better Network Interface: 10/100Mbps Network interface card must be installed Web Browser:...

  • Page 15: Camera Connection

    5.3 Camera Connection Basic Connection (Without PoE) To attach external devices, such as sensors and alarms, connect them to the extension I/O terminal block. Connect the camera to a switch using an Ethernet cable. Connect the supplied power cable to the camera and plug it into a power outle Depending on the user’s application, an Ethernet cable may be needed.

  • Page 16: Software Installation

    Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box.
  • Page 17 In the Install Shield Wizard dialog box, click <Next> to continue. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
  • Page 18 Select either “Complete” setup or “Custom” setup to install the system. If COMPLETE SETUP is selected: All program features will be installed into the default directory. Check the option “Complete” and then click <Next>. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next>...
  • Page 19 Select to create shortcuts. Click <Next> to continue. The installation information will be displayed. Click <Next> to continue.
  • Page 20 To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. If CUSTOM SETUP is selected: This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s).
  • Page 21 Select the features to install. Click <Next> to continue. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue.
  • Page 22 Select programs to create shortcuts. Click <Next> to continue. The installation information will be displayed. Click <Next> to continue.
  • Page 23 To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. EasyConfig To launch EasyConfig, select EasyConfig from the start menu. If Complete Setup type was used in the software installation, an EasyConfig icon was installed on the desktop. Double click to open the icon.
  • Page 24 If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. Click <Start> to continue. The program will automatically search for the camera in the intranet.
  • Page 25 Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually.
  • Page 26 There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>.
  • Page 27 If <Set IP Address configuration manually> is selected, the following pages will be displayed.
  • Page 28 Otherwise, this page will not be shown. *If desired, click <Skip> to skip this setting. EasyLinkTM is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses.
  • Page 29 If “Static IP address settings” was selected, the failure page will be displayed as below: If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View>...
  • Page 30 Once installation is complete, the Administrator should proceed to the next section "Accessing the Network Camera" for necessary changes and configurations.
