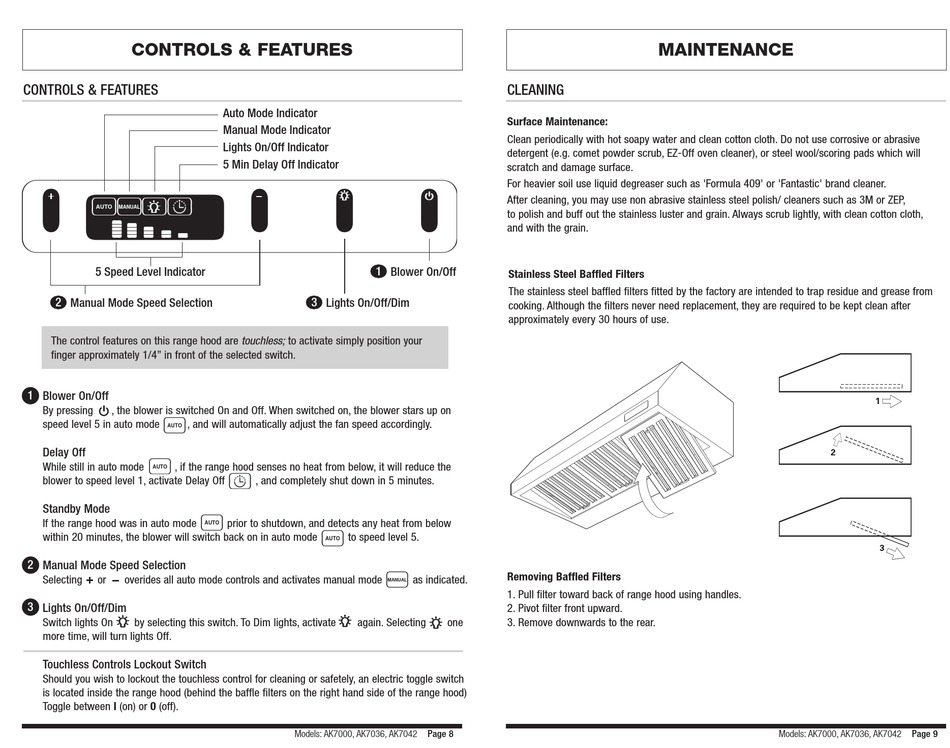

CONTROLS & FEATURES
CONTROLS & FEATURES
AUTO
MANUAL
5 Speed Level Indicator
2 Manual Mode Speed Selection
The control features on this range hood are touchless; to activate simply position your
finger approximately 1/4" in front of the selected switch.
1 Blower On/Off
By pressing , the blower is switched On and Off. When switched on, the blower stars up on
speed level 5 in auto mode
AUTO
Delay Off
While still in auto mode , if the range hood senses no heat from below, it will reduce the
AUTO
blower to speed level 1, activate Delay Off
AUTO MANUAL
Standby Mode
If the range hood was in auto mode
within 20 minutes, the blower will switch back on in auto mode
2 Manual Mode Speed Selection
Selecting or overides all auto mode controls and activates manual mode
AUTO
L MANUAL
3
Lights On/Off/Dim
Switch lights On by selecting this switch. To Dim lights, activate
more time, will turn lights Off. AUTO
MANUAL
Touchless Controls Lockout Switch
Should you wish to lockout the touchless control for cleaning or safetely, an electric toggle switch
is located inside the range hood (behind the baffle filters on the right hand side of the range hood)
Toggle between I (on) or 0 (off).
Auto Mode Indicator
Manual Mode Indicator
Lights On/Off Indicator
5 Min Delay Off Indicator
3 Lights On/Off/Dim
, and will automatically adjust the fan speed accordingly.
MANUAL
MANUAL
, and completely shut down in 5 minutes.
prior to shutdown, and detects any heat from below
AUTO
MANUAL
to speed level 5.
AUTO MANUAL
AUTO
again. Selecting
AUTO
MANUAL
Models: AK7000, AK7036, AK7042
CLEANING
Surface Maintenance:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive
detergent (e.g. comet powder scrub, EZ-Off oven cleaner), or steel wool/scoring pads which will
scratch and damage surface.
For heavier soil use liquid degreaser such as 'Formula 409' or 'Fantastic' brand cleaner.
After cleaning, you may use non abrasive stainless steel polish/ cleaners such as 3M or ZEP,
to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth,
and with the grain.
1 Blower On/Off
Stainless Steel Baffled Filters
The stainless steel baffled filters fitted by the factory are intended to trap residue and grease from
cooking. Although the filters never need replacement, they are required to be kept clean after
approximately every 30 hours of use.
Removing Baffled Filters
as indicated.
MANUAL
1. Pull filter toward back of range hood using handles.
2. Pivot filter front upward.
one 3. Remove downwards to the rear.
Page 8

MAINTENANCE

2
Models: AK7000, AK7036, AK7042
1
3
Page 9
