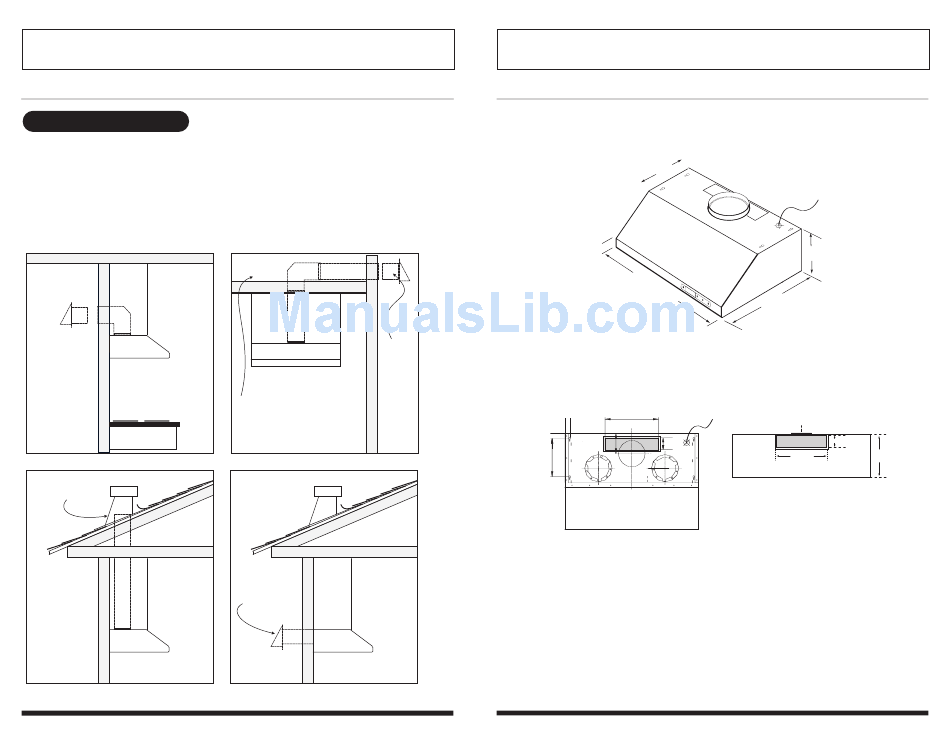

INSTALLATION

DUCTING
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling,attics or
garages. All exhaust must be ducted to the outside.
Use metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
Some Ducting Options:
Side wall cap
w/ gravity damper
Roof Pitch w/
Flashing & Cap
Side wall cap
w/ gravity damper
12"
Soffit or crawl space
2-1/4"
30"
36"
42"
Rear Ducting
Models: AK7000, AK7036, AK7042

SPECIFICATIONS

2-1/4"
TOP VIEW
1/2" Elec K.O.
1"
1-1/8"
8-5/8"
10"
22"
Page 2
INSTALLATION
12"
30"
36"
42"
22"
REAR VIEW
10" 1/2" Elec K.O.
4-1/2"
3-1/4"
Models: AK7000, AK7036, AK7042
TOP VIEW
1/2" Elec K.O.
1"
4-1/2
1-1/8"
8-5/8"
10"
CL
3-1/4"
10"
10"
Page 3
