INSTALLATION

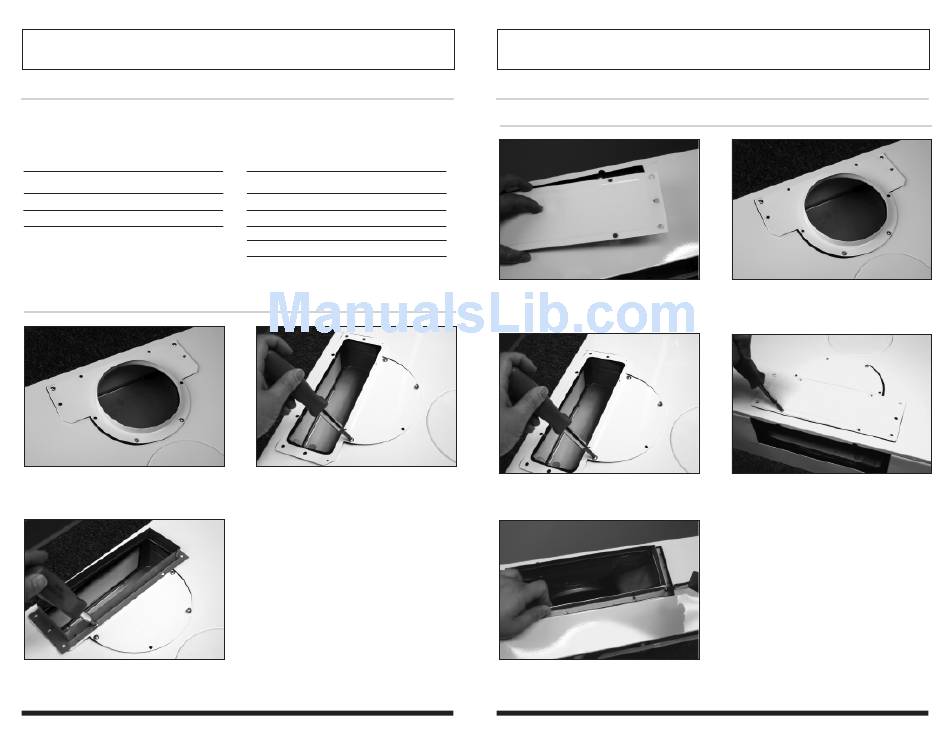

CONVERTIBLE OPTIONS
This range hood is equipped with the option of a 6" vertical discharge, 3 1/4"x10" vertical discharge,
or 3 1/4"x10" rear discharge. Additional accessories are provided to convert to either of the above
discharge methods.
Convertible Options
Vertical discharge 6" round
Vertical discharge 3 1/4"x10"
Horizontal rear discharge 3 1/4"x10"
3 1/4"x10" Vertical Discharge
1. Remove pre-mounted 6" transition adaptor or duct
opening. Leave attached gasket in its original place.
3. Mount the 3-1/4"x10" starting collar on top of
transition piece with remaining screws.
Convertible Accesories
Round to rectangular transition adaptor
Rectangular to round transition adaptor (pre-mounted)
Gasket (pre-mounted)
Rectangular rear cap (pre-mounted)
3 1/4"x10" starting collar
2. Place rectangular transition adaptor as shown over
gasket and by first installing 4 screws on half round
section.
Models: AK7000, AK7036, AK7042 Page 6
INSTALLATION
CONVERTIBLE OPTIONS
3 1/4"x10" Rear Discharge
1. At rear of range hood, remove all screws on pre-
mounted rear rectangular cap and remove cap.
3. Mount rectangular transition piece at opening with
gasket as shown.
5. Mount starting collar (provided) at rear discharge
opening with gasket.
2. Remove top pre-mounted transition piece. Leave
attached gasket in its original place.
4. Mount rectangular cap (previously removed) on top
of transition adaptor.
