INSTALLATION
INSTALLATION

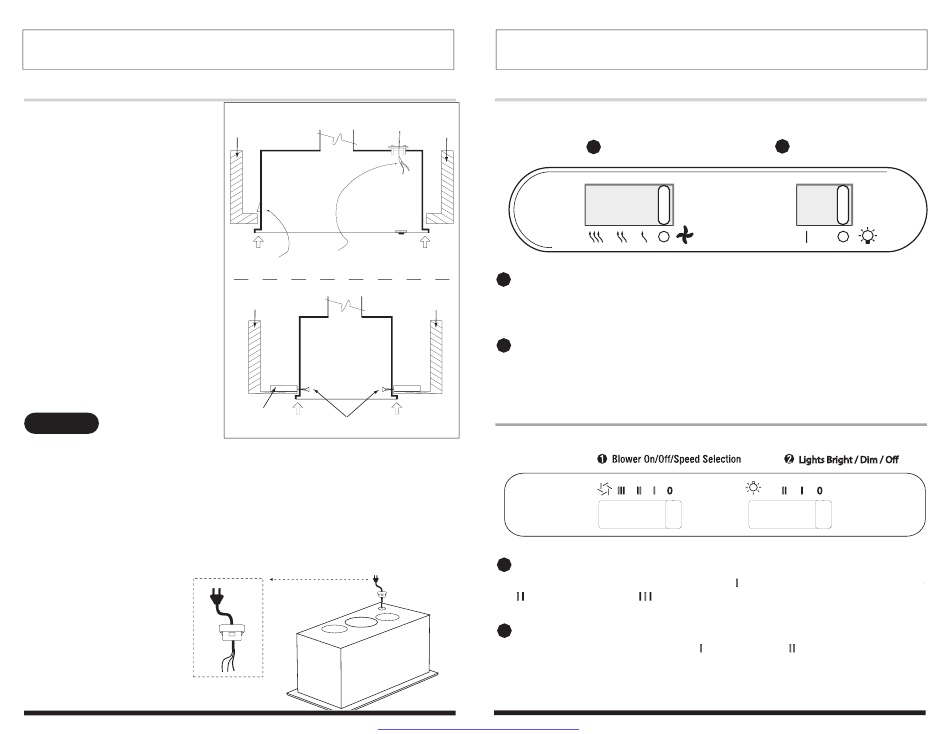

Mounting the Range Hood
1. Determine and mark the mounting
position of the range hood with a pencil.
2. Cut out the opening where the range
hood will be installed.
3. Cut out wall or ceiling area for clearance
of ductwork. Install ductwork prior to
range hood.
4. Determine location for the power
supply cable. After drilling access hole,
rout the cable into the electrical box
of the range hood. Secure with a cable
lock and connect to range hood
electrical system.
5. Position range hood into location and
ensure spring locking clip has locked
into position.
6. Fasten wood screws into wood frame
opening via the long side. Wood blocking
may be necessary if wood frame is too thin.
ELECTRICAL
WARNING
All Electrical work must by performed by qualified electrician or person with similar technical
know how and background.
For personal safety, remove house fuse or open circuit breaker before beginning installation.
Do not use extension cord or adapter plug with this appliance.
Follow National electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply., and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.
Cable Lock:
A cable locking connector (not
supplied) might also required by
local codes. Check with local
requirements and codes, purchase
and install appropriate connector if
necessary.
Front View
Ductwork
wood frame
Power supply cable
Locking clip
Entry into range hood
Side View
wood frame
wood
Attach 2 screws to each
blocking
long side of AK8100/AK8200
Cable Lock
Get other manuals https://www.bkmanuals.com
CONTROLS & FEATURES (AK8100S/AK8200S)
wood frame
Controls
1
Speed Selection
This switch controls the speed of the blower. The first position is low speed,
wood frame
the second is medium speed, and the third is high speed.
2
Lights On/Off
Turn lights on or off by moving this switch.
CONTROLS & FEATURES (AK8000AS)
1
Speed Selection
This switch controls the speed of the blower. I is low speed,
I I is medium speed, and I I I is high speed.
2
Lights Bright / Dim / Off
This switch controls the lights. Slide switch to I for dim lighting and I I for bright lighting,.
Page 6
CONTROLS & FEATURES
1
Speed Selection
III
II
I
0
2
Lights On/Off
Lights Bright / Dim / Off
II
I
0
Page 7
