Operating Instructions

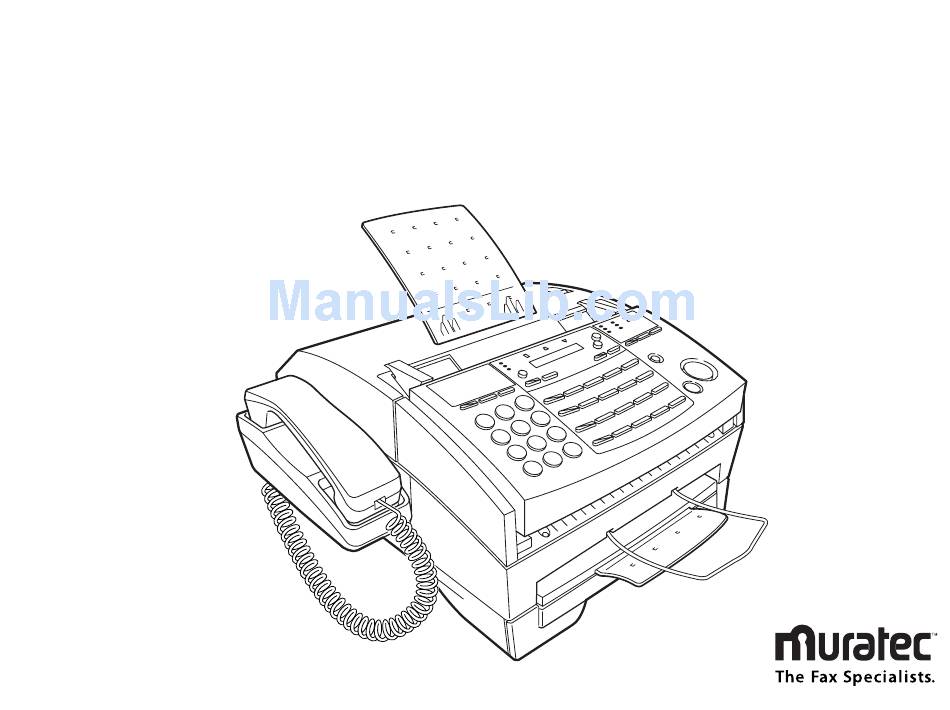

For Muratec's F-65 plain-paper fax machines

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-65 and is the answer not in the manual?

Questions and answers

Related Manuals for Muratec F-65

Summary of Contents for Muratec F-65

  • Page 1: Operating Instructions

    Operating Instructions For Muratec’s F-65 plain-paper fax machines...
  • Page 2 Muratec F-65 Quick Reference Guide One-Touch Keys Press Program “ “ “ “ Speed-Dial Numbers Program “ “ “ “ Programmable One-Touch Keys Program “ “ “ “ Polling Documents Program “ “ “ “ F-Code Features Program “ “...
  • Page 3 Welcome …...
  • Page 4 NERGY Copyright © 1998 by Muratec America, Inc.; all rights reserved. Muratec, the Muratec logo and all Muratec fax product names contained herein are trademarks of Muratec America, Inc. is a registered mark of the United States Environmental Protection Agency.
  • Page 5 Welcome to your Muratec fax machine! We’ve divided these operating instructions into three sections. • “Getting started” (see page 1.1) covers only what you absolutely have to know to use your machine immediately. • “Beyond the basics” (see page 2.1) provides more details. When you have time, look through it to learn more about your machine’s...

  • Page 6: Table Of Contents

    The other side of the coin; being polled ......2.20 Limiting polling access to your fax machine ..... 2.20 -code communication .
  • Page 7 Working with your answering machine ......3.13 How your fax machine works ....... . . 3.13 Glossary .

  • Page 8: Getting Started

    Getting started A quick and friendly trip through the basics of your Muratec fax machine...

  • Page 9: What's Inside This Section

    • Fine (203 196 lpi) • Superfine (203 392 lpi). Grayscale levels — refers to the many shades of gray your fax machine sees on a document it’s sending. It’s likely most of your fax documents will be dark text on white paper.

  • Page 10: Take It Out Of The Packaging

    Please obtain a full-size replacement roll from your authorized Muratec dealer. For the best results and longest life from your fax machine, please use only Muratec- brand Ink Film, which is designed specifically for your model.
  • Page 11 — If you connect a second telephone or answering machine to your machine, this is where you plug in the cord. jack — Where you plug in your fax machine’s handset. One end of HANDSET the curled handset cord goes into the HANDSET other end of the curled cord plugs into the handset itself.

  • Page 12: What Do The Keys Do

    — Press this key and enter a function number to access your PROGRAM machine’s programs. light — If glowing, indicates your fax machine is receiving MEMORY RECEIVE an incoming fax document into the machine’s electronic memory. —...
  • Page 13 — If glowing, advises you the fax machine is COMMUNICATION communicating with another one. light — If glowing, indicates your fax machine is ready to commu- nicate using the feature (see page 2.50). light — If glowing, indicates a problem has occurred during ALARM fax communication.

  • Page 14: Setting Up

    • Dry — Avoid any location where splatters or sprays of liquid could reach your fax machine. • Level, and vibration-free. • Near a phone jack — Your fax machine uses a standard telephone jack, also known as an RJ-11. • Near an power outlet —...
  • Page 15 Cassette cover Take off the cover. Paper plate Push the paper plate down until it locks into position. Adjust the paper setting to the letter or legal position depend- ing upon the size you are using. When you use legal-sized paper, pull the front part of the cas- sette toward you.

  • Page 16: Attach The Paper-Handling Parts

    Plug the non-pronged end of the the rear side of the machine. Plug the pronged end of the a surge suppressor, as mentioned on page 1.6). Note: This will turn on your fax machine. When you connect the power, the 01/01/1999 Handset cord When the date and time are displayed on the normal standby mode and ready for normal operation.

  • Page 17: Adjust The Monitor Speaker's Volume

    MONITOR CALL Installing / Changing the Ink Film Note: Your fax machine can’t print without ink film. If it runs out of ink film, the machine beeps and displays: Check Ink Film Your fax machine uses Muratec’s Film Imaging system to provide high-quality fax printouts and copies on plain paper.
  • Page 18 . Close the top cover of your fax machine. You will feel a click when it’s closed. Note: Your fax machine won’t work if the top cover isn’t closed. Re-attach the document hopper, if you removed it in step 1.

  • Page 19: Attaching A Second Phone Or An Answering Machine

    It’s easy to attach a second phone or answering machine to your fax machine. If you do this, only your fax machine connects to the phone outlet in the wall. The other device receives phone signals through your fax machine.

  • Page 20: Easystart

    Getting started EasyStart EasyStart is already installed on your fax machine. Use it to guide you in entering the bare-bones settings required for normal operation. If necessary, you can always make changes to these settings later. Important: Before beginning EasyStart, be sure you have correctly installed your machine and loaded paper into it (see “Setting up,”...
  • Page 21 When the name is as you want it, press now indicates the type of dialing, tone or pulse, that is set for your fax machine: Phone Type:Tone If the setting you see is acceptable, skip to step 11. If not, go on to step 10.
  • Page 22 Getting started To change the setting, press once or twice until the mode you want appears. Here, we changed the setting to Pulse mode: Phone Type:Pulse Press to save the setting. ENTER ** Complete ** All done! 1.14...

  • Page 23: Sending Faxes

    Document thickness: 0.06 to 0.13 mm Note: The maximum width of the scanned area is 8.2 inches. This means there will be a 0.16-inch margin on each side of the page that your fax machine will not scan. Things not to put in your fax To avoid paper jams and damage to your machine, do not insert: •...
  • Page 24 If you must use only one phone line for both your phone and fax, consult your tele- phone company for information on how you can temporarily disable call-waiting or after you have dialed at least PAUSE voice mail while using the fax machine. Press ENTER Time (05-10): 05 If the setting you see is acceptable, skip to step 4.

  • Page 25: How To Insert A Document

    This cuts your actual on-line time to a minimum. Save Even More Money. Set up a delayed command (see pages 2.14–2.15) to send your document to that other Muratec fax machine after hours, and you can save more money, because the line charges will be cheaper.

  • Page 26: Manual Sending

    Important: If you want to cancel a transmission in progress, you will need to use the Review Commands function. See “Canceling sending a document,” page 1.20. At the end of the operation, your fax machine beeps and displays: ** Complete ** 1.18...

  • Page 27: If The Call Doesn't Go Through: Redialing

    Your fax will continue to redial the number every few minutes until one of these hap- pens first: • It reaches the remote fax machine. • It has automatically redialed the number for the last try (again, see “Making redial settings,” next column).

  • Page 28: Canceling Sending A Document

    To cancel either an in-progress transmission or an automatic redial from memory, use the Review Commands function. A short explanation: • Because your fax machine can store multiple transmission commands in memory, it keeps track of each command by assigning it a command number — such as “C01.”...

  • Page 29: Receiving Faxes

    You have your fax machine installed on a “dedicated” line (one it doesn’t share with a second phone). In this mode: Your fax machine answers each incoming call after a certain num- ber of rings (see page 2.4) and attempts fax reception.

  • Page 30: Tel/Fax Ready Mode

    1.22 Note: Turning on the fax primary mode on your fax machine won’t turn off ringers What if you answer a fax call? With your fax machine in Tel/Fax Ready mode, you can easily use your fax machine on the same line as other telephone(s) already in your home or office.

  • Page 31: Ans/Fax Ready Mode

    Muratec dealer. When the paper or ink film runs out Getting the word from your machine When your fax machine runs out of paper or ink film, it beeps, the glows and the light comes on. Receiving faxes when out of paper or ink film If your machine runs out of paper or ink film, it stores up to 50 separate fax recep- tions in memory.

  • Page 32: Making Copies

    Getting started Making copies You can make copies from your fax machine by using either the feeder or the machine’s memory. Copying from feeder Use this mode to make a single copy. Note: When you make a copy from the feeder, you cannot select the normal resolu- tion.

  • Page 33: It's A Great Phone, Too

    Dial the number you want. You may use either the numeric keypad, a one- touch key or a speed-dial number. Note: Remember, your fax machine’s monitor speaker is not a speakerphone. Be sure to pick up the handset if the other person answers! Note: You can also dial a fax call using on-hook dialing if you want to hear the other machine’s fax tones.

  • Page 34: Call Request

    Getting started Call request You can send or receive a fax message and have a regular phone conversation on the same call. For further information on how to use this function, see page 2.47. Dialing during a power failure You cannot make a telephone call or send a fax during a power failure or if your fax is disconnected from its power source.

  • Page 35: Beyond The Basics

    Beyond the basics We’ve covered the “musts.” Now, let’s explore the goodies.
  • Page 36 Beyond the basics What’s inside this section Getting everything just the way you want it ......2.2 Autodialer .

  • Page 37: Getting Everything Just The Way You Want It

    In the next few pages, we will cover other settings in more detail. Setting up for scans You can set parameters for how your fax machine scans documents: • Primary resolution mode — Gives you four ways to send faxes, either — nor- mal, fine or superfine resolutions —...

  • Page 38: Setting The Print Parameters

    Print reduction lets you set the machine to reduce a large incoming document to a size which will fit on your paper. Copy reduction lets you reduce the size of copies made on your fax machine. Here are the options for both print reduction and copy reduction settings:...

  • Page 39: Setting The Copy Parameters

    ENTER Setting the number of rings You can set the number of times your fax machine will ring before answering a call. shows the current reduction margin: Setting Static on a phone line during a call may ruin your attempts to communicate via fax.

  • Page 40: Setting Silent Mode

    You can turn on your machine’s silent mode to mute the ringer, the alarm and the key-touch tone, if you choose. Note: If you use your fax machine as both a fax and phone (with the handset), you may not want to use this feature.

  • Page 41: Setting The Language

    Printing a program list Your machine can also print a program list. This list gives a brief summary of instructions available on your fax machine, organized in a “program tree” so you can see which key combinations produce which instructions.

  • Page 42: Autodialer

    Your fax machine’s autodialer will hold both fax numbers and phone numbers. This is possible because your fax machine first checks to see if there’s a document in the feeder. If there is, the machine dials as a fax machine. If there isn’t, it dials as a telephone.

  • Page 43: Using One-Touch Numbers

    Beyond the basics Using one-touch numbers As indicated previously, your fax machine will store up to 15 one-touch numbers by using the keys marked – Entering or changing a one-touch number Important: To erase a number, see “Erasing a one-touch number” (next page).

  • Page 44: One-Touch Fax Dialing

    (To review memory transmission, see page 1.17) If you specified transmission from memory: • Your fax machine scans your document into memory first, then dials the other fax machine. • When the other machine answers, your fax will transmit the document directly from memory.

  • Page 45: Printing A List Of Your One-Touch Numbers

    ENTER Using speed-dial numbers As we mentioned before, your fax machine will store up to 85 speed-dial numbers, designated by two-digit identifier codes from 01 (the first number) through 85. Important: Speed-dial numbers 1-9 require a leading zero when entering them into the machine.

  • Page 46: Fax Dialing Via Speed-Dial

    (To review memory transmission, see page 1.17): If you specified transmission from memory: • Your fax machine scans your document into memory first, then dials the other fax machine. • When the other machine answers, your fax will transmit the document directly from memory.
  • Page 47 The 9-1-555-9292039_ Note: Remember that your fax machine’s monitor speaker is not a speakerphone. If you dial by using the monitor speaker, pick up the handset to speak to the person that answers the call.

  • Page 48: Easydial Directory Dialing

    If an EasyDial call fails, what happens next depends upon the kind of call it was. If it was a fax call … … Your fax machine automatically redials the number after the redial interval (see page 1.19). It keeps trying until either of the following occurs: •...

  • Page 49: Delayed Transmission

    Delayed transmission Take advantage of lower evening and weekend long-distance rates with delayed transmission. Your fax machine can store up to 30 delayed commands, each of which you can program up to 31 days in advance. Important: If you program a full 30 delayed transmission commands, no further memory transmission is possible until the machine completes at least one of the delayed commands.

  • Page 50: Reviewing Or Canceling Delayed Commands

    Reviewing or canceling delayed commands If you have stored a delayed command in your fax machine, it will hold it in mem- ory until it either completes the command successfully or reaches its maximum number of redial attempts (see page 1.19). Your machine can store up to 30 delayed commands.

  • Page 51: Broadcasting

    Important: Do not insert a comma after the last fax number. Note: If you enter characters by mistake, just press before proceeding. Press . Your fax machine will scan the document into memory and then START send it to each number you have entered. 2.16 Delayed broadcasting What if you want the broadcast to happen later? That’s the purpose of setting up a...

  • Page 52: Relay Broadcast Initiation

    For you to perform relay broadcast initiation, three things must be true: • The remote fax machine must be a Muratec fax machine with “hub” capability. Note: If you are not sure whether the unit to which you want to transmit is a •...
  • Page 53 5. Press START If, in step 6, you chose an immediate relay broadcast initiation, your fax machine will begin dialing the remote “hub” machine. However, if you requested a delayed command, the machine will display “Reserved” on the mand is in memory.

  • Page 54: Polling

    Polling allows someone to fax a document to you without the other person having to make (and pay for) the call. Your machine can perform: • Regular polling — Retrieves a document from the remote fax machine. • Sequential polling — Retrieves a document from several remote fax machines.

  • Page 55: F -Code Polling

    Not only can you poll, you also can be polled. To set up a document for regular polling by another machine: Press to change your fax machine to the Fax Ready mode. In the Fax RECEIVE Ready mode, neither the Important: Your machine cannot be polled if it’s in Tel Ready mode.

  • Page 56: F -Code Communication

    (see the Glossary that begins on page 3.16), has now created a fax industry standard for using sub-addressing and password-based communica- tions with not only other Muratec fax machines but also other manufacturers’ machines. One name for this standard is F-Code, and that is what we’ll call it in these instructions and on your machine’s display.
  • Page 57 Use the numeric keypad to enter the exact subaddress for this Note: The subaddress must be unique to this -code box; i. e., no other -code box in this fax machine can have the same subaddress. This subaddress can be up to 20 characters in length and can include any combination of numbers and the * and # symbols (but no other non- numerical characters).
  • Page 58 Use the numeric keypad to enter a two-digit number indicating how long, in number of days (00-31), you want your fax machine to keep received docu- ments in this Note: Your fax machine can normally store incoming documents in -code box.

  • Page 59: Erasing An Empty F -Code Box

    -code box, just use the shows: . code. . The shows: ENTER . code in step 6, the fax machine will reject the attempt and abort this operation. -code box you have selected, press . The fax will return to step 3. PROGRAM -code box, press The machine will return to standby mode.

  • Page 60: Printing A Document Received In An F -Code Box

    . code, your fax machine will print all documents in this -code box and then erase them. • If you enter an incorrect . code, your fax machine will refuse to print the document. -code transmission and polling sub-addressing from another fax With -code, your machine can send secure transmissions to other manufacturers’...

  • Page 61: F -Code Polling

    ENTER Press START If you chose an immediate transmission in step 9, your fax machine will begin dialing. If you chose a delayed command, the machine will display “ ** Reserved ** ” on the , indicating that the machine has stored the command in memory and will perform it later.
  • Page 62 Press START If you chose an immediate transmission in step 8, your fax machine will begin dialing. If you chose a delayed command, the machine will display “ ** Reserved ** ” on the , indicating that the machine has stored the command in memory and will perform it later.

  • Page 63: Programmable One-Touch Keys

    Beyond the basics Programmable one-touch keys Using the power of programmable one-touch keys The programmable one-touch keys 1– 5 simplify complex fax operations, letting you really tap into your machine’s power. You can “teach” these keys the following multi-step operations for one-key press convenience: •...

  • Page 64: Programming A Broadcast

    Press . The shows the current day and time: ENTER Time : 11/20:30 Instruct your fax to carry out this delayed command in one of the following ways: Option 1: Perform the command once at a certain time on a certain day of the month.

  • Page 65: Programming A Relay Broadcast Initiation

    Note: To erase a programmable one-touch key, refer to page 2.36. Note: For this operation to work, three things must be true: • The remote fax machine must be a Muratec fax machine with “hub” capability. • The call group(s) to which you are faxing must exist on the remote machine.
  • Page 66 Use the numeric keypad to enter the two-digit identifier (01–32) for the first call group. You can specify up to 10 separate groups for each relay broadcast initiation. Between the entry of each new group, press a comma. Do not insert a comma after the last group number. For example, here, we enter 0, 4, OPTIONS Group No.

  • Page 67: Programming An F -Code Transmission

    If you do want to enter or change another key’s programming, go back to step -code transmission -code transmission to occur, three things must be true: • The remote fax machine must support subaddress (and password) capabilities. • A mailbox(...
  • Page 68 Press . The either shows: ENTER P1:No Number … or indicates a command is already programmed into this key. 1 is the key you want to program, skip to step 4. (However, our examples from here will say “ 3” rather than “ 1.”) Select the key in which you want to program a command or change a previ- ously stored command and then press it.

  • Page 69: Programming An F -Code Polling

    Beyond the basics Instruct your fax to carry out this delayed command in one of the following ways: Option 1: Perform the command once at a certain time on a certain day of the month (For example, “Do this at 5:05 PM on the 30th.”) To select this option, use the numeric keypad to enter the date and time when the fax should perform the command: Time :...
  • Page 70 Enter an subaddress for the box to which you want to send the docu- ment. The subaddress can be up to 20 characters in length and can include any combination of numbers and the * and # symbols. Do not include other non-numerical characters.

  • Page 71: Erasing A Programmable One-Touch Key

    Printing a list of your programmable one-touch keys You fax machine can print a list of the commands you have stored in your program- mable one-touch keys. The list includes each key’s one-touch letter, the telephone number, when the command should start, which command you have selected and —...

  • Page 72: Keeping Things Secure

    Keeping things secure Your machine’s security features can help you keep private fax documents private, avoid unwanted outside communication and even protect against unauthorized use of your machine. The key to it all: the passcode Your machine has a protection passcode system which is central to the machine’s security features.

  • Page 73: Security Reception

    Security reception shows: With your fax machine’s security reception, you can tell it to keep all received faxes in memory and not to print them. Later, you instruct it to print out the saved faxes. This is great if, for example, you have concerns about after-hours workers nosing...

  • Page 74: Masking The Pin

    It will also turn security reception off until the next time it’s programmed to security receive. • If you enter an incorrect code, your fax machine will refuse to print and security reception remains active.
  • Page 75 The machine now asks for the Use the numeric keypad to enter the 1057_ Press . Your machine will dial the number. ENTER , the fax machine beeps, and then returns you to step 4. to the autodialer setting. Instead, you .) The START...
  • Page 76 Fax dialing from the numeric keypad while using the Note: If the mask feature is off, dial normally. If you have specified Mode 1 — use “star” power Insert the document in the feeder. Adjust resolution and contrast if necessary. Enter the fax number, then press the * (“star”) key and enter the always goes last.

  • Page 77: Setting For Use With A Closed Network

    Setting for use with a closed network For maximum communications security, use a closed network. This limits your machine to faxing to and from only other Muratec fax machines with the proper passcode. Important: The passcode you use for closed network operation (and limiting polling access;...
  • Page 78 Press to save the setting. ENTER What you do next depends upon what you selected in step 2 or 3: • If either Off or Mode1, the machine will return to standby mode. • If either Mode2 or Mode3, proceed to step 5. now asks if you want to enter a number: BlockJunk Dial If you want to enter or modify a number, press...

  • Page 79: Special Features

    We will cover them here. Cover page Your fax machine can store a cover page to send at the beginning of each outgoing fax. This page includes the current date and time, your Location number (as stored in the ) and a message of up to 40 characters in length.

  • Page 80: Managing Your Fax With Its Journal And Reports

    Managing your fax with its journal and reports Setting the activity journal Just as a checkbook records your financial transactions, your fax machine keeps an activity journal which records its 50 most recent fax transactions. The activity jour- nal lists the following information for each fax transaction: •...

  • Page 81: Oneline + Distinctive Ring Detection

    Beyond the basics Setting the Transmit confirmation reports: Your fax machine can print a transmit confirmation report after sending a fax to any Group 3 fax machine. What the reports tell you gives you the following information for each communication: •...

  • Page 82: Call Request

    (If you still have a problem after trying all of the patterns, please call the Muratec Customer Support Center. From the United States, call 972-364-3350; for the number to call from Canada, check your in-box documentation).

  • Page 83: Talking First, Then Sending A Fax

    2.48 Caller- Caller- of the caller’s phone (or fax) number or name before either your fax machine auto- matically receives the call or you pick up the handset. If you order the caller- information will show on the • The first 16 characters of the caller’s phone number or name on the •...
  • Page 84 SPEED DIAL TEL INDEX Note: Do not press 2, 4, 6 or 8 on the numeric keypad. If you press 2, 4, 6 or 8, the fax machine will change to the EasyDial directory. When the is showing the caller- you want to dial, press •...

  • Page 85: Pc - Fax Feature: Fax/Computer Connectivity

    -232 cable for your machine. If you do not know which cable you use, please contact your authorized Muratec dealer or Muratec Customer Support Center (from the United States, call 972-364-3350. For the number to call from Canada, check your in- box documentation).

  • Page 86: Creating The Rs -232 C Settings

    The settings are: Variable, or 600, 1200, 2400, 4800, 9600 or 19200 bps. When you see your desired setting, press ENTER Note: If using any of the Muratec-tested packages other than either HydraFax or LaserFax, select Variable. shows: Parity...

  • Page 87: Sending/Receiving Faxes With Your Computer

    5 RTS 6 DTR Note: Use the appropriate -232 cable for your machine. If you do not know which cable you use, please contact your authorized Muratec dealer. 2.52 “ Note: This is a list of standard “ 1 N.C.

  • Page 88: Just In Case

    Just in case … Just in case … Tips on how to care for your machine. and suggestions to follow in case of trouble. Also, a Glossary explains fax terms.

  • Page 89: What's Inside This Section

    Caring for your fax machine ........

  • Page 90: Clearing Paper Jams

    Just in case … Clearing paper jams We designed your fax machine to work reliably for years. However, you may occa- sionally experience a paper jam. Here’s what to do. If an original document jams Open the control panel by plac-...
  • Page 91 (The supply roll should be in the front of the machine.) Gently put the cartridge back into the fax machine. If positioned cor- rectly, it will “drop” in smoothly. Important: Your fax machine will not work if the car- tridge is not inserted properly.

  • Page 92: Solving Communications Problems

    Alarm Your fax machine will sound an alarm — a series of short beeps — if either of these two problems occurs: • It has trouble transmitting or receiving. • It runs out of paper or ink film.
  • Page 93 (but not previous operations). You pressed REVIEW COMMANDS No Command ing commands, but your fax machine doesn’t have any stored. You tried to print a document from memory, but No Doc. Stored your fax machine doesn’t have any stored.

  • Page 94: Errors

    If that call does not help and the problem persists regularly, call your authorized Muratec dealer. Error reports When an error occurs, your fax machine prints an error report. Each fax error report lists an error message which includes: • A possible solution to the problem •...

  • Page 95: Transmission Errors

    • The resulting error code • A communications error message (see “What error messages can mean,” below) • The phone number of the fax machine with which your machine had attempted to communicate What error messages can mean The error messages on Check Message printouts can mean a variety of things.

  • Page 96: Caring For Your Fax Machine

    Cleaning tips Some things to keep in mind about cleaning your fax machine: • Do clean it! Dust and dirt, especially around the fax machine’s air vents (see right column) can shorten your machine’s life. • Always unplug the fax machine before you clean it.

  • Page 97: Corrective Cleaning

    Unplug the power cord of your machine from the power source. Moisten a soft cloth with water and a small amount of diluted mild detergent. Important: To prevent damage to the surface of your fax machine, never use thin- ner, benzene, alcohol, acetone, or any other organic solvent to clean your machine.
  • Page 98 Gently put the cartridge back into the fax machine. If you have positioned it correctly (see step 6), it will “drop” in smoothly. Important: Your fax machine will not work if the cartridge is not inserted properly.

  • Page 99: Common Questions

    Before you try calling for help, first please give the Muratec Information System a try. The Muratec Information System is available to you 24 hours a day, 7 days a week. You can use your fax machine to call this “fax-on-demand” system and receive printouts of information, such as the most common questions asked about your machine.

  • Page 100: Reports

    A: Set your machine to print a confirmation report after each transmission (see page 2.46). Q: I don’t want to install a dedicated phone line for my fax machine, so I have con- nected the machine to a phone system. When I get a fax call, all the phones...

  • Page 101: Receiving Faxes

    Your fax will receive the message. START Q: Does my fax machine have to be plugged in to a power source just to receive a message? A: Yes. You can’t receive a fax unless your fax machine is plugged into both the phone jack and the power jack.
  • Page 102 “greeting.” This communication is called handshaking. The way fax machines work is regulated closely by international standards applied by the International Telecommunications Union ( Nations. These standards ensure the compatibility of your fax machine with mil- lions of other fax machines worldwide. 3.14...

  • Page 103: Glossary

    10 wide to a unit with an 8.5 print width. The receiving fax machine will receive a reduced-size printout of the complete image. Bit — The smallest unit of information in a computer. Some Muratec fax machines, which are actually computers “dedicated” to telecommunications, allow users to change bits of information to provide or cancel features through software settings.
  • Page 104 Group 3 units, regardless of manufacturer. See also Monitor — A speaker in most Muratec fax machines which allows the user to hear the dialing process. This is not a speakerphone, because it has no microphone for speaking to the person being called.
  • Page 105 — Public switched telephone network; the most common type of telephone PSTN lines and service in use, in contrast to private or leased lines. A Muratec fax pro- vides fast, reliable data transmission over a PSTN dedicated telephone line.
  • Page 106 Just in case … — Transmit confirmation report; this provides proof that your Muratec fax did send the document you set for transmission. Printed after transmission, the also identifies the telephone number to which the fax sent the document, plus the actual time of transmission and how many pages the unit transmitted.
  • Page 107 Just in case … 3.19...

  • Page 108: Appendix And Index

    Appendix and index...

  • Page 109: Specifications

    (369 mm 377 mm 199 mm . 15.6 lb. (7.1 Kg). Temperature: 41ºF to 94.8ºF (5ºC to 35ºC) Humidity: 10 to 80 %RH Test Document 1 to a Muratec fax machine. Your transmission times will vary, but 11 (216 mm 279 mm)). guidelines and...

  • Page 110: Regulatory Information

    In the event repairs are ever needed on your fax machine, they should be done by Muratec America, Inc., or an authorized representative of Muratec America, Inc. For information, contact the Muratec Customer Support Center at 972-364-3350 (from the U.

  • Page 111: Index

    Cleaning your fax machine ........
  • Page 112 Fax machine, location of ........
  • Page 113 Security reception ............2.38–2.39 Sending faxes (basic instructions) .

  • Page 114: Limited Warranty

    4. Muratec will not be required to make adjustments, repairs or replacements if the product is installed or used at a location deemed by Muratec to be hazardous to health or safety, or if Muratec is not pro- vided with free and reasonable access to the product and a telephone during service availability hours, or if the product location is not accessible by an authorized Muratec service vehicle.

Table of Contents
