13. WAN: Enter the WAN network number for the Frame Relay WAN Port by clicking the
Network Number box and backspacing through the default number and entering your new
WAN Number. Make sure the WAN network number is the same as the MultiFRAD on the
other end of the link.
The WAN network number has to be assigned by the Network Administrator and must be
unique throughout the entire inter-network.
Note: The WAN port does not have the capability of learning the network number, unlike the
LAN port (i.e., the WAN port does not have a file server).
14. Click OK when you are satisfied with your selections.
15. If your MultiFRAD is connected to an IP network, continue with the following steps (16 thru
21).
If no LAN is connected to the MultiFRAD, click the IP Routing Enable check box to disable
IP protocol, then click OK and proceed to step 22.

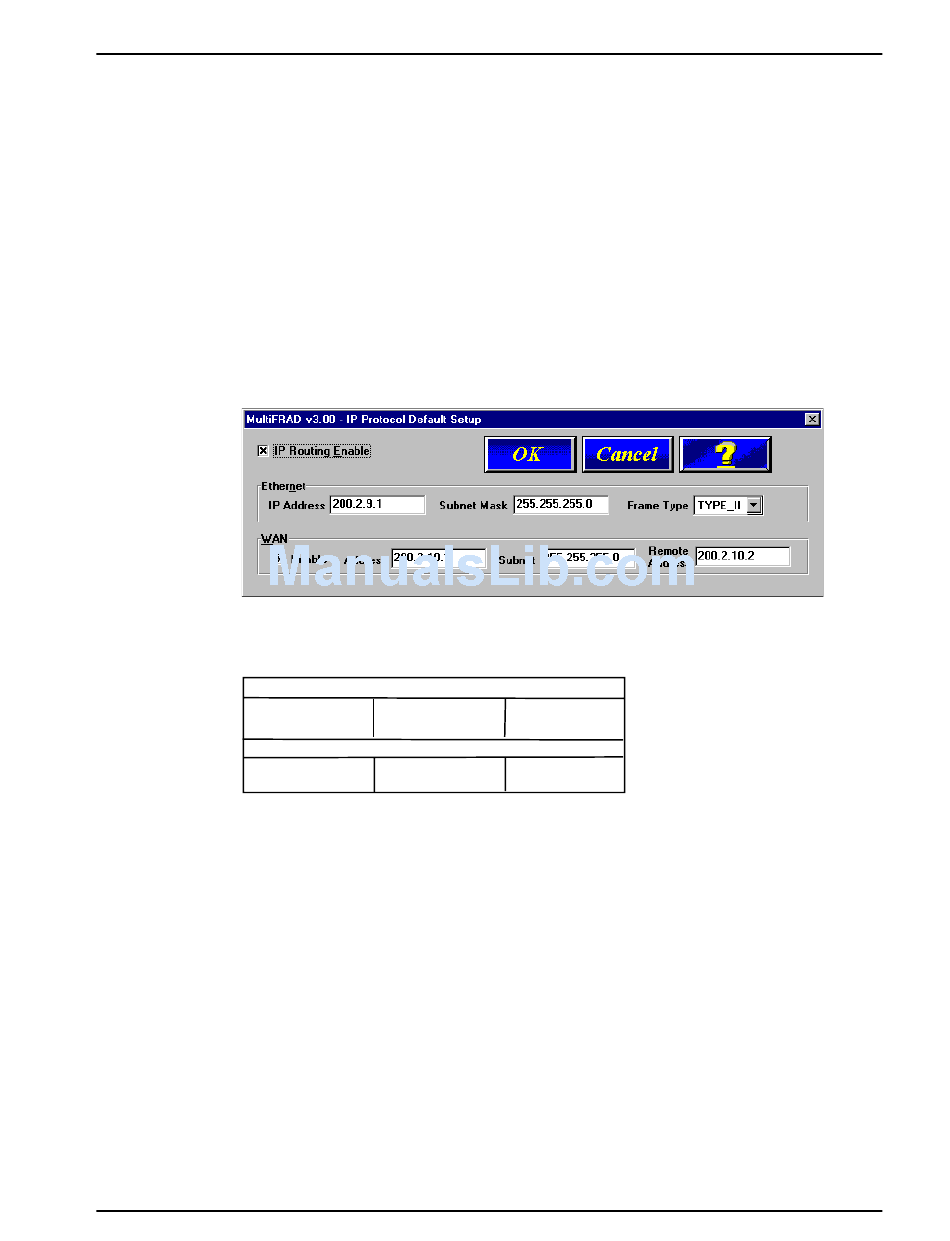

16. Record the IP address protocol information for your specific network in the space provided
below.
IP Address
___.___.___.___
IP Address
___.___.___.___
17. The default Ethernet IP Address has to be changed to your unique LAN address. Enter an
acceptable unique IP address for the Ethernet port.
18. Change the default Subnet Mask and Frame Type to the values you have assigned to your
LAN port.
19. The default WAN Address has to be changed to your unique WAN address. Enter an
acceptable unique WAN Address for the WAN port.
20. Change the default Subnet Mask and Remote Address for WAN to the values you have
assigned to your WAN.
21. Click OK when you are satisfied with your selections.
Chapter 3 - Software Loading and Configuration
Ethernet
Frame Type
Mask
___.___.___.___
TYPE II/SNAP
WAN Port
Mask Remote Address
___.___.___.___
___.___.___.___
