MultiFRAD 3000-Series User Guide
2 Connect the MultiFRAD to the COM port on a PC. Plug the DB-25 male end of your serial
cable from your PC into the Command Port connector on the back of the MultiFRAD.
3 Connect one end of an DB-25 (female) cable to the Ext. Composite Link Connector on the
back of the MultiFRAD (as shown in Figure 3). Connect the other cable end to your T1 CSU/
DSU or compatible link device.
4 If you are connecting to a LAN, make the network connection by connecting an RJ-45 (UTP)
cable to the 10 BASE-T Ethernet connector (shown in Figure 3) on the back of the
MultiFRAD. Connect the other end of the cable to your LAN.
Data Channel Cable Connections
5
Connect one end of a DB-25 cable to one of the data channel connectors on the back of your
MultiFRAD (labeled CHANNEL 1-6 for the FR3060, CHANNEL 1-10 for the FR3100). See Figure
4. Connect the other end of each cable to the channel device. Repeat for each of the up to 6
or 10 channels you are connecting.
Terminal Units
AS400
Statistical Multiplexers

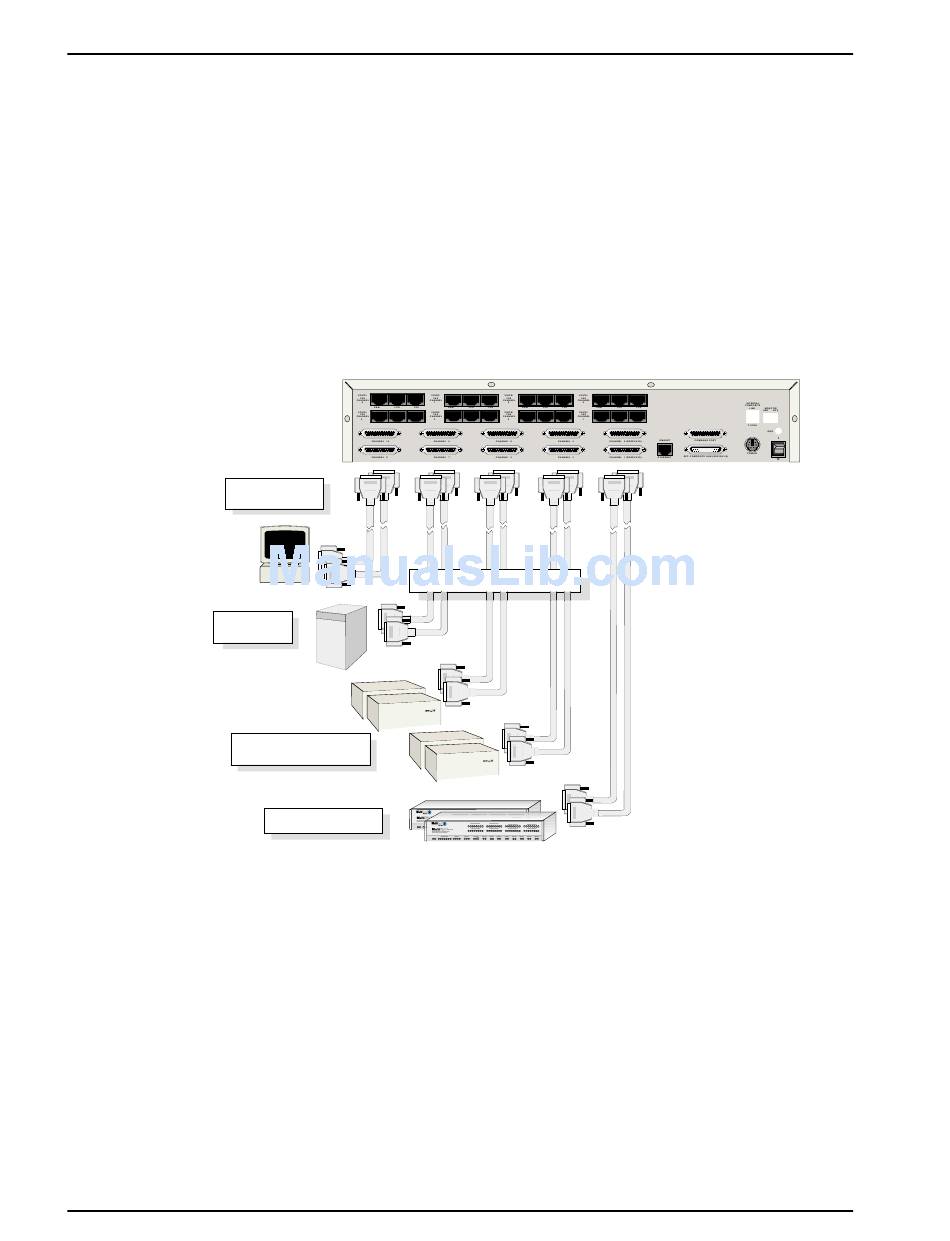

Figure 4. Channel Cable Connections
NOTE: only Channels 1, 2, and the composite link support V.35 and RS-232, all other channels
are RS-232 only. There are shunts inside to select V.35 or RS-232.
16
PC or
Channel Connections
TM
MultiFRAD 3000s
