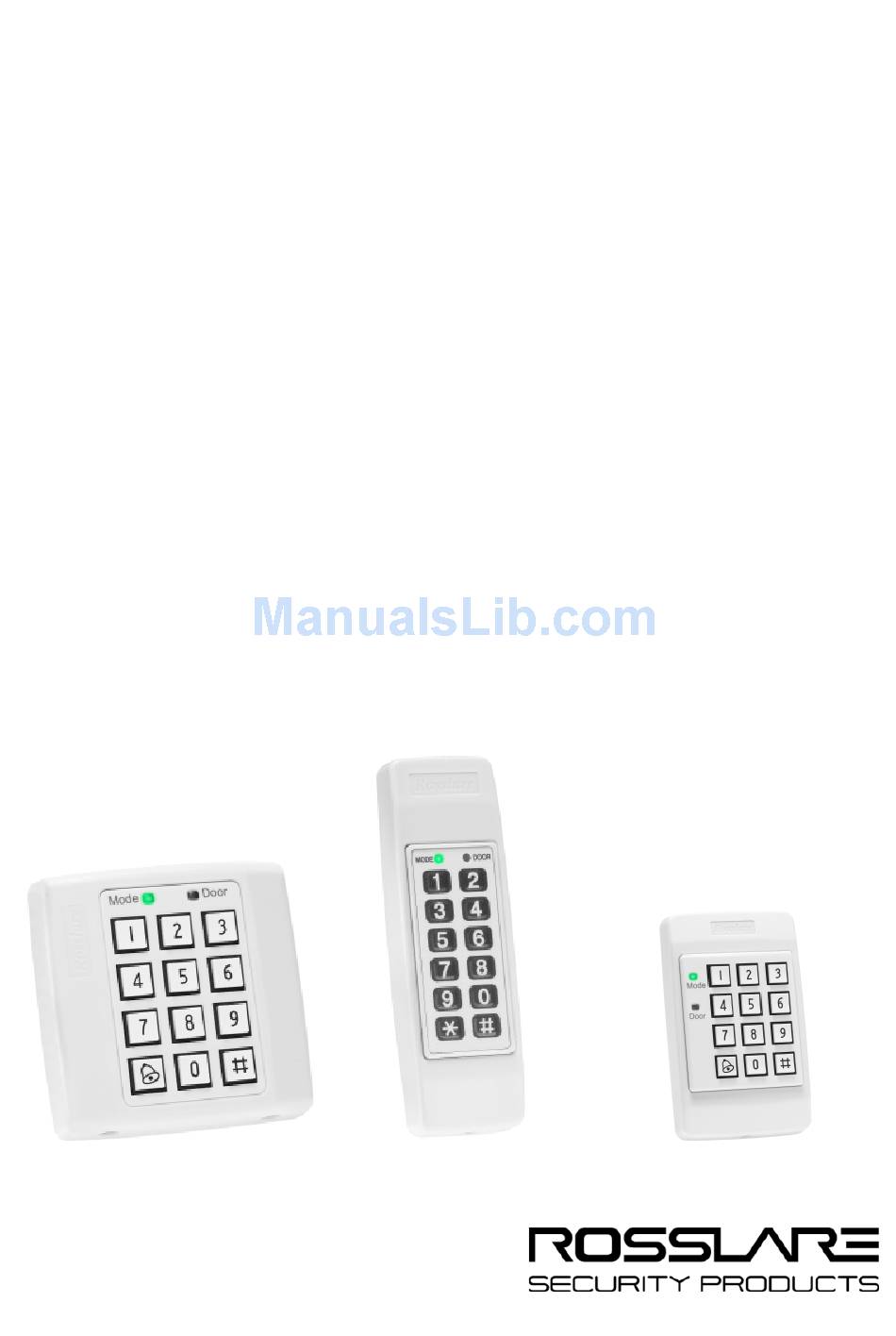

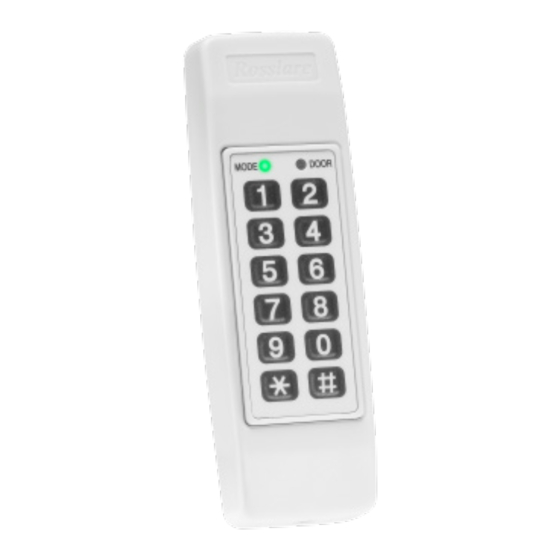

- Page 1 AC-B/C/D3x Family Standalone Access Control Units Installation and Programming Manual AC-B3x AC-C3x AC-D3x...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Additional Equipment .............. 9 Technical Specifications ..........10 Installation ..............12 Mounting ................12 Wiring .................. 14 3.2.1 AC-B3x ..................15 3.2.2 AC-C3x ..................16 3.2.3 AC-D3x ..................17 Normal, Secure, and Master Users ......18 Modes of Operation ..........19 Changing the Modes of Operation ...... - Page 4 Table of Contents 10.1 Entering Programming Mode ..........26 10.2 Exiting Programming Mode ........... 26 10.3 Changing Open Code 1............27 10.4 Changing Open Code 2............28 10.5 Changing the Programming Code .......... 28 10.6 Changing the Normal/Secure Code ........29 10.7 Changing the Normal/Bypass Code and Door Chime Settings ..
- Page 5 Figure 5: AC-C3x – Mounting Holes and Terminal Blocks ........ 14 Figure 6: AC-D3x – Mounting Holes and Terminal Blocks ........ 14 Figure 7: AC-B3x – Wiring the Lock Strike Relay and REX ........ 15 Figure 8: AC-B3x – Wiring the BL-D40 External Sounder ......... 15 Figure 9: AC-C3x –...
-
Page 6: List Of Tables
List of Tables List of Tables Table 1: Programming Menu ................25 AC-B/C/D3x Family Installation and Programming Manual... - Page 7 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. This manual describes the maximum configuration of the system with the ...
-
Page 8: Introduction
Introduction Introduction The AC-B/C/D3x is a family of indoor standalone controllers. The units accept up to 500 users and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. Reader/Controller Types The six types of units described in this manual are: Keypad Type PIN Proximity AC-B31 3X4 Standard... -
Page 9: Equipment
Request to Exit (REX) button – Normally Open Type; switch is closed when pressed. BL-D40 External Sounder (optional) – Provides siren, bell, and chime functions to the controller Other Rosslare accessories can be found at Rosslare's Website: http://www.rosslaresecurity.com AC-B/C/D3x Family Installation and Programming Manual... -
Page 10: Technical Specifications
• Read Range: 90 mm (3.5 in.)* (AC-x32 models) • Modulation: ASK at 125 kHz • Compatible cards: All 26-Bit EM cards Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AC-B/C/D3x Family Installation and Programming Manual... -
Page 11: Mechanical Characteristics
Operating Humidity Range 0 to 95% (non-condensing) Mechanical Characteristics Dimensions AC-B3x: 92 x 92 x 24 mm (3.6 x 3.6 x 0.9 in.) (Length x Width x Depth) AC-C3x: 130 x 42 x 18 mm (5.1 x 1.7 x 0.7 in.) AC-D3x: 122 x 75 x 24 mm (4.8 x 3.0 x 0.9 in.) -
Page 12: Installation
The AC-B/C/D3x is designed to be easily mounted onto a US Gang Box. To mount the controller: 1. Remove the bezel screw from the bottom of the unit (see Figure 1, Figure 2, and Figure 3). Figure 1: AC-B3x – Labeled Diagram AC-B/C/D3x Family Installation and Programming Manual... -
Page 13: Figure 2: Ac-C3X - Labeled Diagram
Figure 3: AC-D3x – Labeled Diagram 2. Screw the controller onto a US Gang Box through the two mounting holes provided (see Figure 4, Figure 5, and Figure 6). Figure 4: AC-B3x – Mounting Holes and Terminal Blocks AC-B/C/D3x Family Installation and Programming Manual... -
Page 14: Wiring
A security screw tool is also provided in the installation kit. Wiring Typical wiring diagrams for the various units are shown in the following subsections. For other wiring diagram examples, refer to the support section of the Rosslare website: http://www.rosslaresecurity.com/. AC-B/C/D3x Family Installation and Programming Manual... -
Page 15: Ac-B3X
Installation 3.2.1 AC-B3x Figure 7: AC-B3x – Wiring the Lock Strike Relay and REX Figure 8: AC-B3x – Wiring the BL-D40 External Sounder AC-B/C/D3x Family Installation and Programming Manual... -
Page 16: Ac-C3X
Installation 3.2.2 AC-C3x Figure 9: AC-C3x – Wiring the Lock Strike Relay and REX Figure 10: AC-C3x – Wiring the BL-D40 External Sounder AC-B/C/D3x Family Installation and Programming Manual... -
Page 17: Ac-D3X
Installation 3.2.3 AC-D3x Figure 11: AC-D3x – Wiring the Lock Strike Relay and REX Figure 12: AC-D3x – Wiring the BL-D40 External Sounder AC-B/C/D3x Family Installation and Programming Manual... -
Page 18: Normal, Secure, And Master Users
Normal, Secure, and Master Users Normal, Secure, and Master Users The controller accepts up to 500 users and provides entry via the use of proximity cards and/or PIN codes. Each user is provided with two code memory slots: Memory Slot 1 (Primary Code) and Memory Slot 2 (Secondary Code). -
Page 19: Modes Of Operation
Modes of Operation Modes of Operation The controllers have three modes of operation: Mode Door Normal mode – Mode LED is green. Green Normal Mode is the default mode. In Normal mode, the door is locked until a Primary Code is presented to the controller. Special codes such as “Open Code 1”... -
Page 20: Changing The Modes Of Operation
Changing the Modes of Operation Changing the Modes of Operation Changing from Normal to Secure Mode The default factory setting for the Normal/Secure Code is 3838. To change from Normal to Secure mode: 1. Enter the 4-digit Normal/Secure code. The Mode LED flashes red. Mode Door 2. -
Page 21: Changing From Normal To Bypass Mode
Changing the Modes of Operation Changing from Normal to Bypass Mode See Section 10.6 to create/modify the Normal/Bypass Code. To change from Normal to By pass mode: 1. Enter the 4-digit Normal/Bypass Code. The Mode LED flashes orange. Mode Door Orange 2. -
Page 22: Rex Button
REX Button REX Button The REX button is used to open the door without the use of a PIN code, and must be located inside the premises to be secured. It is usually located in a convenient location, such as inside the door or at a receptionist's desk. -
Page 23: Case And Back Tampers
Case and Back Tampers Case and Back Tampers If the case of the controller is opened or the controller is removed from the wall, a tamper event is triggered and a coded tamper signal is sent to a BL-D40, PS-x41 Series Power Supply, or PS-x42 Series Power Supply, or to another compatible device. -
Page 24: Bl-D40 External Sounder
The BL-D40 External Sounder is compatible with the AC-x31, AC-x32, AC-x41, and AC-x42 series of standalone controllers. (For a more up- to-date list of compatible products, check the Rosslare website at www.rosslaresecurity.com.) It is designed to operate indoors and is installed within the premises to be secured. -
Page 25: Programming The Ac-B/C/D3X
Programming the AC-B/C/D3x Programming the AC-B/C/D3x Programming the controller is done using the unit's keypad driven Programming Menu System. During the manufacturing process, certain codes and settings are pre- programmed. These settings are called the default factory settings. Table 1 shows the names of all the unit’s menus. It also shows all the default factory codes and settings. -
Page 26: Entering Programming Mode
Programming the AC-B/C/D3x 10.1 Entering Programming Mode To reach the Programming Menu System, first place the unit in Programming mode. To enter Programming mode: 1. Press # for two seconds. Mode Door The Mode LED turns off and the Door LED turns red. -
Page 27: Changing Open Code 1
Programming the AC-B/C/D3x Wrong entries may reset the controller back to Normal mode. While in Programming mode, if no key is pressed for one minute, the unit exits Programming mode and returns to Normal mode. In certain Programming modes, a quick press on # may also return the system to Normal mode. -
Page 28: Changing Open Code 2
Programming the AC-B/C/D3x 10.4 Changing Open Code 2 Open Code 2 is mainly used as a method to quickly test the Lock Strike Relay during installation. The default factory setting for Open Code 2 is 0852. When the first user is added to the controller, the default Open Code 2 is automatically deleted, and is ready for a new Open Code 2 to be re-entered. -
Page 29: Changing The Normal/Secure Code
Programming the AC-B/C/D3x Three beeps are emitted. Mode Door Green The system returns to Normal mode. The Programming code cannot be erased; code 0000 is invalid and does not erase the Programming code. 10.6 Changing the Normal/Secure Code To change the Normal/ Secure code: Mode Door 1. -
Page 30: Setting Fail Safe/Secure Operation, Tamper Siren Time, And Lock Strike Release Time
Programming the AC-B/C/D3x The Mode LED flashes orange. Mode Door Orange Green 3. There are four different ways to program the Normal/Bypass code and door chime: Disable both Bypass Code and the door chime. Enter the code 0000. Disable Bypass Code and enable the ... -
Page 31: Enrolling Primary And Secondary Codes
Programming the AC-B/C/D3x Construct the 4-digit code using the following instructions: First Digit For Fail Secure Operation, the first digit should be 0. For Fail Safe Operation the first digit should be 1. Second Digit Siren time in minutes (1-9, 0-disabled) ... -
Page 32: Secondary Codes
Programming the AC-B/C/D3x 10.9.2 Secondary Codes Secondary codes can only be enrolled to a user slot that already has a Primary Code enrolled, but no Secondary code. Secondary Codes do not have to be unique, meaning that multiple users can all hold the same Secondary code. ... - Page 33 Programming the AC-B/C/D3x 3. Perform one of the following: a. Enter a 3-digit User Slot number between 001 and 500 to indicate the user to whom you want to enroll a Primary or Secondary code. For example, the User Slot 003 represents User #3.
-
Page 34: Enrolling Secondary Codes Using The Code Search Method
Programming the AC-B/C/D3x 10.9.5 Enrolling Secondary Codes Using the Code Search Method The Code Search feature enables you to quickly enroll a Secondary Code to a user who already has a Primary Code. To enroll secondary codes using the Code Search method: Mode Door 1. -
Page 35: Deleting Primary And Secondary Codes
Programming the AC-B/C/D3x 10.10 Deleting Primary and Secondary Codes There are two methods to delete Primary and Secondary codes: the Standard Method and the Code Search method. When deleting a user slot, both the Primary code and the Secondary code are erased. 10.10.1 Deleting Primary and Secondary Codes Using the Standard Method To delete the Primary and Secondary codes using the Standard... -
Page 36: Deleting Primary And Secondary Codes Using The Code Search Method
Programming the AC-B/C/D3x It is recommended that a record be kept of added and deleted users so that it is easier to keep track of which user slots are empty and which user slots are not. 10.10.2 Deleting Primary and Secondary Codes Using the Code Search Method To delete the Primary and Secondary codes using the Code Search Method:... -
Page 37: Return To Factory Default Settings
Programming the AC-B/C/D3x It is recommended that a record be kept of added and deleted users so that it is easier to keep track of which user slots are empty and which user slots are not. 10.11 Return to Factory Default Settings Be very careful before using this command as it erases the entire memory, including all User and Special codes, and returns all codes to their factory default settings. -
Page 38: Replacing A Lost Normal/Secure Code
Programming the AC-B/C/D3x 5. You have 15 seconds to program a new Programming code into the unit using the initial default code 1234 before the controller reverts to the existing code. 10.13 Replacing a Lost Normal/Secure Code To be able to replace lost Normal/Secure code, the controller must be in Secure mode. -
Page 39: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AC-B/C/D3x Family Installation and Programming Manual... - Page 40 +86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
