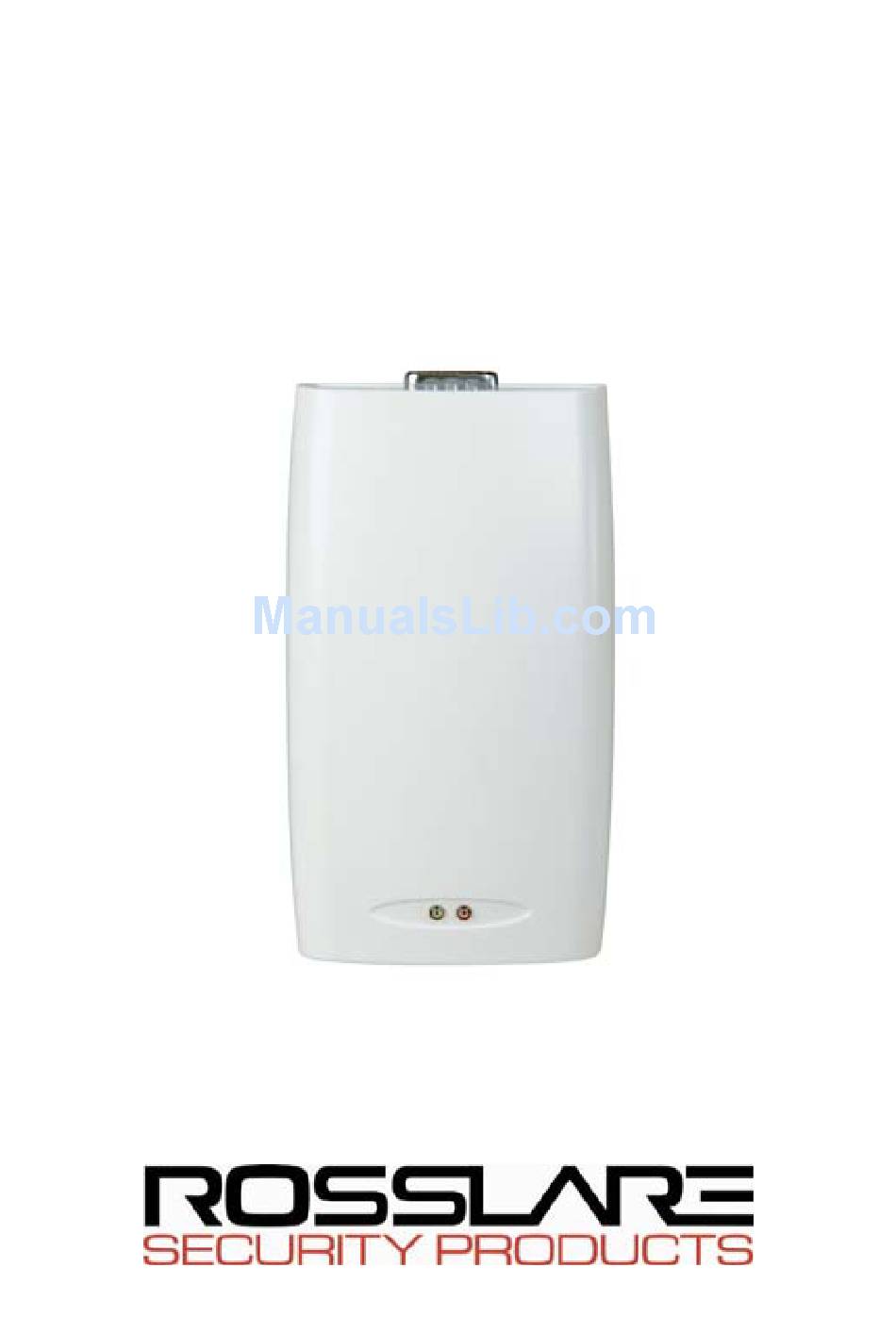

- Page 1 Serial to Ethernet Gateway MD-N32 Installation & Operating Guide November 2005...
-
Page 3: Table Of Contents
Software Requirements ............6 onnecting the MD-N32:............7 3.3.1. Network Connection............. 7 3.3.2. Serial Connection..............7 3.3.3. Power Connection..............7 onfiguring the MD-N32 ............9 3.4.1. Software configuration overview........... 9 3.4.2. Running the Software............15 Appendix A. Limited Warranty .......... 17 Appendix B. -
Page 4: Introduction
AC-215 manual for configuration instructions). Once the module is configured, the information is saved in a non-volatile memory within the module. Both of the MD-N32's (the one connected to the end unit, and the one connected to the computer) need to be configured on the computer. - Page 5 Introduction The MD-N32 has two indication LEDS, the green LED indicates LAN connectivity (Link) and the red LED indicated Power Supply operation (Power). Power Jack RJ-45 Jack Figure 1: Front View of the MD-N32 D9-RS232 Jack Figure 2: Rear View of the MD-N32 This Manual contains the following information: •...
-
Page 6: Specifications
None, XON/XOFF Transmission Speed 1200bps~115Kbps Environmental Characteristics Operating Temp. Range 32°F to 158° F (0°C to 70°C) Operating Humidity 10 – 90% (non-condensing) Dimensions Height x Width x Depth 4.33"x2.48"x1.54" (110mmx63mmx 39mm) Weight 0.203 Lbs. (92g) Page 5 MD-N32 Manual... -
Page 7: Connection And Configuration
Connection and Configuration Connection and Configuration Hardware Requirements The following are the required hardware units used to connect the MD-N32 to either the PC or remote Unit. • Crossed linked RS-232 cable - 9 pin D type female plugs on both sides. -
Page 8: Connecting The Md-N32
Connecting the MD-N32: Before setting – ask your network administrator for two IP addresses, Ports, and subnet masks, one for the MD-N32 unit on the PC end and one for the MD-N32 unit on the Unit end. 3.3.1. Network Connection Connect each of the MD-N32 to the LAN using the LAN cables through the RJ-45 connector on each unit of the MD-N32. - Page 9 Connection and Configuration 3.3.4. Network connection diagrams TCP/IP Network Figure 3 AC-215 network Connection TCP/IP Network Figure 4 Network Connection, all other products MD-N32 Manual Page 8...
-
Page 10: Configuring The Md-N32
The top pane consists of the following: Version The MD-N32 Firmware version displays in the adjacent box. Debug Mode Page 9 MD-N32 Manual... - Page 11 Direct IP Search Marking the checkbox enables you to type a known IP address of one of the MD-N32 units in a text box that will appear below it. Click “Search" to locate and confirm the address. Once located, it will appear in the "Board List".
- Page 12 "Listen Port" here. Subnet- the subnet address will appear here, revise it manually if needed. Gateway- the gateway address will appear here, revise manually if needed. Page 11 MD-N32 Manual...
- Page 13 “Mixed Mode”, which means the unit works both as Server and Client. When the data is sent from a serial device, if socket connection is not established, try to connect to the server IP and port, and resend the data. MD-N32 Manual Page 12...
- Page 14 "board list", the serial information of selected unit is displayed. You can also insert and revise the information, the information displayed is Speed, Databit, Parity, Stop Bit, and Flow. After changes are made, click on the Setting Button for the changes to take affect. Option Tab Page 13 MD-N32 Manual...
- Page 15 0 and 255 byte. Char: Designates a character defining data packets for serial data conversion, in Hexacode. After changes are made, click on the Setting Button for the changes to take affect. MD-N32 Manual Page 14...
-
Page 16: Running The Software
When the search is complete, ensure that you see the correct MD-N32's MAC Addresses in the “Board List”. Unit side Select the MAC Address of the MD-N32 unit connected to the applicable networked unit. In the Network Tab's local IP and Port text box, type the first IP Address and port number (1000 recommended) supplied by your network administrator. - Page 17 12. In Network Mode, select “mixed mode”. 13. In the Serial Tab type the serial configuration (Usually: 9600/8/None/1/None). 14. Click the Setting Button to send the configuration to the unit. Finish 15. Run the applicable application S/W for the networked unit. MD-N32 Manual Page 16...
-
Page 18: Appendix A. Limited Warranty
2 years (24 Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. - Page 19 This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.
-
Page 20: Appendix B. Technical Support
Technical Support Appendix B. Technical Support Asia Pacific, Middle East, Africa Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 E-mail: support.apac@rosslaresecurity.com United States and Canada... - Page 22 www.rosslaresecurity.com...
