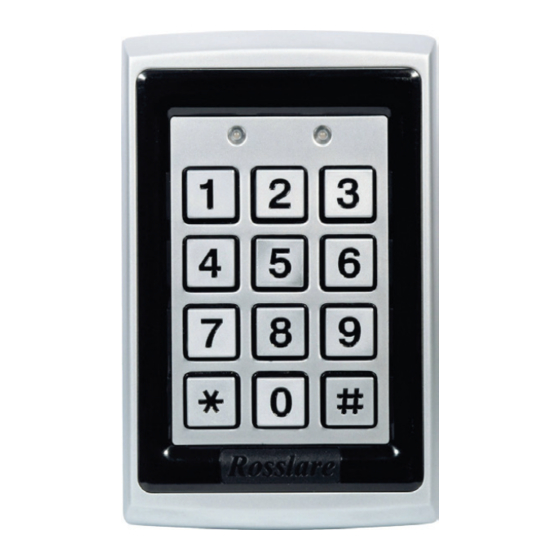

Anti-vandal pin & proximity reader

Advertisement

AY-Q64
Anti-Vandal PIN & Proximity
Reader
Installation and Programming Manual
2012
December

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AY-Q64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rosslare AY-Q64

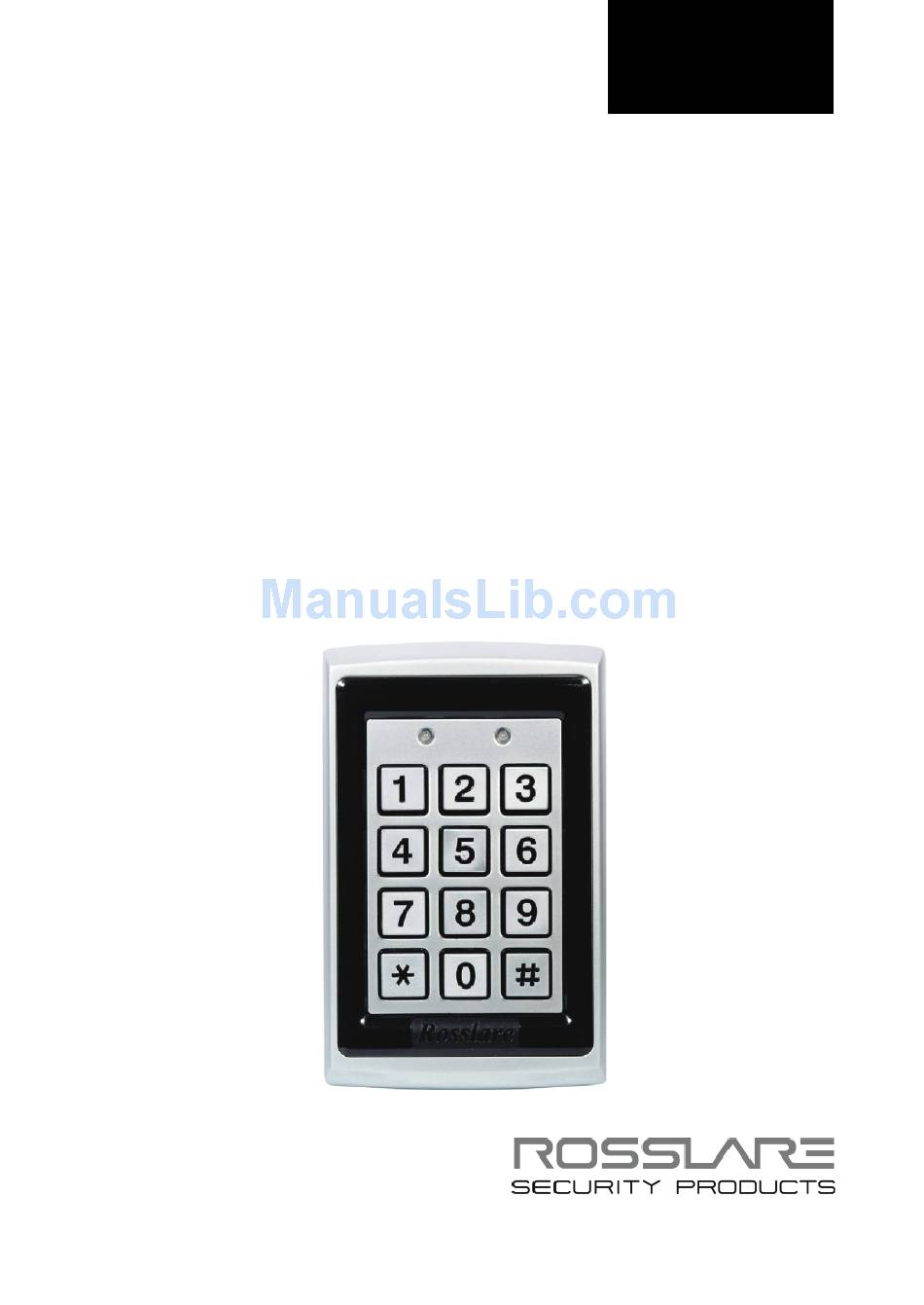

  • Page 1 2012 December AY-Q64 Anti-Vandal PIN & Proximity Reader Installation and Programming Manual...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
  • Page 3: Table Of Contents

    Table of Contents Introduction ..............7 Technical Specifications ..........8 Key Features .............. 10 Installation ..............11 Mounting the AY-Q64 ............11 Wiring the AY-Q64 ............... 12 Transmit Mode ............13 Programming the AY-Q64 ......... 14 Entering Programming Mode ..........15 Exiting Programming Mode ...........
  • Page 4: List Of Figures

    List of Figures List of Figures Figure 1: Drill Holes for AY-Q64 Controller ............11 AY-Q64 Installation and Programming Manual...
  • Page 5: List Of Tables

    List of Tables List of Tables Table 1: Wire Color Guide ................12 Table 2: Programming Menus................14 Table 3: Keypad Transmission Format .............. 17 AY-Q64 Installation and Programming Manual...
  • Page 6 The use of the software associated with the system and/or product, if applicable, is subject to the terms of the license provided as part of the purchase documents. ROSSLARE ENTERPRISES LIMITED and/or its related companies and/or  subsidiaries’ (hereafter:"ROSSLARE") exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
  • Page 7: Introduction

    Introduction Introduction The AY-Q64 is a vandal resistant programmable Wiegand and Clock & Data proximity card and keypad reader. The AY-Q64 supports multiple proximity card and keypad formats providing a high level of compatibility and connectivity with host controllers. The unit can be programmed to output proximity card data in 26-Bit Wiegand, Clock &...
  • Page 8: Technical Specifications

    LED Control Input Dry Contact, N.O. Tamper Output Open Collector, active low, maximum sink current is 32 mA * Measured using Rosslare Proximity Card (AT-14) or equivalent. Range also depends on electrical environment and proximity to metal AY-Q64 Installation and Programming Manual...
  • Page 9 Operating Humidity 0 to 95% (non-condensing) Suitable for outdoor use (meets IP65) Dimensions Length x Width x Depth 4.72 x 3 x 1.0 in. (120 x 76 x 27 mm) Weight 0.9 lb (410 g) AY-Q64 Installation and Programming Manual...
  • Page 10: Key Features

    Programmable Facility code Two tri-colored LEDs  Internal buzzer provides audible interface feedback   Comes with mounting template for easier installation  Comes with installation kit that includes a security screw and a security screw tool AY-Q64 Installation and Programming Manual...
  • Page 11: Installation

    3. Screw the AY-Q64 back cover to its mounting location. 4. Return the front cover of the AY-Q64 to the mounted back plate. 5. Secure the front cover by using the supplied security screw in the installation kit.
  • Page 12: Wiring The Ay-Q64

    Data 0/Data Brown LED control Purple Tamper 3. If the tamper output is being utilized, connect the purple wire to the correct input on the controller. 4. Trim and cover all conductors that are not used. AY-Q64 Installation and Programming Manual...
  • Page 13: Transmit Mode

    Transmit Mode Transmit Mode When the AY-Q64 is in Transmit mode, it is ready to receive data from a presented proximity card or an entered PIN code. Program Transmit When the reader is in Transmit Mode, the Transmit LED is red and the Program LED is off.
  • Page 14: Programming The Ay-Q64

    Programming the AY-Q64 Programming the AY-Q64 Programming the AY-Q64 is done solely via the unit's keypad driven programming menu system. To reach the programming menu system, the AY-Q64 must first be placed into Programming mode (see Section 6.1). During the AY-Q64's manufacturing process, certain codes and settings are pre-programmed.
  • Page 15: Entering Programming Mode

    The Program LED turns off and the Transmit LED turns red. This indicates that the AY-Q64 has returned to Transmit mode. Wrong entries may reset the reader back to Transmit mode. While in Programming mode, if no key is pressed for 30 seconds, the AY-Q64 exits Programming mode and returns to Transmit mode.
  • Page 16: Selecting Keypad Transmission Format

    Programming the AY-Q64 Selecting Keypad Transmission Format The AY-Q64 has eight different keypad transmission selectable formats (see Section 6.3.1). To select a key pad transmission format: Program 1. Enter Programming mode. Transmit Green Press "1" to enter Menu 1. Transmit Program 2.
  • Page 17: Keypad Transmission Format Option Number

    Table 3: Keypad Transmission Format Keypad Transmission Format Option Number Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility code, Wiegand 26-Bit...
  • Page 18 5 seconds, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 4-digit keypad PIN code. (EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP) AY-Q64 Installation and Programming Manual...
  • Page 19 (EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-Bit Facility code A = 24-bit code generated from keyboard AY-Q64 Installation and Programming Manual...
  • Page 20 Q64 keypad while still keeping the proximity card readers 26-Bit Wiegand or Clock & Data formats active. An optional interface board must be used between the AY-Q64 and the host system. Each key press is immediately sent on DATA0 as an ASCII character at a baud rate of 9600 bits per second.
  • Page 21: Selecting Proximity Card Transmission Format

    PIN code. Selecting Proximity Card Transmission Format The AY-Q64 has three different selectable proximity card transmission formats. Option 1 – 26-Bit Wiegand  ...
  • Page 22: Wiegand Card + Pin Transmission Format

    After a card is presented to AY-Q64, the program LED starts to flash in green and indicates that AY-Q64 is waiting for the PIN code. If the entry of 1- to 5-digit keypad PIN code is disturbed and no digit key or...
  • Page 23: Changing The Programming Code

    Programming the AY-Q64 keypad clears the card buffer and the PIN code entry buffer, generates a medium length beep, and is ready to receive a new card. The AY-Q64 outputs card data in Wiegand 26-Bit with the following keypad data: Card Data:...
  • Page 24: Changing The Facility Code

    3. Enter the new 3-digit code you wish to set as the Facility code. One beep is emitted on success. Program The system returns to Transmit mode. Transmit The Program LED turns off and the Transmit LED turns red. AY-Q64 Installation and Programming Manual...
  • Page 25: Return To Factory Default Settings

    If the Programming code is valid, all memory is erased. You hear three beeps and the controller returns to Normal mode. If the Programming code is invalid, you hear a long beep and the controller returns to Normal mode without erasing the memory of the controller AY-Q64 Installation and Programming Manual...
  • Page 26: Replacing A Lost Programming Code

    Programming the AY-Q64 Replacing a lost Programming Code In the event that the Programming code is forgotten, the AY-Q64 may be reprogrammed in the field using the following instructions: 1. Remove power from the reader. 2. Activate the tamper by removing the reader from the wall or removing the reader's case.
  • Page 27: Limited Warranty

    ARRANTY EMEDY OVERAGE In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. Unless otherwise requested by a ROSSLARE representative, return of the failed product(s) is not immediately required.
  • Page 28 ROSSLARE or a ROSSLARE authorized service center. XCLUSIONS AND IMITATIONS ROSSLARE shall not be responsible or liable for any damage or loss resulting from the operation or performance of any Product or any systems in which a Product is incorporated. This warranty shall not...
  • Page 29 In no event shall ROSSLARE be liable for damages in excess of the purchase price of the product, or for any other incidental, consequential or special damages, including but not limited to loss of...
  • Page 30 Tel: +86 755 8610 6842 Canada Fax: +86 755 8610 6101 support.cn@rosslaresecurity.com Rosslare Security Products, Inc. Southlake, TX, USA India Toll Free: +1-866-632-1101 Rosslare Electronics India Pvt Ltd. Local: +1-817-305-0006 Tel/Fax: +91 20 40147830 Fax: +1-817-305-0069 Mobile: +91 9975768824 support.na@rosslaresecurity.com sales.in@rosslaresecurity.com...
