I n s t r u c t i o n M a n u a l
Pass onto user to read and keep for reference

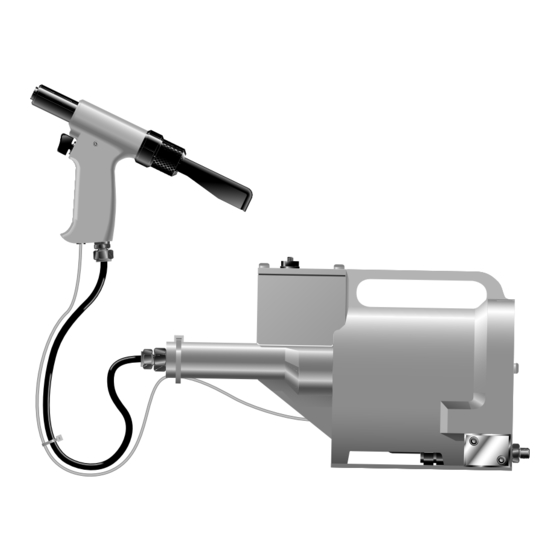

Hydro-Pneumatic Power Tool
0724 type
07241-07242-07243-07244-07245

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 07241 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avdel 07241

Summary of Contents for Avdel 07241

  • Page 1 I n s t r u c t i o n M a n u a l Pass onto user to read and keep for reference Hydro-Pneumatic Power Tool 0724 type 07241-07242-07243-07244-07245...
  • Page 2 AVDEL policy is one of continuous development. Specifications shown in this document may be subject to changes which may be introduced after publication. For the latest information always consult Avdel. S P E C I F I C A T I O N S F O R...

  • Page 3: Table Of Contents

    Specific to 0724 Tool I N T E N T O F U S E General 07241 & 07244 Tool Dimensions / Selection 07242 & 07243 Tool Dimensions / Selection 07245 Tool Dimensions / Selection P U T T I N G I N T O S E R V I C E...
  • Page 4 RECOMMENDED AND SUPPLIED BY AVDEL. ANY MODIFICATION UNDERTAKEN BY THE CUSTOMER TO THE TOOL/MACHINE, NOSE ASSEMBLIES, ACCESSORIES OR ANY EQUIPMENT SUPPLIED BY AVDEL OR THEIR REPRESENTATIVES, SHALL BE THE CUSTOMER'S ENTIRE RESPONSIBILITY. AVDEL WILL BE PLEASED TO ADVISE UPON ANY PROPOSED MODIFICATION.

  • Page 5: General

    07241& 07244 TOOLS MUST BE FITTED WITH AN UNDAMAGED PINTAIL DEFLECTOR OR STEM CATCHER BEFORE OPERATING. IF THE 07241 OR 07244 TOOL IS FITTED WITH A PINTAIL DEFLECTOR AND IS USED IN THE VERTICAL NOSE DOWNWARD POSITION, THE PINTAIL DEFLECTOR SHOULD BE ROTATED UNTIL THE APERTURE IS FACING AWAY FROM THE OPERATOR AND OTHER PERSON(S) WORKING IN THE VICINITY.
  • Page 6 The 07241 and 07244 fitted with pin tail deflectors are the standard tools. A stem catching or full vacuum extraction option is available for the 7241 (see page 11). The 07244 tool has forward stem ejection nose equipment fitted when supplied as a complete tool. It is also possible to order just the base tool part number 07241-00200 which will not be fitted with a nose assembly.
  • Page 7 07244 tools results in forward stem ejection. Use the selection charts below and opposite to select a complete 07241 or 02744 tool which will include the correct nose assembly for a selected fastener.
  • Page 8 1 /8 Standard " Stainless Steel BE11 & BE61 5 /32 Standard 7.87 3.81 .310 .150 07345-03200 07242-00006 " Al. Alloy AVDEL 1 /8 Standard 5.08 1.17 .200 .046 07345-03300 07242-00014 Snap head Al. Alloy oversize Standard 5.08 1.17 .200 .046...
  • Page 9 1 /8 Standard " Stainless Steel BE11 & BE61 5 /32 Standard 7.87 3.81 .310 .150 07346-03200 07243-00006 " Al. Alloy AVDEL 1 /8 Standard 5.08 1.17 .200 .046 07346-03300 07243-00014 Snap head Al. Alloy oversize Standard 5.08 1.17 .200 .046...
  • Page 10 07245 - VACUUM EXTRACTION The 07245 fitted with both vacuum extraction and a stem catcher unit is fitted with a fixed straight nose assembly for use where access is unrestricted. Use the selection chart, opposite, to select a complete 07245 tool which will include the correct nose assembly for a selected fastener. For details of Nose Assemblies see pages 12 &...
  • Page 11 0 7 2 4 5 - 0 0 0 2 7 " St.Steel & Titanium .130 0 7 2 4 1 - 0 2 2 0 0 AVDEL 1 /8 Standard 0 7 2 4 5 - 0 0 0 0 3 Snap head Al.

  • Page 12: Air Supply

    U T T I N G I N T O S E R V I C E A I R S U P P L Y All tools are operated with compressed air at an optimum pressure of 5.5 bar. We recommend the use of pressure regulators and automatic oiling/filtering systems on the main air supply.

  • Page 13: Accessories

    Part number: 07241-08800 The stem catcher MUST be emptied frequently. (approx. half full or every 120 placings) There is a conversion kit, part number 07241-09600 for use on 07241-00200 base tools to convert to 07245 vacuum extraction tool. VACUUM EXTRACTION...

  • Page 14: Components

    O S E A S S E M B L I E S There are three types of nose assemblies which are used with the 0724 type of tooling and three base tools (07241-00200, 07242-00200 & 07245-00200). The applied combination produces five models: 07241, 07244, 07242, 07243 and 07245. If you have purchased a complete tool, it will already be fitted with the correct nose assembly for your fastener.

  • Page 15: Components

    07241 & 07244 NOSE ASSEMBLY COMPONENTS Each nose assembly represents a unique assembly of components which can be ordered individually. Component numbers refer to the illustration on the opposite page. We recommend some stock as items will need regular replacement. Read the Nose Assemblies servicing instructions opposite carefully.
  • Page 16 12. We recommend some stock as items will need regular replacement. Read the Nose Assemblies servicing instructions (page 16) carefully. All nose assemblies also include a locking ring part number 07340-00327 (see illustration page 12). 07245 NOSE ASSY 07241-02100 07340-02805 07340-02804 e 07340-00304...
  • Page 17 0 7 2 4 2 & 0 7 2 4 3 M O D E L S As described on pages 6 and 7 the fitting of a straight swivel nose assembly to a 07242-00200 base tool will create a 07242 tool model and the fitting of a right-angle swivel nose assembly to the same base tool will create a 07243 tool model.

  • Page 18: Servicing Instructions

    SERVICING INSTRUCTIONS Nose assemblies should be serviced at weekly intervals. Item numbers refer to both illustrations on page 15 and opposite. ■ Remove the complete nose assembly using the reverse procedure to the ‘Fitting instructions’. ■ If guard 1 is at all damaged it must be replaced by a new one.

  • Page 19: Regular Servicing

    E R V I C I N G T H E T O O L Regular servicing should be carried out and a comprehensive inspection performed annually or every 500000 cycles, whichever is sooner. I M P O R T A N T The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel.

  • Page 20: Service Kit

    Grease can be ordered as a single item, the part number is shown in the service kit below. M O L Y L I T H I U M G R E A S E 3 7 5 3 S A F E T Y D A T A FIRE FIRST AID...

  • Page 21: Tool General Assembly & Parts Lists

    PISTON & HEAD ASSEMBLY ■ On 07241 tool unscrew and remove end cap 11 together with pin tail deflector 26. If fitted with collector bottle option, remove bottle by unscrewing the retaining nut inside the bottle using spanner*. ■...
  • Page 22 I M P O R T A N T Check the tool against daily and weekly servicing. Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. * refers to items included in the Avdel service kit. For complete list see page 18.
  • Page 23 If the pipe connection to the pilot assembly is damaged, replace the plastic collet 70 and lift out the ‘O’ ring from the cartridge. Fit new ‘O’ ring 71 and insert plastic collet 70 into the cartridge. * refers to items included in the Avdel service kit. For complete list see page 18.
  • Page 24 GENERAL ASSEMBLY OF BASE TOOLS (MODELS 07241-00200/07242-00200/07245-00200) SECTION 'A'-'A' 7242 7241 7245...
  • Page 25 07241-00200 PARTS LIST ITEM PART Nº DESCRIPTION QTY SPARES ITEM PART Nº DESCRIPTION QTY SPARES 07241-00600 JAW SPREADER ASSEMBLY 07005-00406 CONNECTOR 07003-00156 WIPER RING 07005-00599 'O' RING 07003-00193 BACK UP RING 07241-00700 HANDLE ASSEMBLY 07003-00187 'O' RING 07125-00215 SPRING 07003-00184 'O' RING...
  • Page 26 GENERAL ASSEMBLY OF INTENSIFIER 07240-00200 / 07246-00200 10 11 12 13 14 15 VIEW 'B' (VACUUM EXTRACTION) 07246-00200 VIEW 'B' 07240-00200 INTERFACE 'O' RINGS AND SCREWS VIEW 'A'...
  • Page 27 SCREW LOCATION WASHER 07005-00598 PLASTIC COLLET LOCATION WASHER 07005-00599 'O' RING 07003-00178 'O' RING CARTRIDGE * Supplied in spares kit only, part number 07005-01538, for item 35. Available from Avdel Systems Ltd. Other components listed are not supplied as spares.
  • Page 28 R I M I N G Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. It may also be necessary to restore the full stroke after considerable use, when the stroke may be reduced and rivets are not fully placed by one operation of the trigger. O I L D E T A I L S The recommended oil for priming is Hyspin VG32 available in 0.5l (part number 07992-00002) or one gallon containers (part number...
  • Page 29 Refill the intensifier unit oil reservoir with Hyspin VG 32 priming fluid. ■ Cycle the tool until any air bubbles present are expelled from the oil into the oil reservoir. * refers to items included in the Avdel service kit. For complete list see page 18.
  • Page 30 A U L T D I A G N O S I S F A U L T D I A G N O S I S T A B L E SYMPTOM POSSIBLE CAUSE REMEDY ➝ Low air pressure. ➝...
  • Page 31 Engineered Fastening and Assembly Systems Declaration of Conformity Avdel UK Limited, Mundells, Welwyn Garden City, Herts, AL7 1EZ declare under our sole responsibility that the product type 0724 Serial Nº ..........to which this declaration relates is in conformity with the following standards or other formative documents...
  • Page 32 Tel: +82 31 798 6340 Email: info@acument.com.au Email: AvdelDeutschland@acument.com Fax: +82 31 798 6342 Email: info@acumentkorea.com CANADA ITALY Avdel Canada, a Division of Acument Avdel Italia S.r.l. SPAIN Canada Limited Viale Lombardia 51/53 Avdel Spain S.A. 87 Disco Road 20047 Brugherio (MI)
